2008 Haas TL-2
No longer available

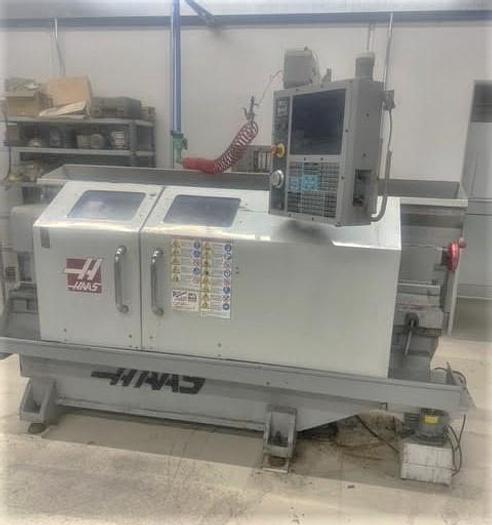

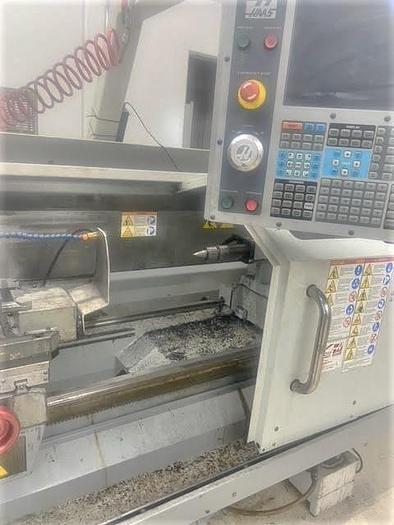

2008 Haas TL-2
$34,000 (USD)
Location:Alberta, Canada
Description

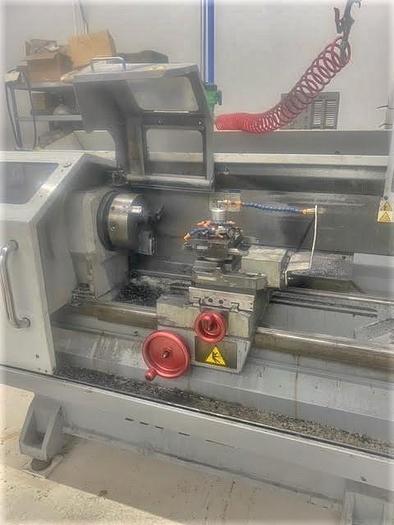

10" 3 Jaw Manual Chuck
4 Station Auto Turret
Tailstock
Steady Rest
Rigid Tapping
Visual Quick Code
Larger A2-6" Spindle Nose Option
Manual Hand Wheels
Operator Splatter Shield Coolant System with Tank & Pump Integral Chip-Flow Channel USB Port Interface RS 232 Port Interface Haas Intuitive Turning System Vector Drive Spindle
Currently wired 3 phase power, but capable of single phase as well
Power On Hours 16,000
Estimated Cut Time 6,500 Hours
Specifications
| Manufacturer | Haas |
| Model | TL-2 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118330 |

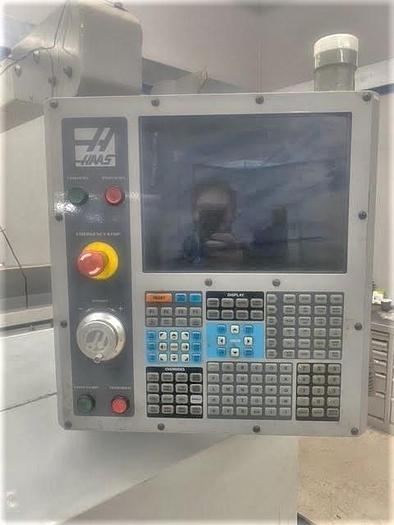

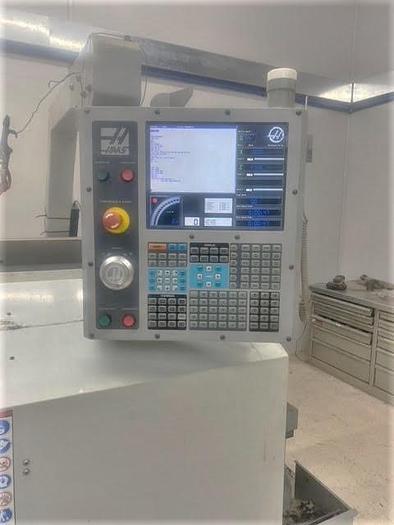

| Control | Haas CNC Control |
| Chuck Size | 10" 3 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 48" |
| X-axis travel | 8" |
| Z-Axis Travel | 48" |
| Spindle Nose / Spindle Bore | A2-6" / 3.00 |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Station Auto Turret |
| Rapid Traverse Rates X/Z | 450 IPM / 450 IPM |
| Machine Dimensions | 100" x 55" x 80" |
| Machine Weight | 5,000 lbs. |
