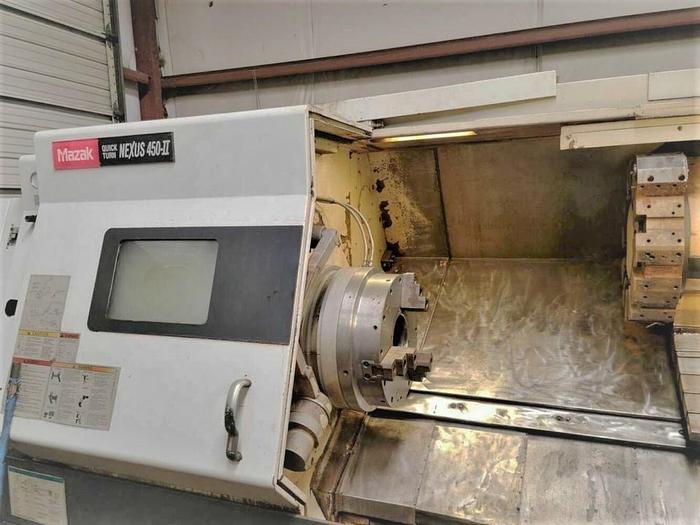

2008 Mazak Nexus QTN 450-II/1000

2008 Mazak Nexus QTN 450-II/1000

$104,950 (USD)

Texas

orCall (863) 439-6066

Description

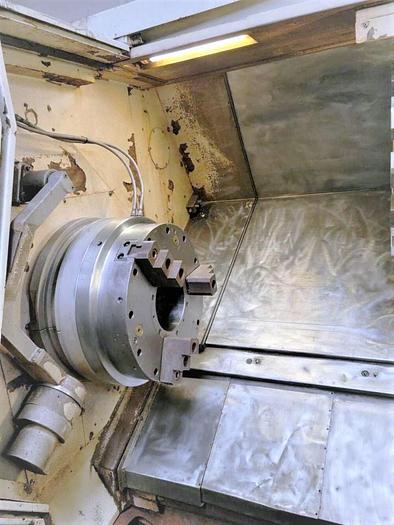

20" 3 Jaw ATS Air Chuck on Front of Spindle

20" Bison Scroll Chuck on Rear of Spindle

Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface

RS 232 Port Interface User Macro Multitap Transformer Tool Path Storage Windows XP Operation System All Available Manuals All Available Tooling

Specifications

ManufacturerMazak
ModelNexus QTN 450-II/1000
Year2008
ConditionUsed
Stock Number118327

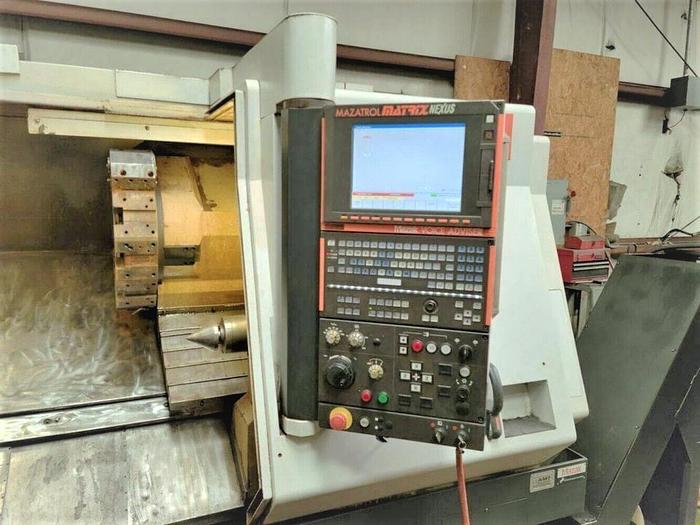

ControlMazatrol Matrix Nexus
Chuck Size20" Air Chuck
Maximum Swing33.268"
Maximum Turning Diameter22.835"
Maximum Turning Length40.3"
Maximum Bar Capacity7.28"
X-Axis Travel12.13"
Z-Axis Travel42.13"
Spindle Nose / Spindle BoreA2-15" / 7.28"
Spindle Speeds2,000 RPM - Geared
Spindle Motor50 HP
Number of Turret Positions12 Position Turret
Rapid Traverse Rates1181 IPM
Tailstock Body Travel / Center40.375" / MT #5
Machine Dimensions176"x90"x80"
Machine Weight21,283 lbs.
