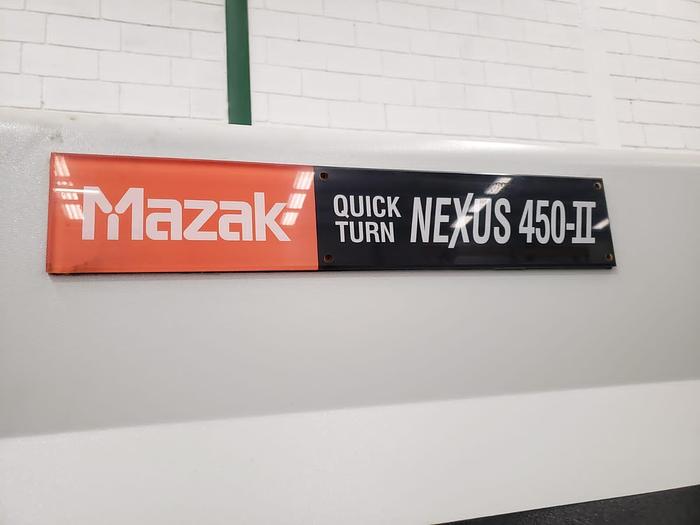

2010 Mazak Nexus QTN 450-II/1000

2010 Mazak Nexus QTN 450-II/1000

$99,500 (USD)

Mexico

orCall (863) 439-6066

Description

21" 3 Jaw Hydraulic Chuck (to be installed with actuator shortly)

(Seller can offer a 21" 3 Jaw Manual Chuck which would allow for full 7.1" bar capacity after hydraulic draw tube is removed as alternative)

Automatic Tool Eye Programmable Tailstock

EIA/ISO Programming 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface

RS 232 Port Interface User Macro Multitap Transformer

Tool Path Storage Windows XP Operation System All Available Manuals All Available Tooling


**This machine is currently without the coolant tank and pump and chip conveyor, though they are being accessed for the machine, availability could be end 2022 due to this.

Specifications

ManufacturerMazak
ModelNexus QTN 450-II/1000
Year2010
ConditionUsed
Stock Number118326

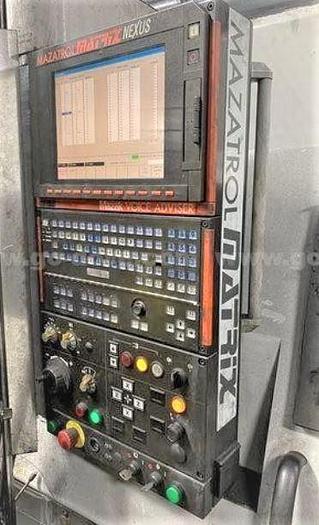

ControlMazatrol Matrix Nexus 2
Chuck Size21" 3 Jaw Hydraulic Chuck
Maximum Swing33.268"
Maximum Turning Diameter22.835"
Maximum Turning Length40.3"
Maximum Bar Capacity6.5"
X-Axis Travel12.13"
Z-Axis Travel42.13"

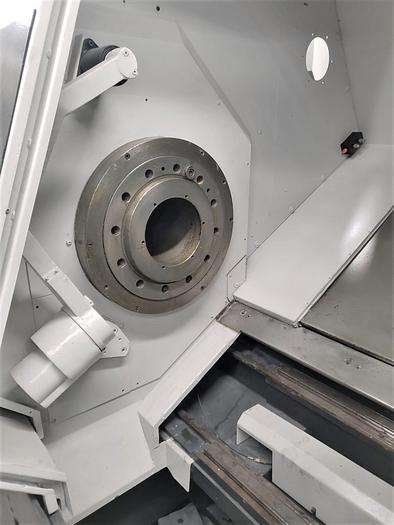

Spindle Nose / Spindle BoreA2-15" / 7.1"
Spindle Speeds2,000 RPM - Geared
Spindle Motor50 HP

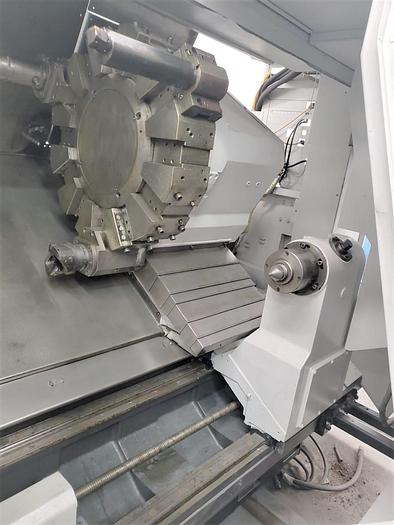

Number of Turret Positions12 Position Turret
Rapid Traverse Rates1181 IPM
Tailstock Body Travel / Center40.375" / MT #5
Machine Dimensions178"x99"x84"
Machine Weight21,283 lbs.
