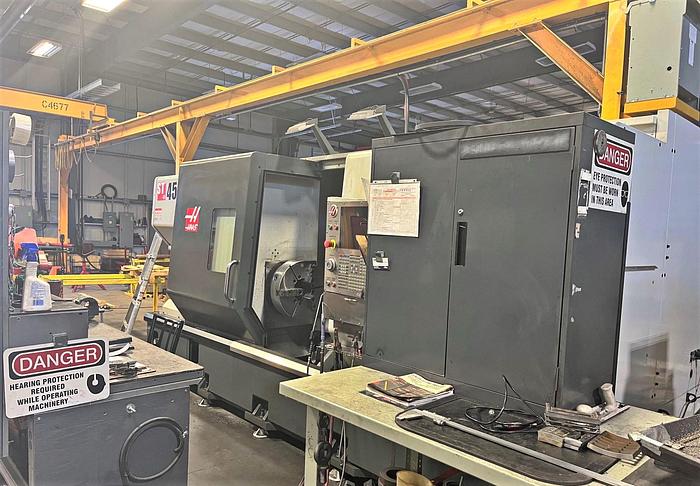

2018 Haas ST-45
No longer available
2018 Haas ST-45
$149,500 (USD)
Location:Alberta, Canada
Description

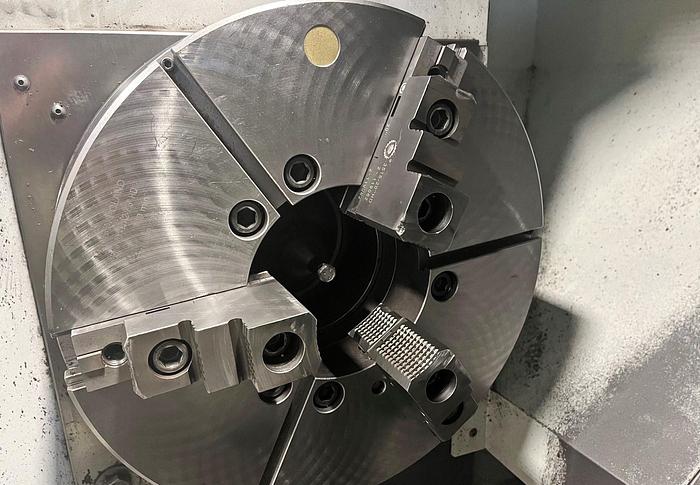

20" 3 Jaw Front Manual Chuck

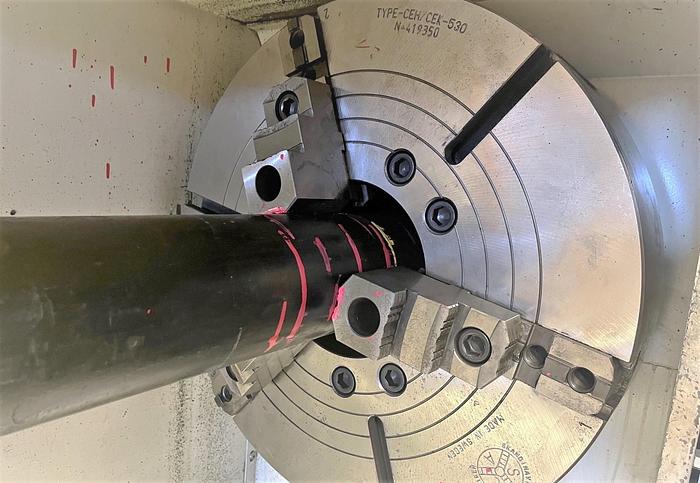

20" 3 Jaw Rear Manual Chuck 7" Bar Capacity

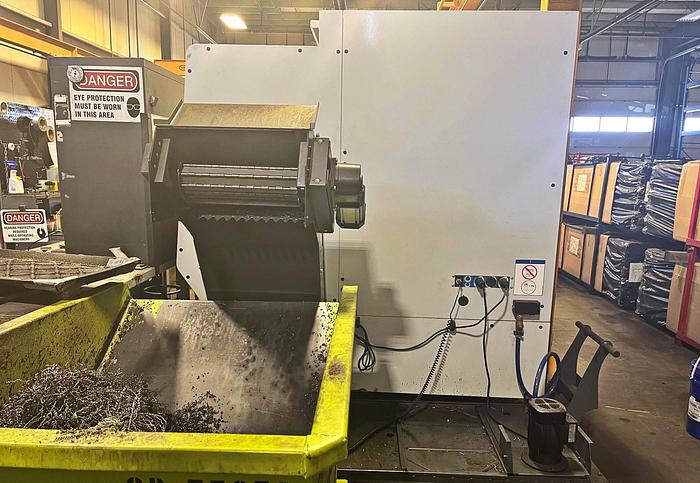

Chip Conveyor - Belt Style
High Intensity Lighting Fully Programmable Tailstock 2 Speed Geared Headstock
Rigid Tapping
Ethernet Interface
WiFi for Haas USB Port Interface RS 232 Port Interface Rigid Tapping 15" Color LCD Monitor Miscellaneous Tool Blocks
**ONLY 900 HOURS**
Specifications
| Manufacturer | Haas |
| Model | ST-45 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 118325 |

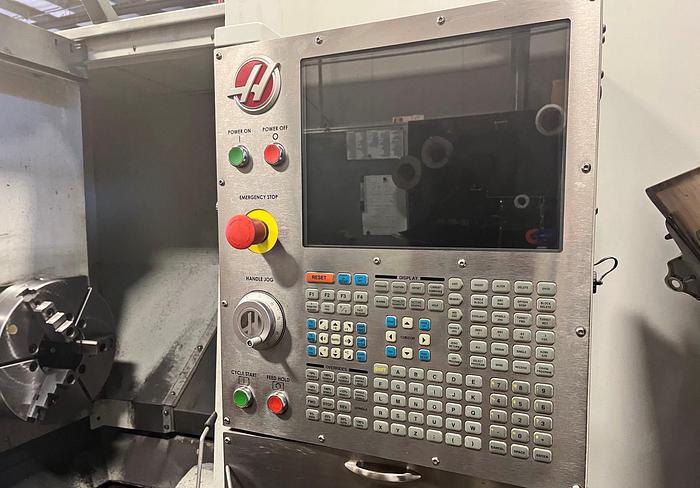

| Control | Haas CNC Control |
| Chuck Size | (2) 20" 3-Jaw Manual Chucks |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25.5" |
| Distance Between Centers | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-11" / 7" / 7" |
| Spindle Speed | 1,400 RPM |
| Spindle Motor | 40 HP |

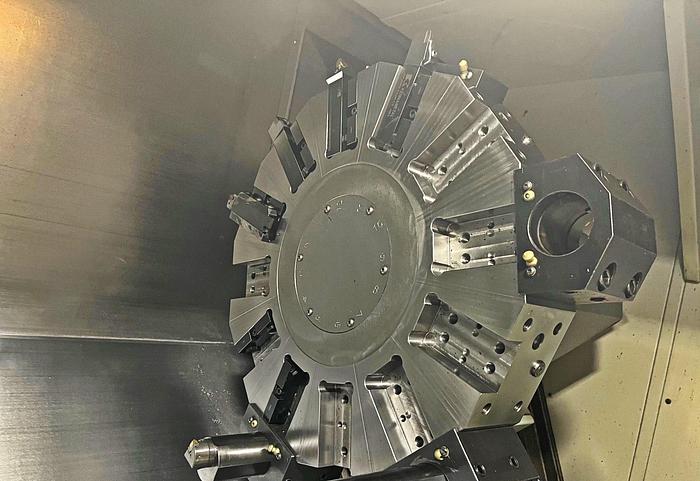

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 150"x77"x74" |
| Machine Weight | 27,000 lbs |
