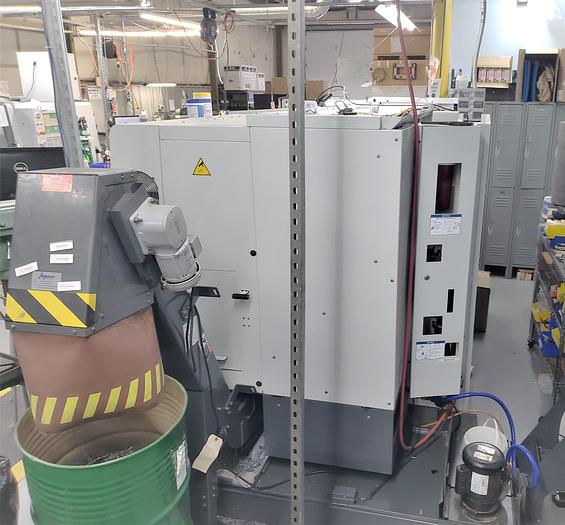

2011 Haas DS-30SSY Twin Spindle Lathe with milling, Y axis, subspindle
No longer available
2011 Haas DS-30SSY Twin Spindle Lathe with milling, Y axis, subspindle
$79,500 (USD)
New York, NY
Description
Y-Axis Capability
Live Milling/Drilling Capability
Full C Axis Spindle Rotation
Subspindle
10” 3-Jaw Hydraulic Chuck on Main Spindle
8" 3-Jaw Hydraulic Chuck on Subspindle
Tool Presetter
Parts Catcher
Chip Conveyor
Spindle Orientation
Rigid Tapping
USB Port Interface
RS 232 Port Interface
Coolant Tank with Pump
Wired 195-260V Electrics
Miscellaneous Static Tooling
(4) Axis Live Tool Holders
(5) Dual Radial Live Tool Holders
(1) Single Radial Live Tool Holder
*Manufactured New in August of 2011
Specifications
Manufacturer | Haas |
Model | DS-30SSY Twin Spindle Lathe with milling, Y axis, subspindle |
Year | 2011 |
Condition | Used |
Stock Number | 118323 |
Chuck Sizes Main / Subspindle | 10" / 8" Hyd Chucks |
Maximum Swing over Bed | 31.75" |
Maximum Cutting Diameter | 16" |
Maximum Cutting Length | 23" |
X-Axis Travel | 12.5" |
Y-Axis Travel | +/- 2" |
Z-Axis Travel | 23" |
C-Axis Rotation | 0.001 Degree |
Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
Spindle Motor | 30 HP |
Spindle Speeds | 4,800 RPM |
Subspindle Nose / Bore / Bar Capcity | A2-5" / 2.44" / 2" |
Subspindle Motor | 20 HP |
Subspindle Speed | 4,800 RPM |
Turret Type | 24 Positions 12 BOT / 12 VDI Positions |
Rotary Tool Speed / Rotary Motor | 3,000 RPM / 5 HP |
Rapid Traverse Rates X, Y / Z | 472 IPM / 1,200 IPM |
Machine Dimensions LxWxH | NA |
Machine Weight | 14,600 lbs |
