2008 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool
No longer available
2008 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool
$79,500 (USD)
Location:New Jersey
Description

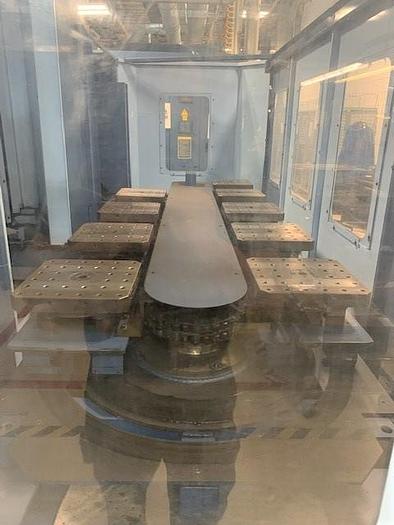

11 Pallet Rotary Type Changer System
Single Loading Station

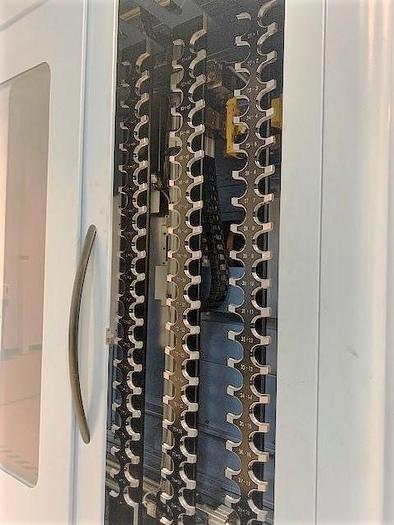

120 Station Tool Changer (includes (3) 40 Tool Hives, expandable to a 320 Position ATC with up to (5) additional Hives) Full 4th Axis Rotary Table
5th Axis Capable Prepped for 1000 PSI High Pressure Coolant Through Spindle
Rigid Tapping Remote Jog Handle
Spindle Oil Chiller
RS-232C Port for DNC Interface
**MACHINE DOES NOT INCLUDE A CHIP CONVEYOR OR COOLANT SYSTEM, AS IT HAD BEEN CONNECTED TO AN INTERNAL SHOP FLOOR CHIP/COOLANT SYSTEM**
Specifications
| Manufacturer | Matsuura |
| Model | 2008 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118321 |
| Control | Matsuura G-Tech 30i |
| Pallet Size / Number of Pallets | 11.81" x 11.81" / 11 Pallet Pool |
| Table Indexing | 0.001 Degree Indexing - Full 4th Axis |
| Maximum Table Load | 550 lbs. |
| Maximum Workpiece Diameter / Height | 20.86" x 29.92" |
| X-Axis Travel | 19.68" |
| Y-Axis Travel | 22.04" |
| Z-Axis Travel | 19.68" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 20 HP |
| Pallet Center to Spindle Face | 3.15" - 22.83" |
| Pallet Surface to Spindle Center | 4.72" - 24.41" |
| Number of Tool Positions | 120 Station Tool Changer (includes (3) 40 Tool Hives, expandable to 320 ATC) |
| Maximum Tool Diameter / Length / Weight | 5.9" / 11.81" / 17.6 lbs. |
| Rapid Traverse Rates | 2362 IPM |
| Machine Dimensions | 146" x 110" x 124" |
| Machine Weight | 22,500 lbs. |
