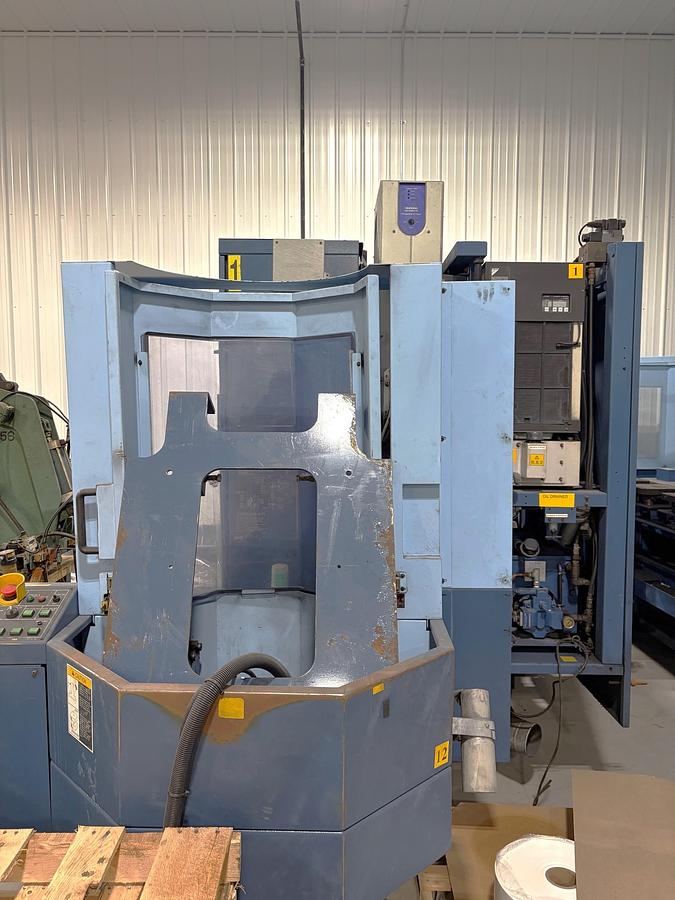

2007 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool, Full 4th, 40 Station ATC, NEW Chip Conveyor & Coolant Tank
2007 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool, Full 4th, 40 Station ATC, NEW Chip Conveyor & Coolant Tank
$39,500 (USD)
Location:Michigan
or
Call (863) 439-6066
Description

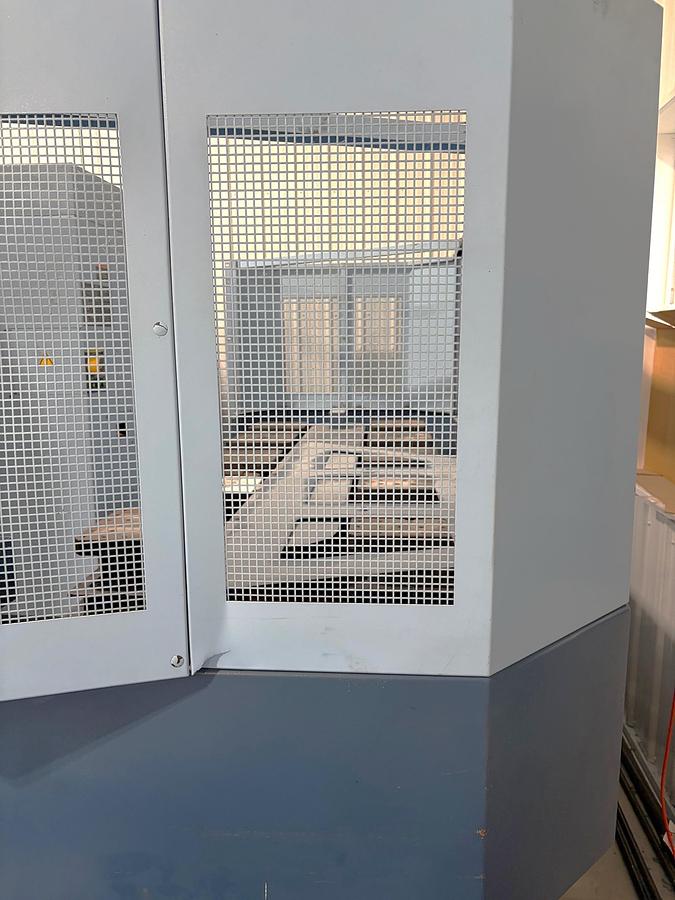

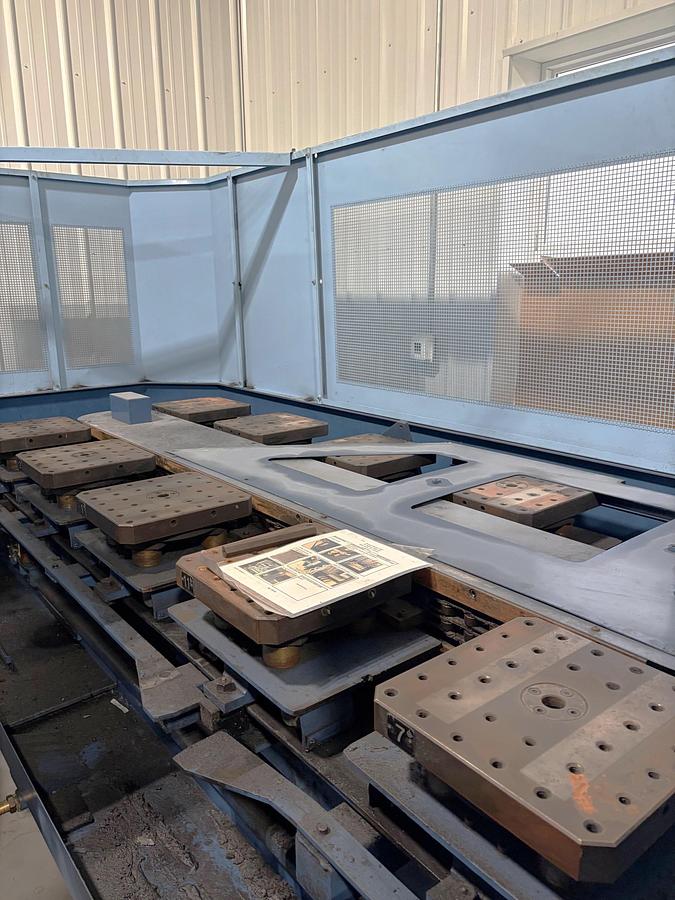

11 Pallet Rotary Type Changer System
Single Loading Station
40 Station Tool Changere to a 320 Position ATC with up to (5) additional Hives) Full 4th Axis Rotary Table
Plumbed for High Pressure Coolant - Needs Pumps

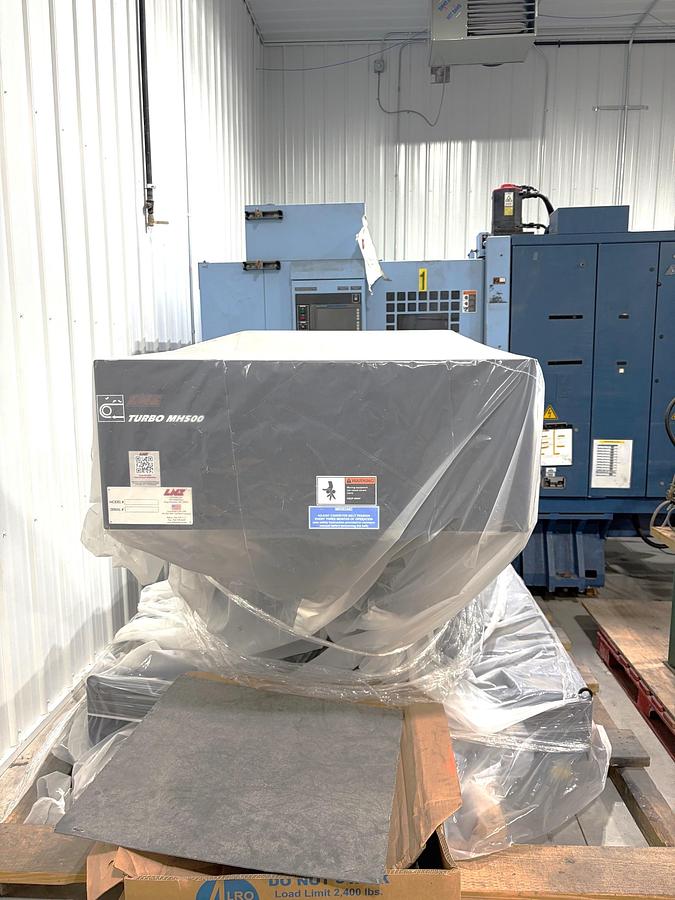

Chip Conveyor - Brand New

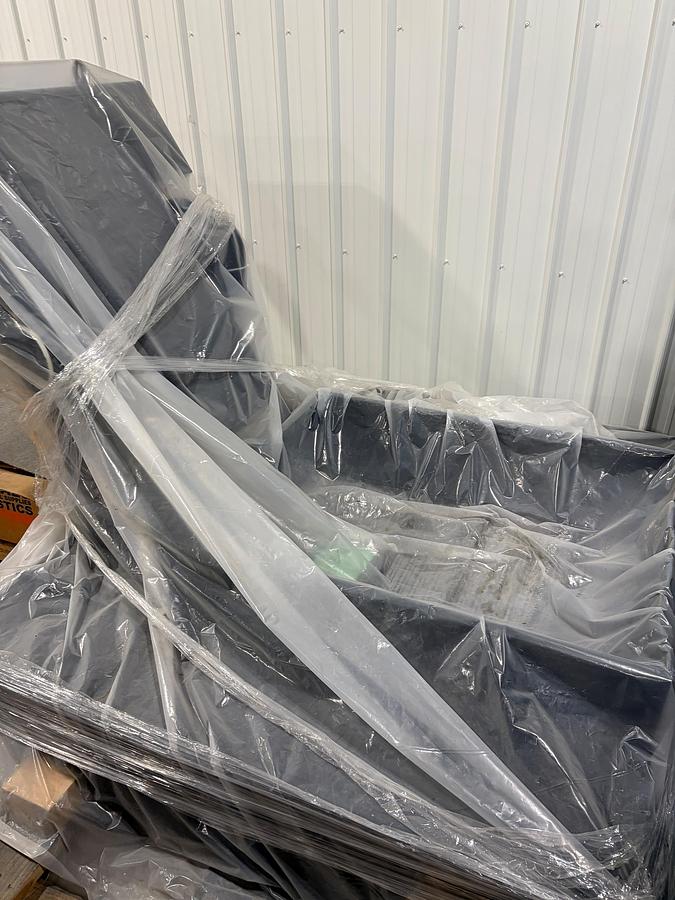

Coolant Tank - Brand New, does not include coolant pumps (prior owner had a centralized chip/coolant system and therefore chip conveyor and coolant tank had to be purchased by current owner, however machine was never put into service and they never purchased coolant pumps for the machine)
Rigid Tapping Remote Jog Handle

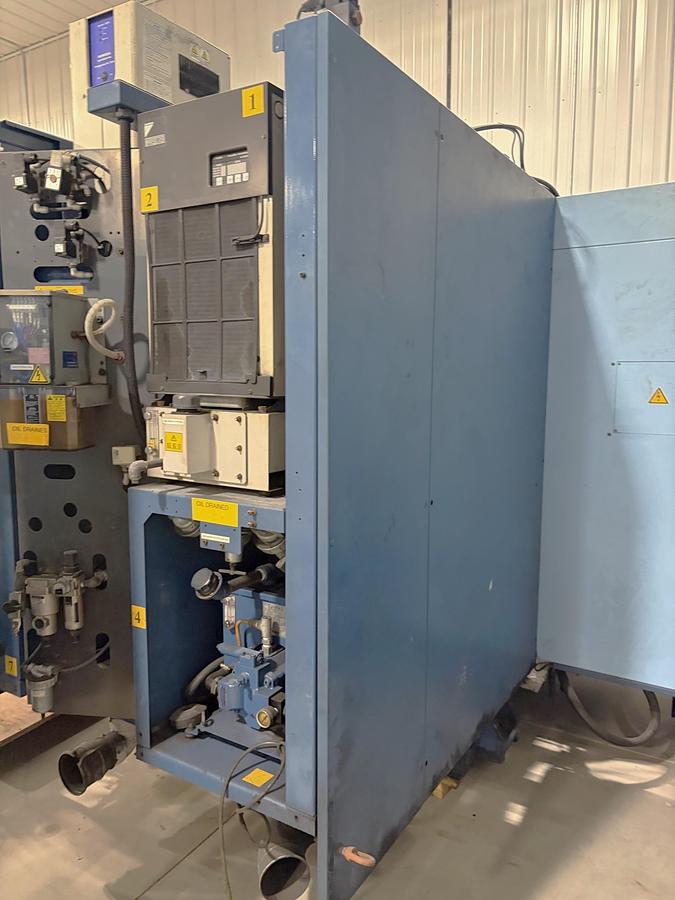

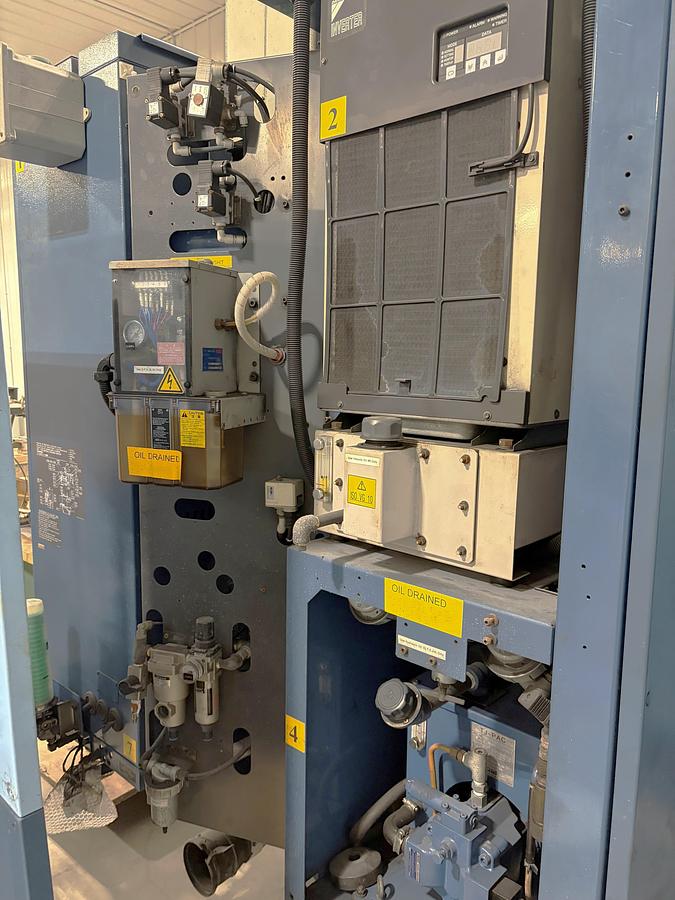

Spindle Oil Chiller
RS-232C Port for DNC Interface

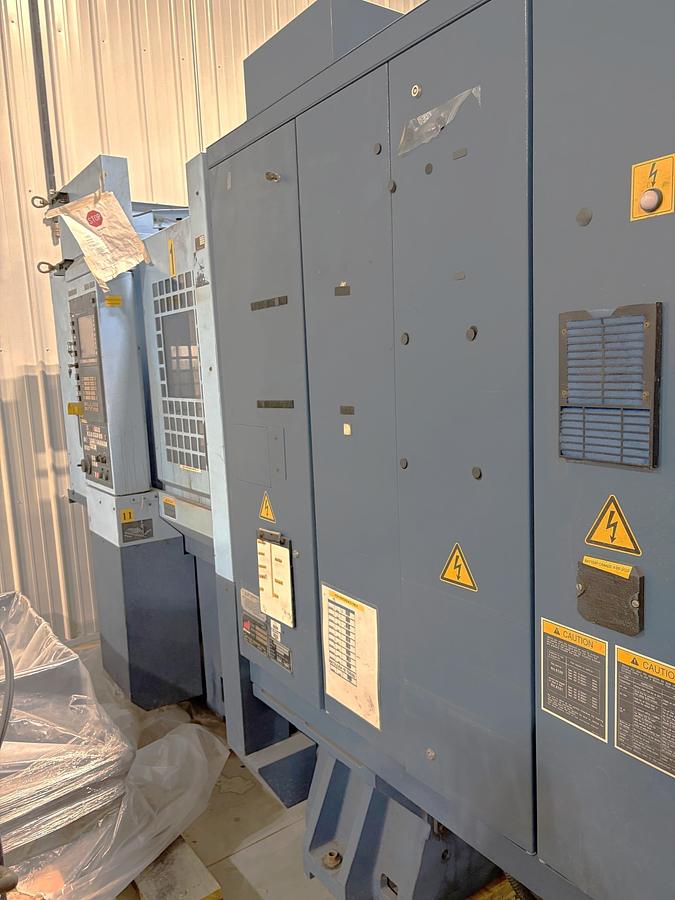

Wired 200/220V Electrics
Specifications
| Manufacturer | Matsuura |
| Model | 2007 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118321 |

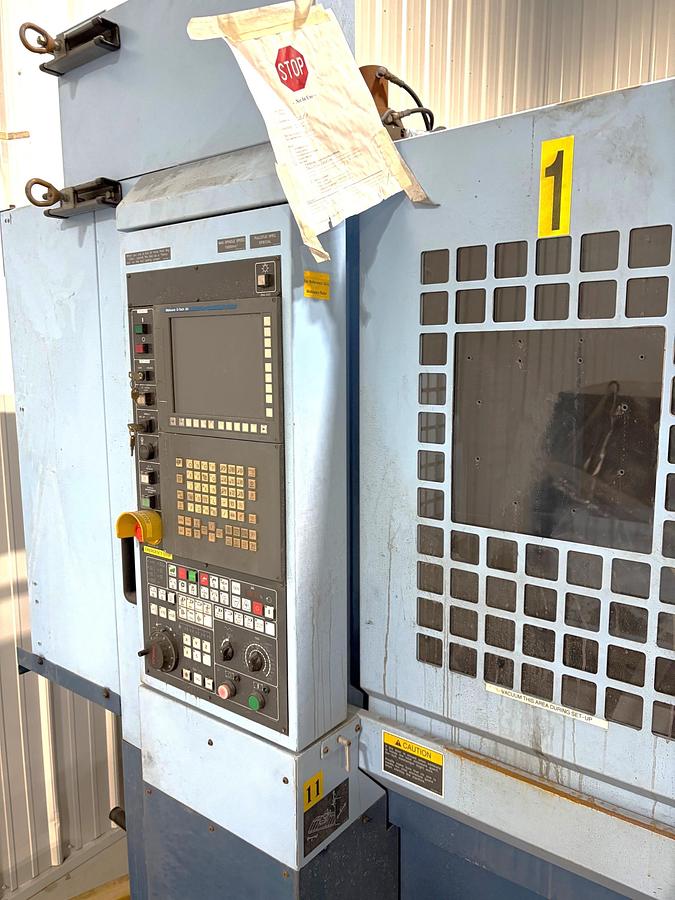

| Control | Matsuura G-Tech 30i |
| Pallet Size / Number of Pallets | 11.81" x 11.81" / 11 Pallet Pool |
| Table Indexing | 0.001 Degree Indexing - Full 4th Axis |
| Maximum Table Load | 550 lbs. |
| Maximum Workpiece Diameter / Height | 20.86" x 29.92" |
| X-Axis Travel | 19.68" |
| Y-Axis Travel | 22.04" |
| Z-Axis Travel | 19.68" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 20 HP |
| Pallet Center to Spindle Face | 3.15" - 22.83" |
| Pallet Surface to Spindle Center | 4.72" - 24.41" |
| Number of Tool Positions | 40 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.9" / 11.81" / 17.6 lbs. |
| Rapid Traverse Rates | 2362 IPM |
| Machine Dimensions | 146" x 110" x 124" |
| Machine Weight | 22,500 lbs. |
