2008 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool, Chip Blaster HP CTS, 30 Pos. ATC, Conveyor
No longer available
2008 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool, Chip Blaster HP CTS, 30 Pos. ATC, Conveyor
Location:Michigan
Description

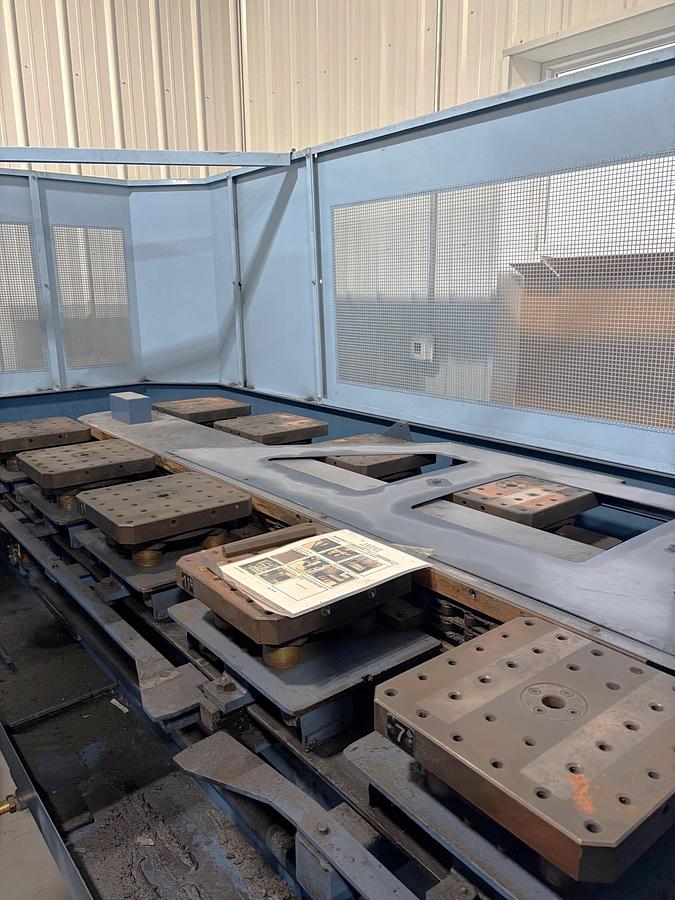

11 Pallet Rotary Type Changer System
Single Loading Station
30 Station Tool Magazine Full 4th Axis Rotary Table
Rigid Tapping Remote Jog Handle
Spindle Oil Chiller
RS-232C Port for DNC Interface
Coolant Tank
Wired 200/220V Electrics
**Current owner purchased machine used from a client that had a centralized chip and coolant system. After moving to his facility he intended to put unit into service. The work didn't materialize and now would like to sell it. Unit is not under power, but in very good condition having come out of a first class medical parts operation.

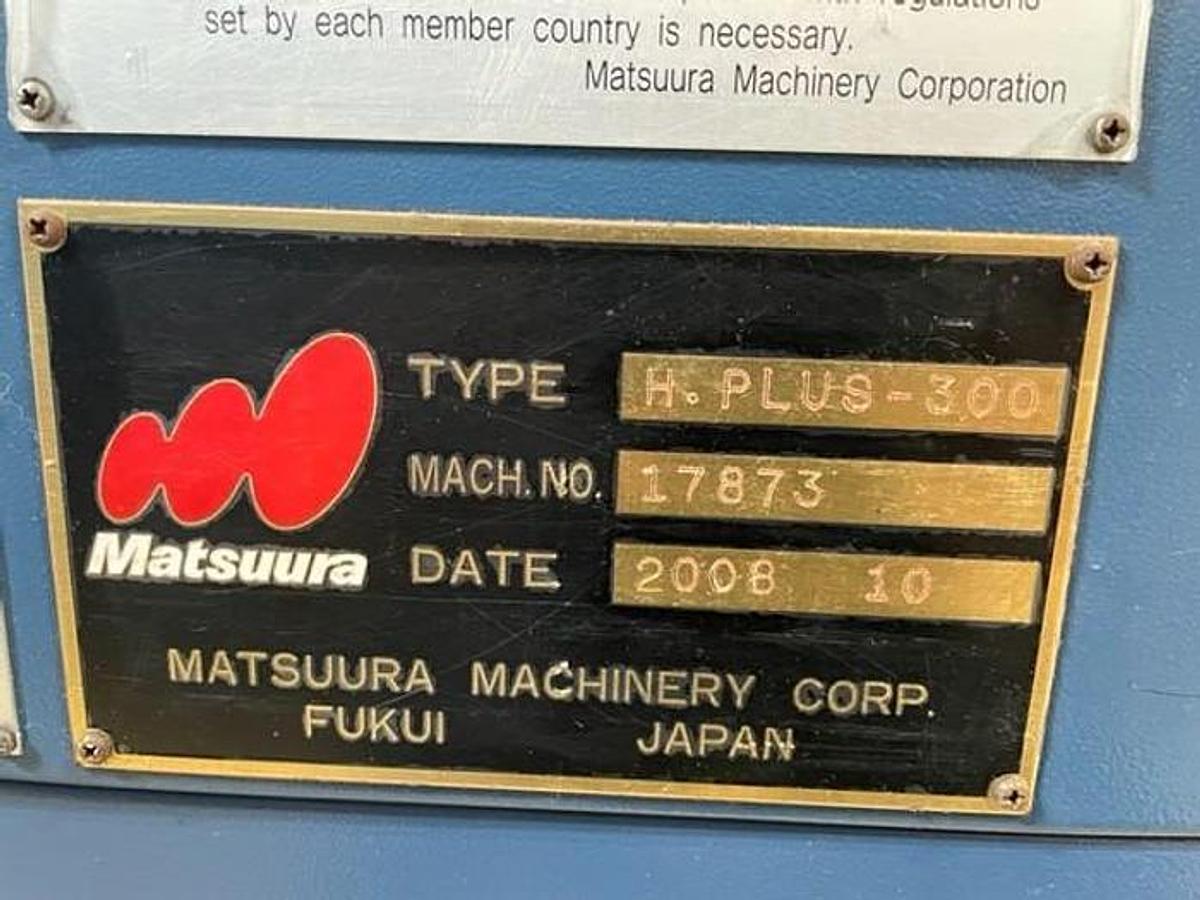

**Manufactured New in October of 2008**
Specifications
| Manufacturer | Matsuura |
| Model | 2008 Matsuura H.Plus 300-PC11 Horizontal Machining Center with 11 Pallet Pool |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118320 |
| Control | Matsuura G-Tech 30i |
| Pallet Size / Number of Pallets | 11.81" x 11.81" / 11 Pallet Pool |
| Table Indexing | 0.001 Degree Indexing - Full 4th Axis |
| Maximum Table Load | 550 lbs. |
| Maximum Workpiece Diameter / Height | 20.86" x 29.92" |
| X-Axis Travel | 19.68" |
| Y-Axis Travel | 22.04" |
| Z-Axis Travel | 19.68" |
| Spindle Taper | CAT #40 |
| Spindle Speeds | 15,000 RPM |
| Spindle Motor | 20 HP |
| Pallet Center to Spindle Face | 3.15" - 22.83" |
| Pallet Surface to Spindle Center | 4.72" - 24.41" |
| Number of Tool Positions | 30 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.9" / 11.81" / 17.6 lbs. |
| Rapid Traverse Rates | 2362 IPM |
| Machine Dimensions | 146" x 85" x 102" |
| Machine Weight | 18,500 lbs. |
