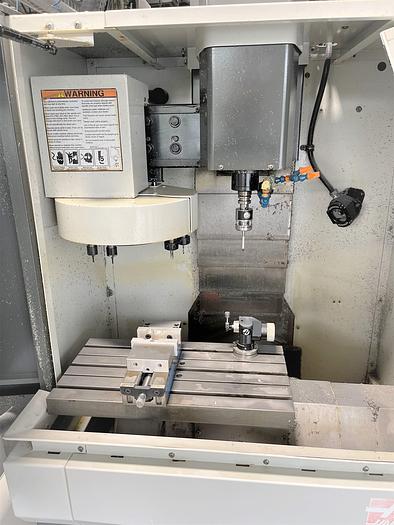

2013 Haas OM-2A
No longer available
2013 Haas OM-2A
$34,500 (USD)
New York, NY
Description
4th Axis Drive & Wiring
Haas Wireless Probing - Both Tool & Part
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Rigid Tapping
30,000 RPM Spindle
750 MB Expanded Memory
High Speed Machining
Caster Wheel Set
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Complete Coolant System w/ Tank & Pump
Ultra Compact Footprint
Specifications
Manufacturer | Haas |
Model | OM-2A |
Year | 2013 |
Condition | Used |
Stock Number | 118313 |
Machine Control | Haas CNC Control |
Table Size | 20" x 10" |
Maximum Table Load | 150 lbs |
X-Axis Travel | 12" |
Y-Axis Travel | 10" |
Z-Axis Travel | 12" |
Spindle Taper | ISO 20 |
Spindle Speed | 30,000 RPM |
Spindle Motor | 5 HP |
Distance Spindle Nose to Table Top | 3.25" to 15.25" |
Tool Magazine Capacity | 20 Station Umbrella Style ATC |
Maximum Tool Diameter / Length / Weight | 2.3" / na / 5 lbs |
Rapid Traverse Rates | 757 IPM |
Cutting Feedrates | 500 IPM |
Machine Dimensions LxWxH | 61"x74"x84" |
Machine Weight | 2,100 lbs |
