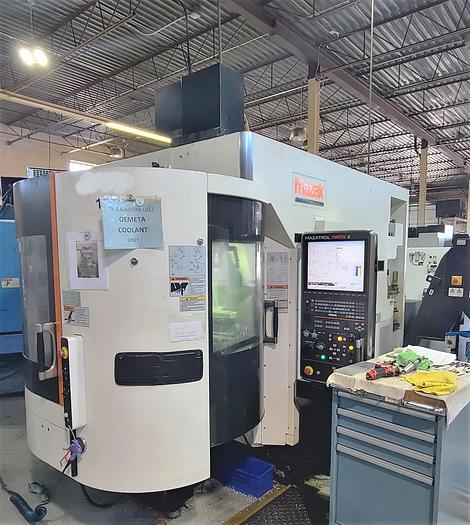

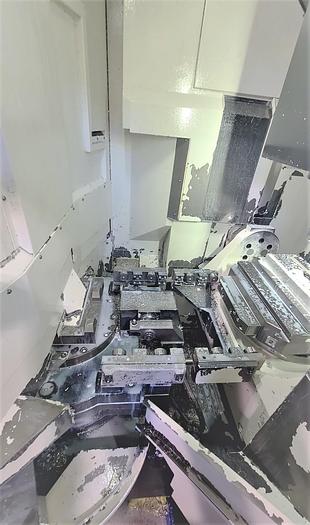

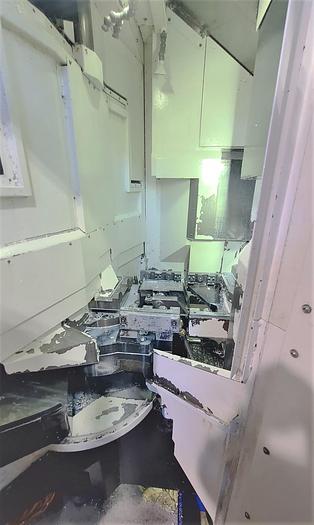

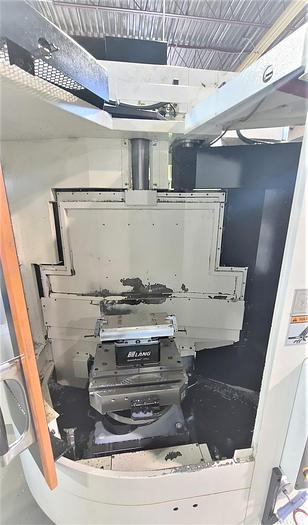

2013 Mazak Variaxis J-500/5X 5 Axis Trunnion Style VMC
2013 Mazak Variaxis J-500/5X 5 Axis Trunnion Style VMC
$199,500 (USD)
Ontario, Canada
orCall (863) 439-6066
Description
Simultaneous 5-Axis

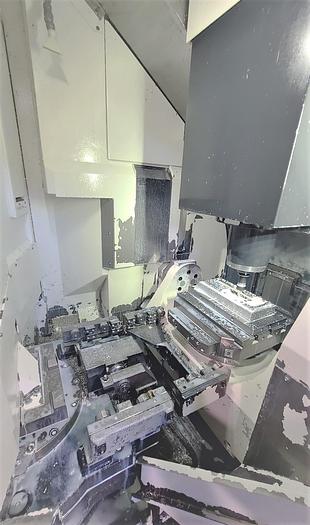

2 Pallet Changer with Work Cleaning Feature
Renishaw RMP600 Work Probe

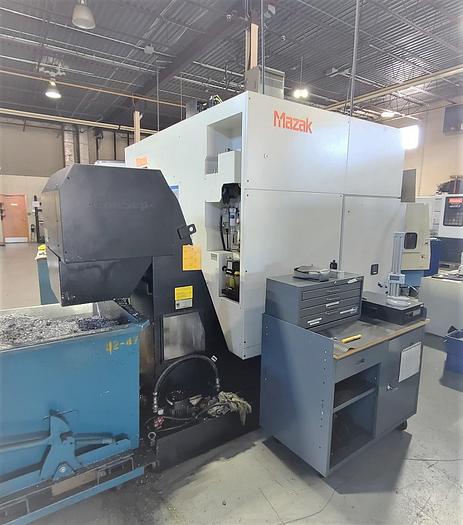

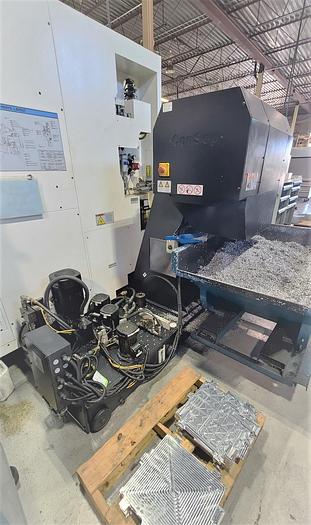

Chip Conveyor

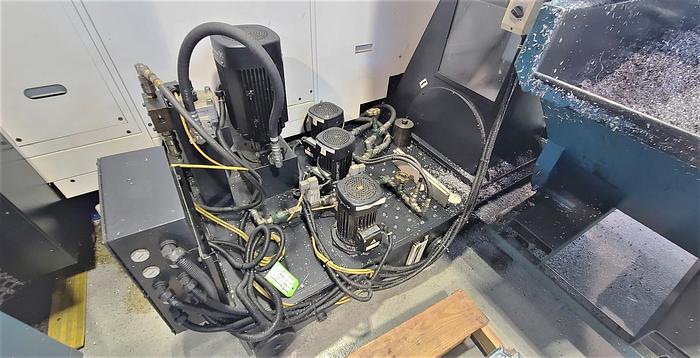

Coolant thru the Spindle
18,000 RPM Spindle

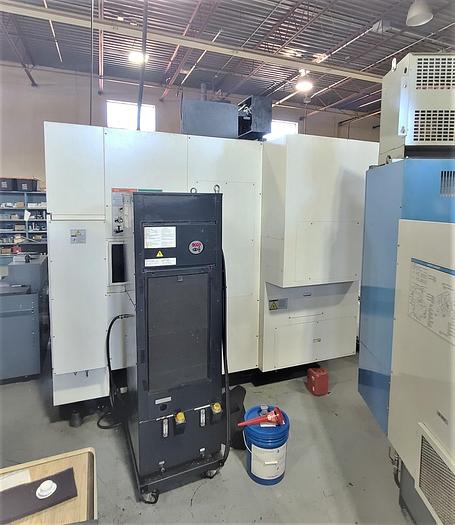

Spindle Chiller Unit
Rigid Tapping
Coolers for Ballscrews (X, Y, and Z)
19" Color LCD Monitor
Touch Screen Display
Remote Jog Handle
Work Setting Error Compensation
Tool Radius Compensation
USB Port Interface
LAN Port Interface

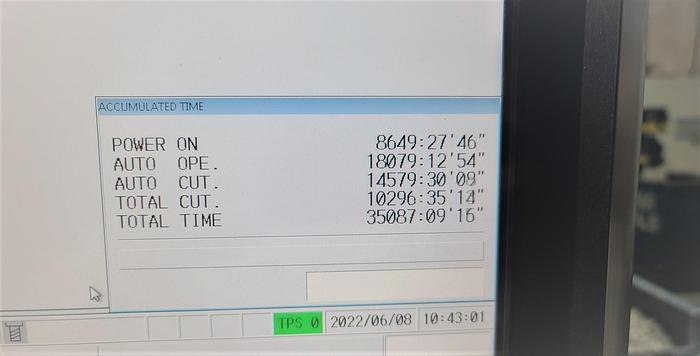

**Total Cut Hours of 10,296**
Specifications
| Manufacturer | Mazak |
| Model | Variaxis J-500/5X |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118305 |

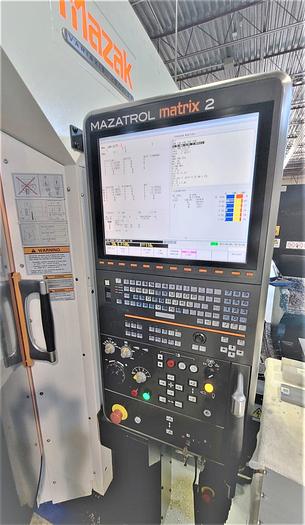

| Machine Control | Mazatrol Matrix 2 Control |
| Table Size | 19.68" x 15.74" |
| Maximum Table Load | 440 lbs. |
| X-axis travel | 13.78" |
| Y-Axis Travel | 21.65" |
| Z-Axis Travel | 20.08" |

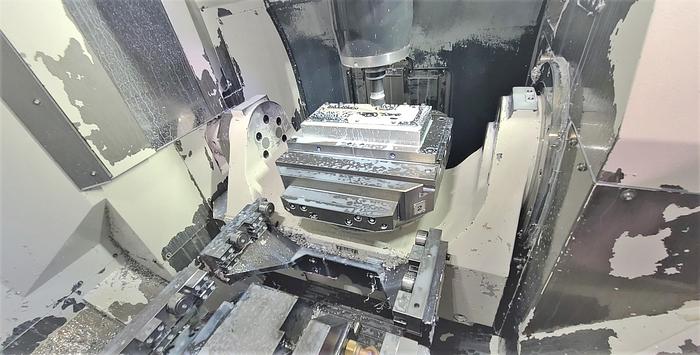

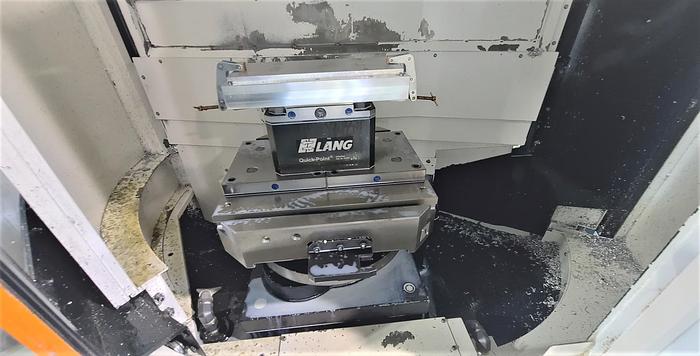

| A-Axis Travel | -120 Degree to +30 Degree Table Tilt |
| C-Axis Rotation | 360 Degrees |
| Spindle Taper | CAT 40 |
| Spindle Speed | 18,000 RPM |
| Spindle Motor | 15 HP |

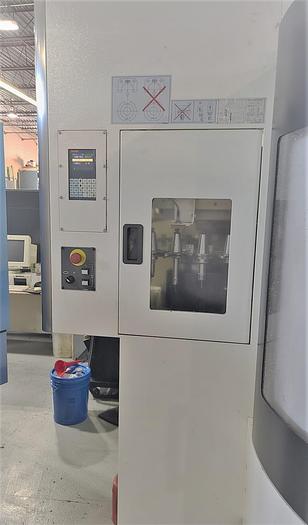

| Tool Magazine Capacity | 30 Station Tool Changer - Side Mounted |
| Rapid Traverse Rates | 1,181 IPM |
| Machine Dimensions LxWxH | 127" x 102" x 112" |
| Machine Weight | 15,432 lbs. |
