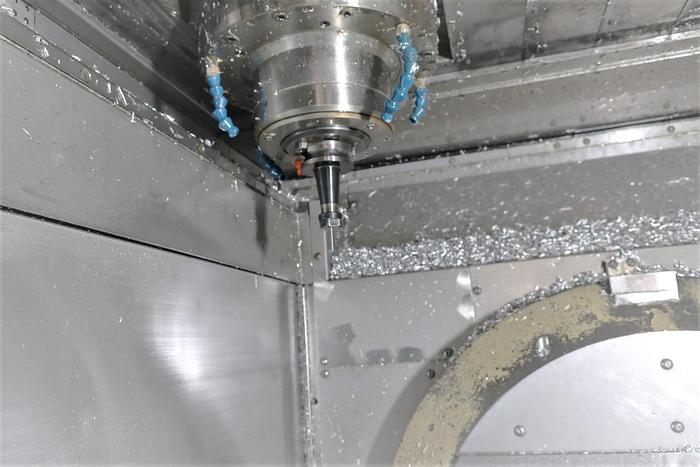

2007 Mori Seiki NMV5000 DCG
No longer available
2007 Mori Seiki NMV5000 DCG
$144,500 (USD)
Location:East Coast
Description

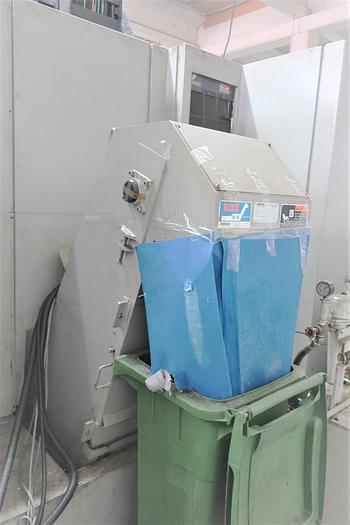

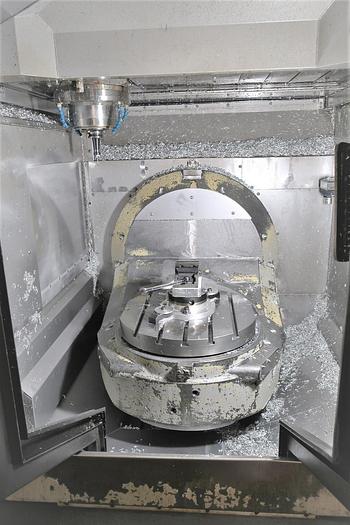

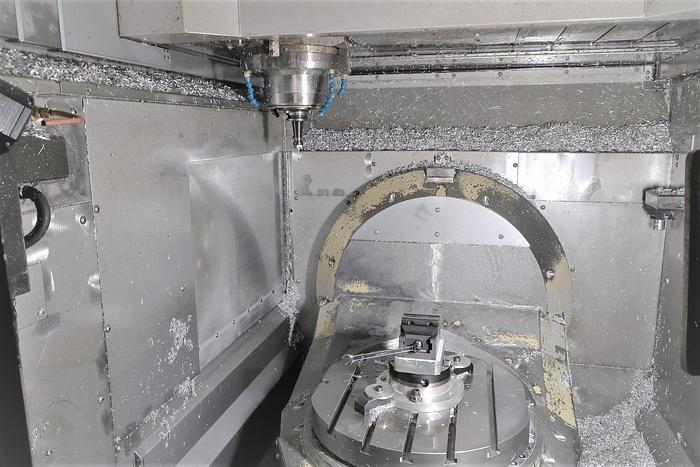

5 Axis Simultaneous Cutting Full 360 Degree C Axis Table B Axis Head Tilt Coolant Thru Spindle Chip Conveyor 90 Station Tool Changer

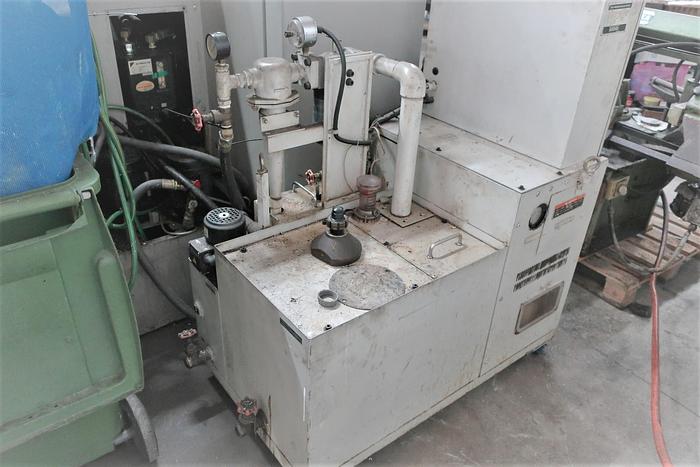

20,000 RPM Spindle Coolant Tank & Pump
Spindle Chiller
MAPPS IV Conversational Programming
Custom Macros
Work & Tool Offsets IC Memory Card Interface
USB Port Interface RS-232C Port for DNC Interface All Available Manuals
Specifications
| Manufacturer | Mori Seiki |
| Model | NMV5000 DCG |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118303 |

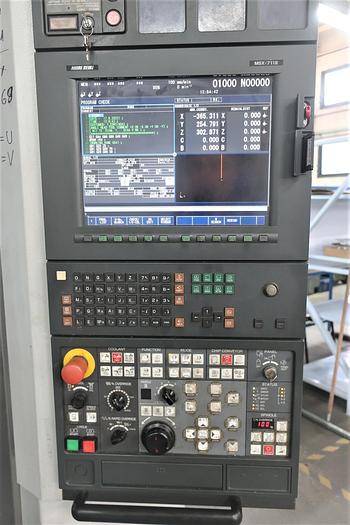

| Control | Mori/Fanuc MSX-711 III |

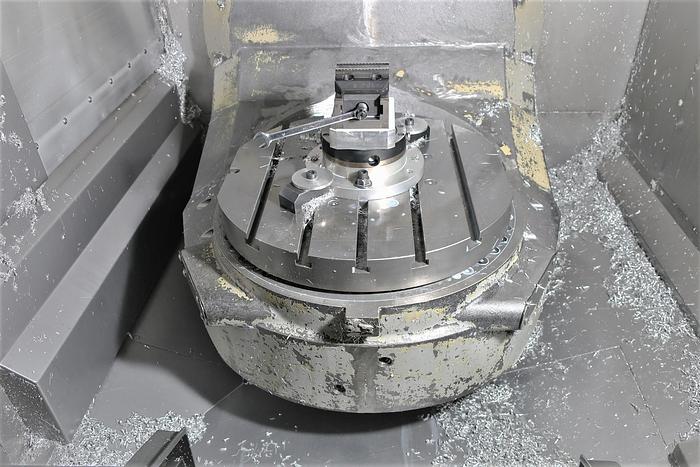

| Table Size | 19.7" Diameter |
| Maximum Weight on Table | 660 lbs. |
| X-Axis Travel | 28.7" |
| Y-axis travel | 20.1" |
| Z-Axis Travel | 20.1" |
| A-Axis Travel (Spindle Head Tilt) | -180 thru +160 Degrees |
| C-Axis Travel (Table Rotation) | 360 Degrees |
| Spindle Taper | BT #40 |
| Spindle Speed | 20,000 RPM |
| Spindle Motor | 25 HP |
| Number of Tool Positions | 90 Position ATC |
| Rapid Traverse Rates X, Y / Z | 1968 IPM / 1574 IPM |

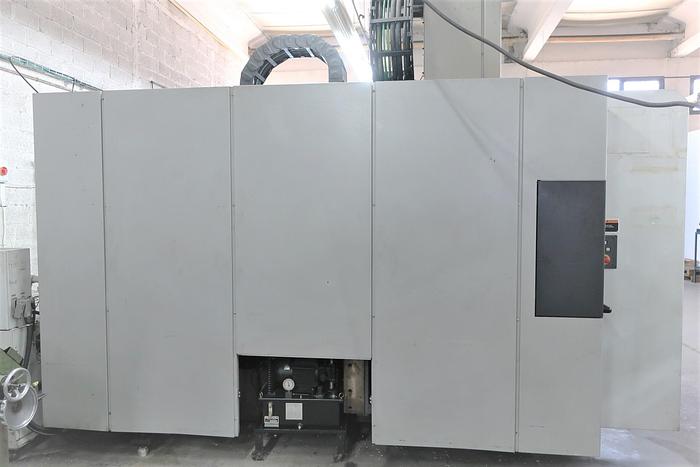

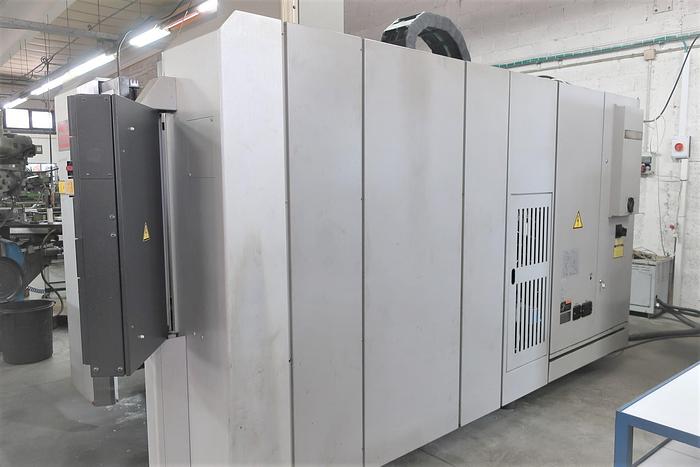

| Machine Dimensions | 156.69" x 110" x 122" |
| Machine Weight | 27,280 lbs. |
