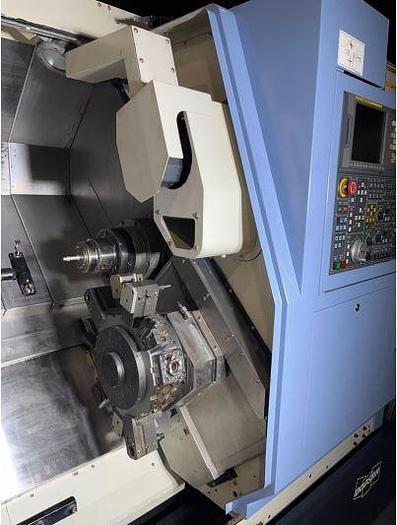

2008 Doosan Puma TT1500SY

No longer available

2008 Doosan Puma TT1500SY

California

Description

Full C Axis Spindle Rotation

Live Milling/Drilling Capability Y Axis Capability on Upper Turret

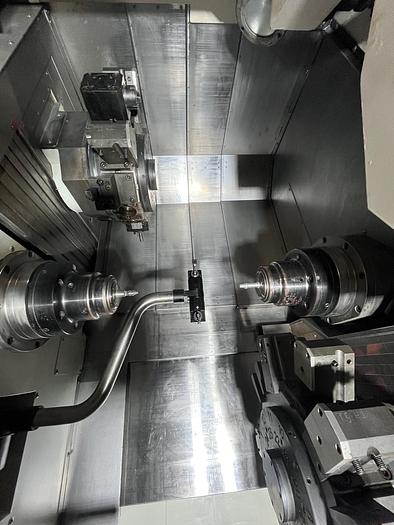

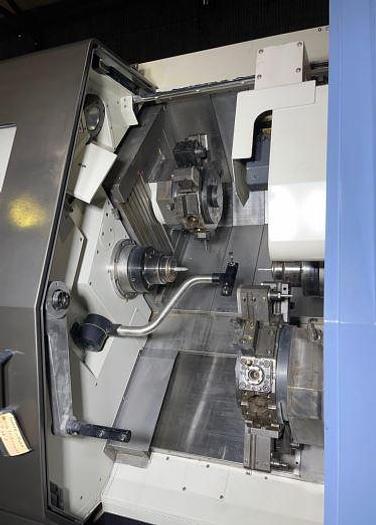

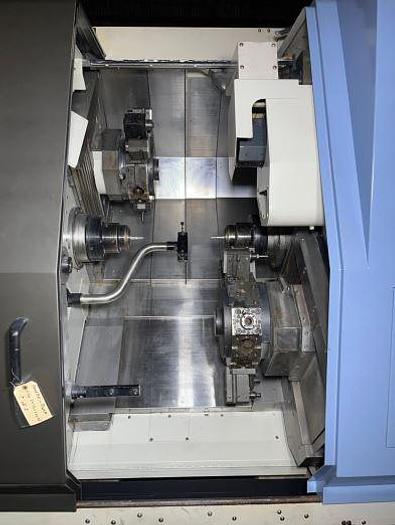

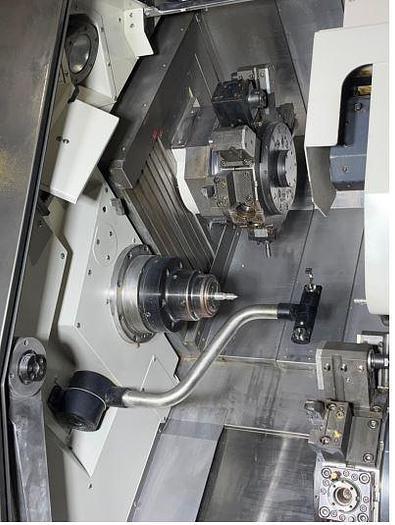

Twin Turret Design with Upper and Lower Turrets

Dual Spindle Design

Tool Presetter

Parts Catcher

Parts Exit Conveyor

Chip Conveyor

Rigid Tapping on Both Spindles

PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways

Coolant Tank with Pump All Available Manuals

(2) X-Axis Live Tool Holders

Some Static Tool Holders

Specifications

ManufacturerDoosan
ModelPuma TT1500SY
Year2008
ConditionUsed
Stock Number118300

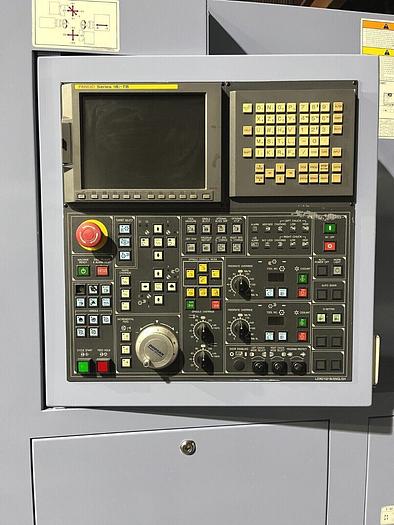

ControlFanuc 18i-TB Control
Chuck SizeCollet Chuck both spindles
Maximum Swing over Bed9.05"
Maximum Cutting Diameter9.05"
Maximum Machining Length9.1"
Maximum Distance Between Centers29.5"
Maximum Bar Capacity2"
X1-Axis Travel / X2-Axis Travel6.5" / 7.48"
Y-Axis Travel3.93"
Z1-Axis Travel / Z2-Axis Travel18.5" / 19.29"
C Axis Spindle Rotation.001 Degrees - both Spindles
Spindle Nose / Spindle BoreA2-6" / 2.44" - both Spindles
Main & Subspindle Speeds6,000 RPM
Spindle Motor - Both Spindles20 HP
Rotary Tool Speed / Rotary Motor5,000 RPM / 7.5 HP
Number of Turret Positions12 Station Turret - Each
Rapid Traverse Rates X / Y / Z787 IPM / 295 IPM / 945 IPM
Machine Dimensions136"x67"x72"
Machine Weight11,500 lbs
