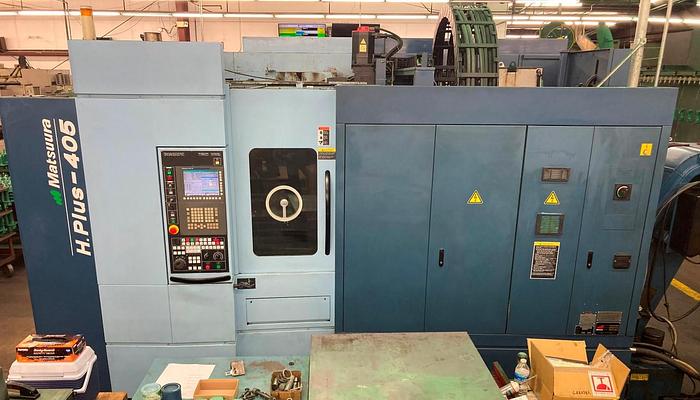

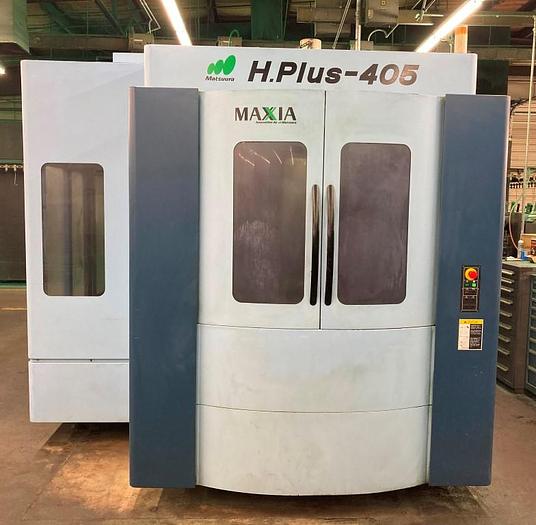

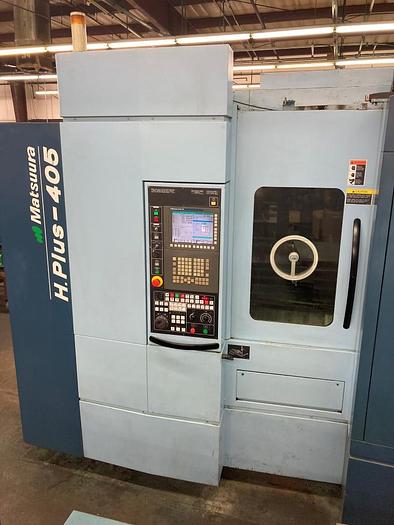

2011 Matsuura H.Plus 405
No longer available
2011 Matsuura H.Plus 405
Location:California
Description
Full 4th Axis Contouring
Auto Tool Length Measurement
Broken Tool Detection Probing System
800 PSI High Pressure Thru the Spindle Coolant
Turbo Microfine II Chip Conveyor
1000 Registered Programs
9 Optional Block Skips
**Machine has had a full PM and all Calibrations done as needed by Matsuura in 8/22
Specifications
Manufacturer | Matsuura |
Model | H.Plus 405 |
Year | 2011 |
Condition | Used |
Stock Number | 118294 |
Machine Control | Matsuura G-Tech 31i |
Table Size | 19.68"x19.68" (2) Pallets |
Maximum Table Load | 880 lbs |
X-Axis Travel | 25.98" |
Y-Axis Travel | 25.98" |
Z-Axis Travel | 25.98" |
C-Axis Rotation | .001 Degrees Full Contouring |
Spindle Speed | 12,000 rpm |
Spindle Taper | # 40 |
Spindle Motor | 30 hp |
Tool Magazine Capacity | 120 Position ATC |
