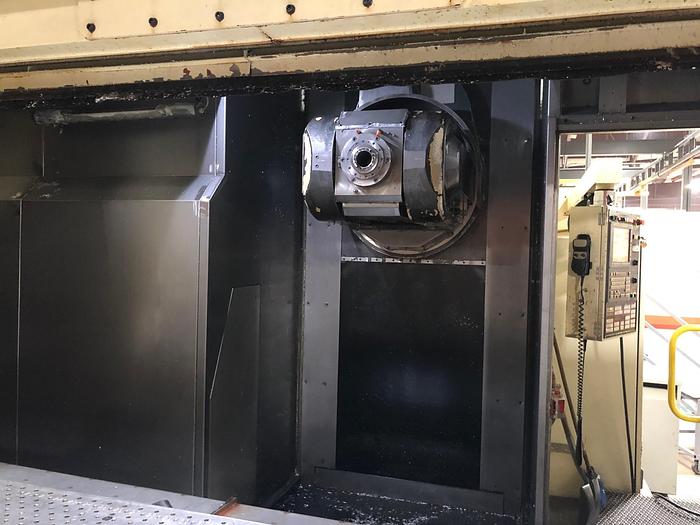

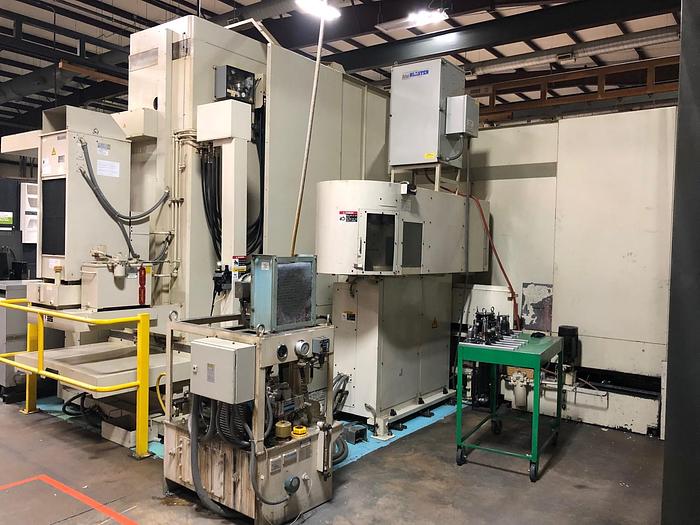

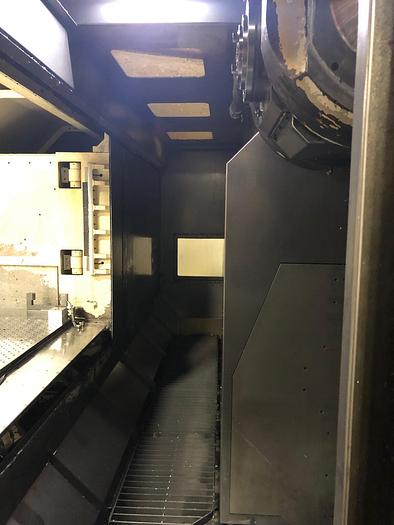

2008 SNK HPS-120B
![Used 2008 SNK HPS-120B](https://i.machineryhost.com/c365b07daad2e383a0e5436df8fe523f/large-used-2008-snk-hps-120-b.jpg)
2008 SNK HPS-120B
Contact us for price
Location:California
orCall (863) 439-6066
Description
Thru the Spindle Coolant
BLUM Laser Measuring System
Tool Length & Tool Breakage
Spare Spindle Cartridge
**Used for finish machining only**
Installed in 2009
Specifications
Manufacturer | SNK |
Model | HPS-120B |
Year | 2008 |
Condition | Used |
Stock Number | 118291 |
Machine Control | Fanuc 31iA5 |

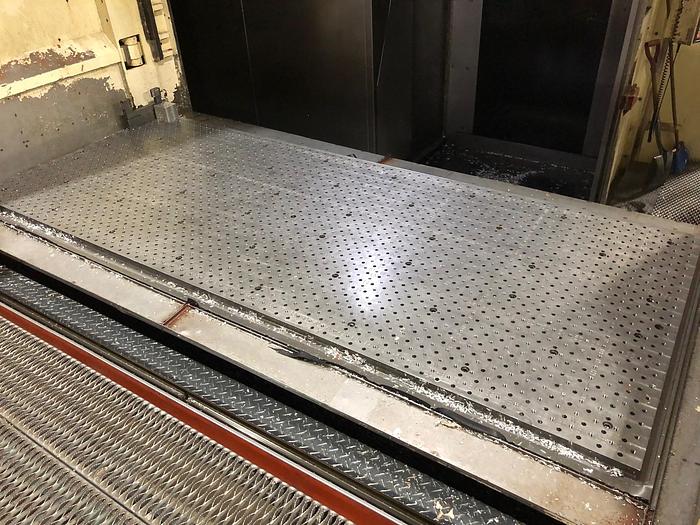

Table Size | 120"x48" |
Maximum Table Load | 11,000 lbs |
X-Axis Travel | 124" |
Y-Axis Travel | 52" |
Z-Axis Travel | 30" |
A-Axis Travel | Spindle Tilt +/- 90 Degrees |
C-Axis Rotation | Spindle Rotation +/- 270 Degrees |
Table Positioning | 0 Degrees for Loading / 90 Degrees for Machining |
Spindle Speeds | 150 to 12,000 rpm |
Spindle Taper | #50 |
Tool Magazine Capacity | 40 atc |
Spindle Motor | 50/40 hp |
Cutting Feedrates | 1 to 393 ipm |
Rapid Traverse Rates (X, Y, Z) | 945 ipm, 787 ipm, 945 ipm |
Machine Dimensions LxWxH | 410"x256"x170" |
