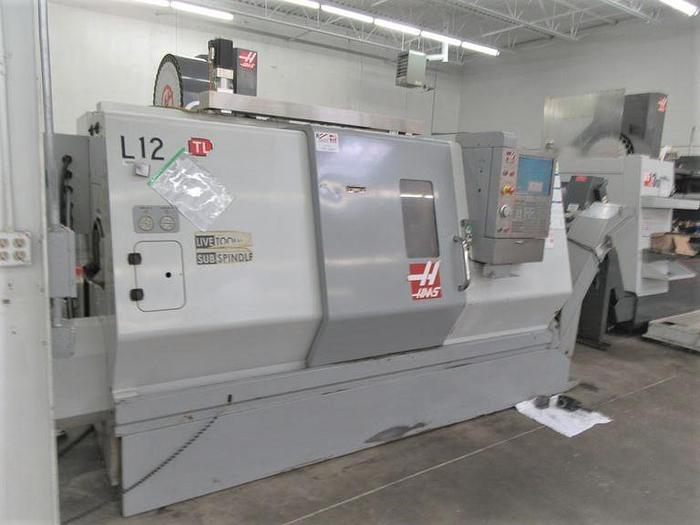

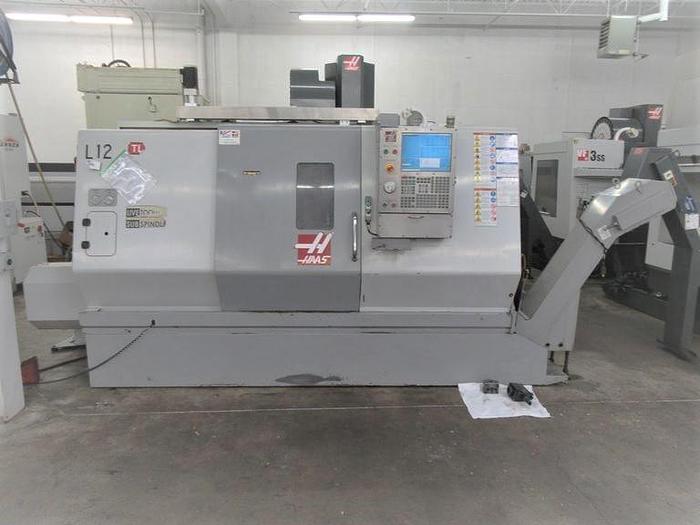

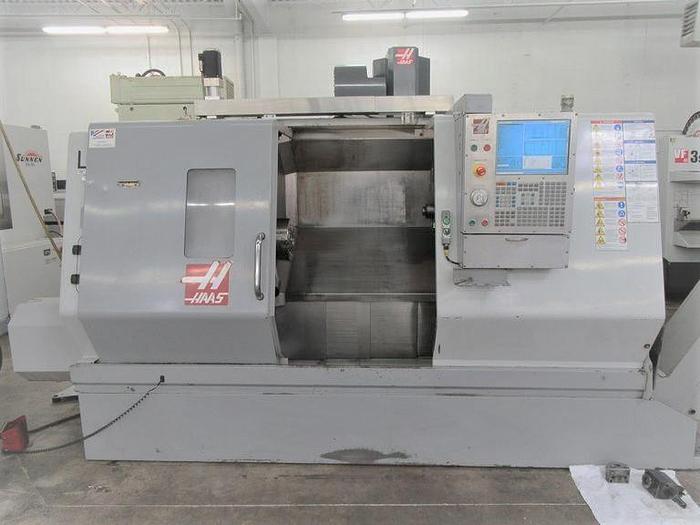

2008 Haas TL-25 Turning Center with Milling/Subspindle
2008 Haas TL-25 Turning Center with Milling/Subspindle
$49,500 (USD)
Minnesota
orCall (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Subspindle

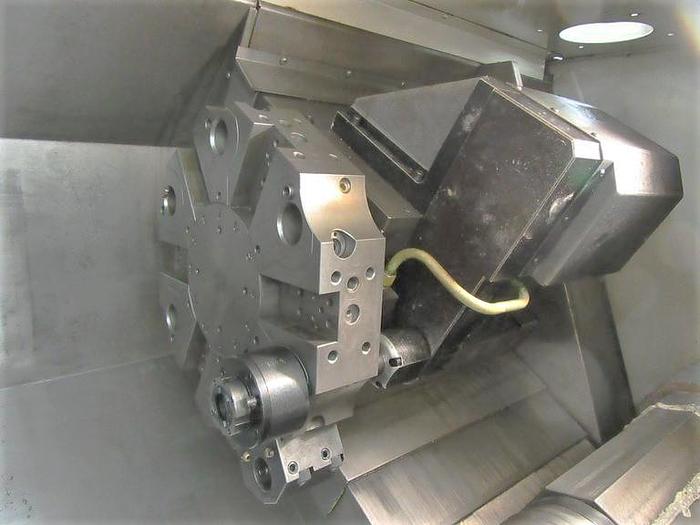

12 Position Turret (6 Live and 6 Static)

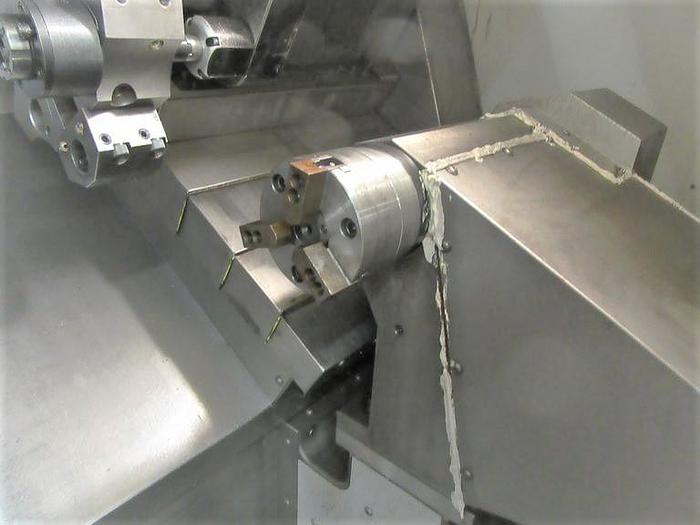

10" 3-Jaw Hydraulic Chuck for Main Spindle with Full C Axis Rotation

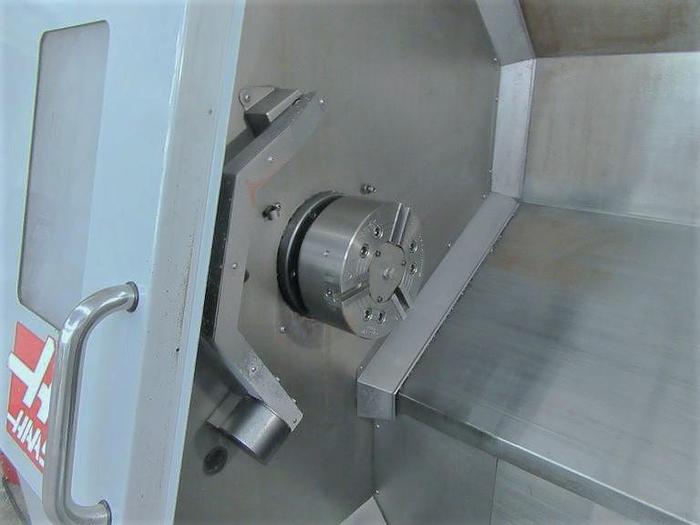

5.3" 3-Jaw Hydraulic Chuck for Subspindle with 15 Degree Indexing

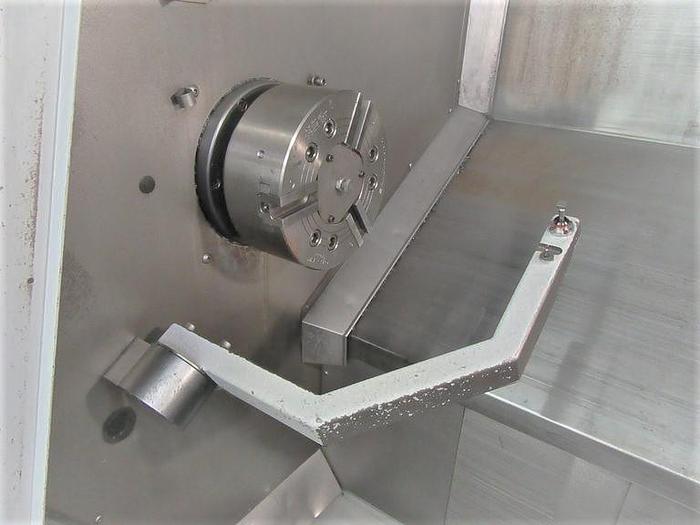

Tool Presetter

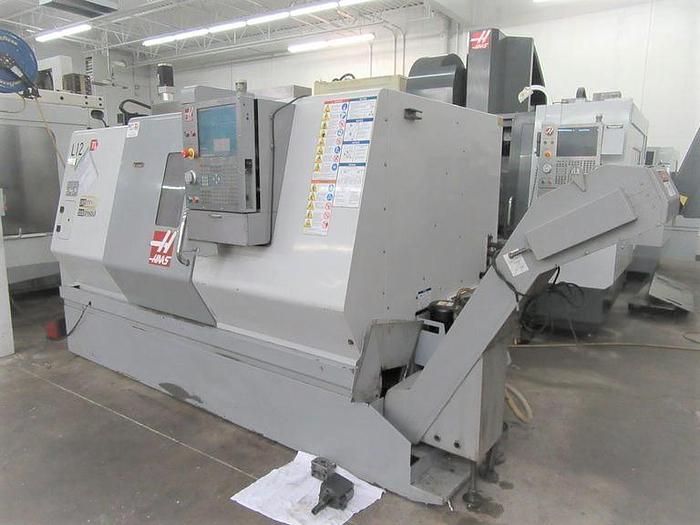

Belt Style Chip Conveyor
Spindle Orientation
Rigid Tapping
Gearbox on Main Spindle Drive
High Torque Live Tool Option
User Definable Macros

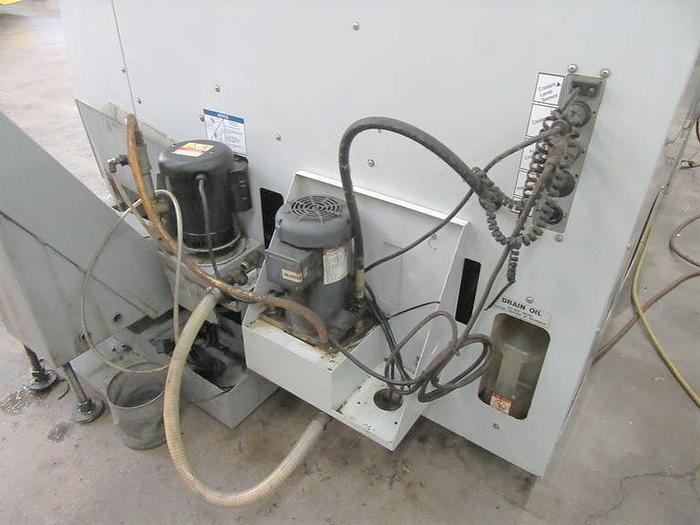

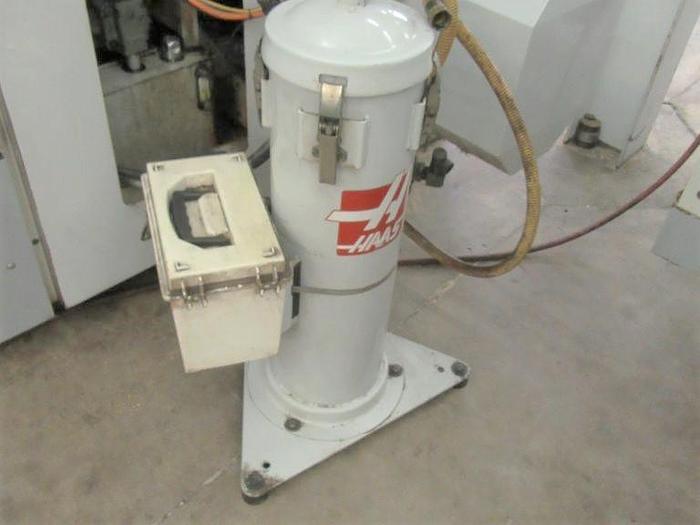

High Pressure Coolant with Auxiliary Coolant Filter System
Standard Coolant Tank with Pump
Visual Quick Code Programming
USB Port Interface
RS 232 Port Interface

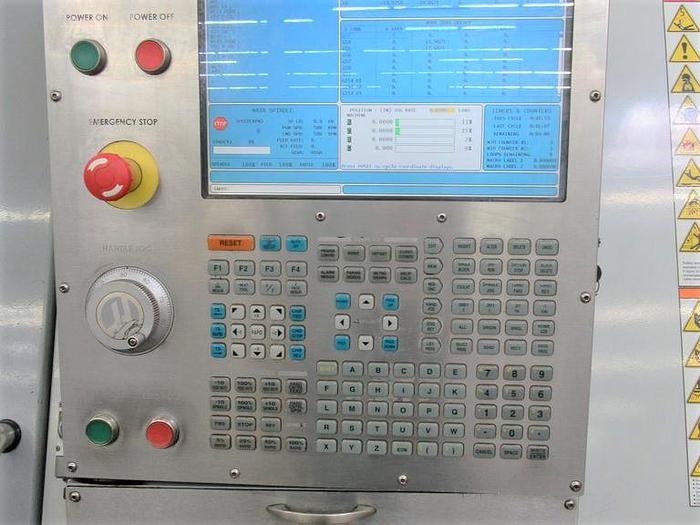

Haas Control with Coldfire Processor

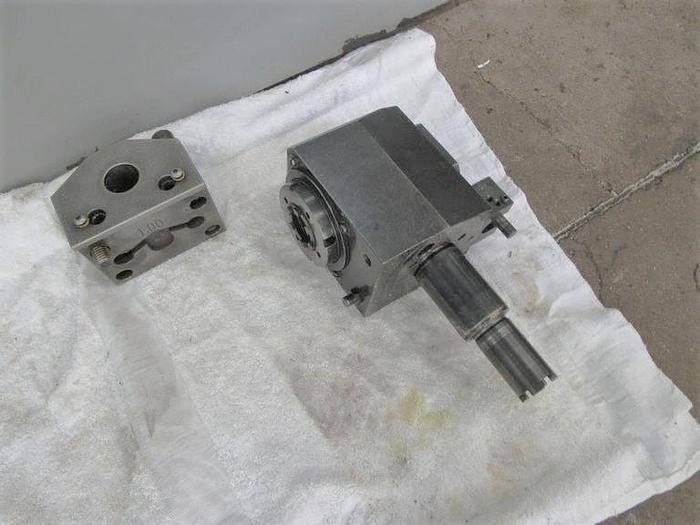

(1) Axial Live Tool Holder
(1) Radial Live Tool Holder
Haas Manual
New in December of 2008

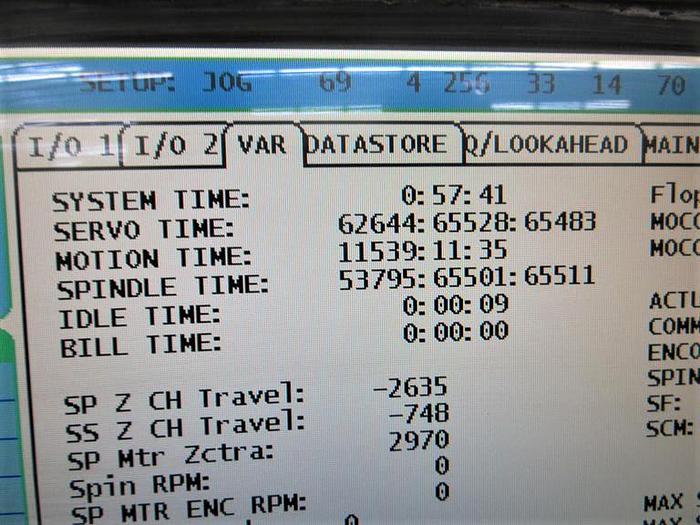

Motion Hours 11,539
Estimated Spindle Hours 8-10,000 Hours
Specifications
| Manufacturer | Haas |
| Model | TL-25 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118288 |
| Chuck Sizes Main / Subspindle | 10" Hydraulic / 5.3" Hydraulic |
| Maximum Swing over Bed | 30" |
| Maximum Swing Over Cross Slide | 14.5" |
| Maximum Cutting Diameter | 16"' |
| Maximum Turning Length | 34" |
| Maximum Distance Between Spindles | 39" |
| X-Axis Travel | 11.3" |
| Z-Axis Travel | 34" |
| C-Axis Rotation | .001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3.03" |
| Spindle Speeds | 50 - 3,400 RPM |
| Spindle Motor | 30 HP - Geared |
| Subspindle Bore / Bar Capacity | A2-5" / 1.18" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 8 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 5 HP |
| Turret Type | 12 Positions - (6 Live and 6 Static) |
| Rapid Traverse Rates | 710 IPM |
| Machine Dimensions LxWxH | 189" x 73" x 93" |
| Machine Weight | 16,000 lbs |
