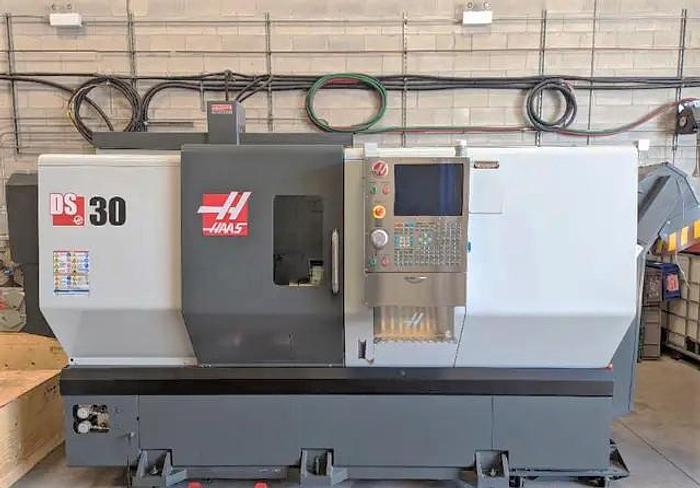

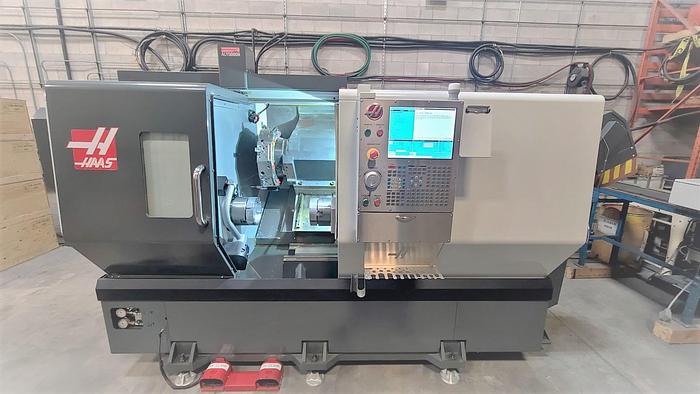

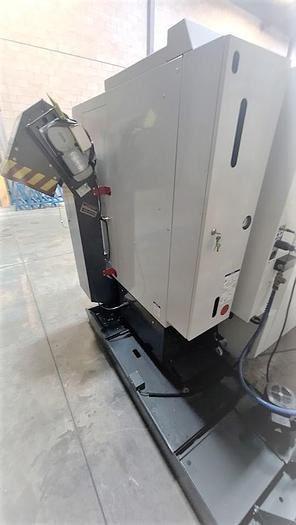

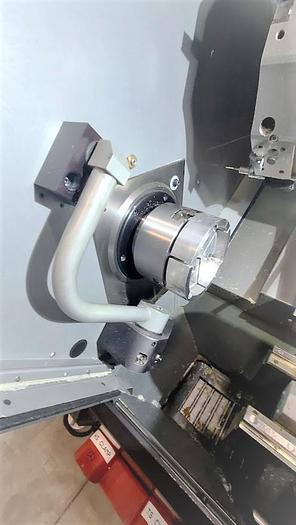

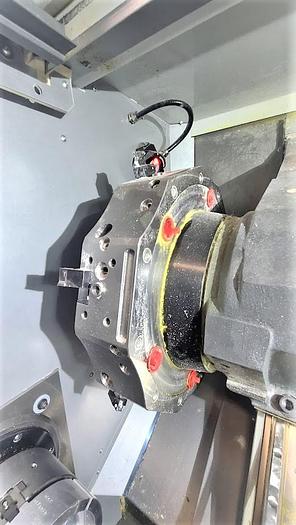

2016 Haas DS-30 Twin Spindle Lathe
No longer available
2016 Haas DS-30 Twin Spindle Lathe
$69,950 (USD)
Location:Ontario, Canada
Description

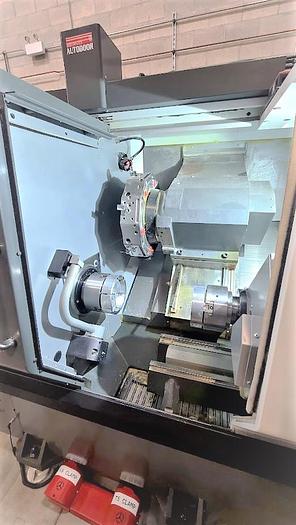

Subspindle (only, no milling or Y axis)
8.3" 3-Jaw Hydraulic Chuck for Main Spindle
8.3" 3-Jaw Hydraulic Chuck for Subspindle

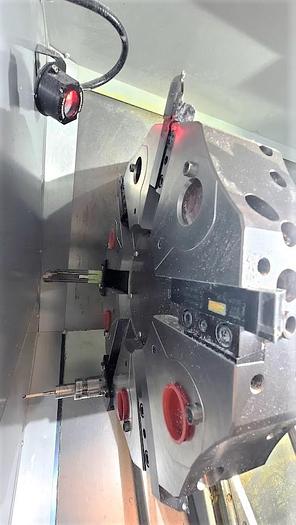

Tool Presetter

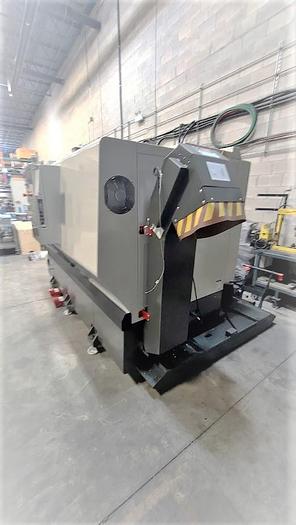

Belt Style Chip Conveyor
Spindle Orientation
Rigid Tapping
Synchronous Turning Between Spindles
Control Cabinet Cooler
1 MB Program

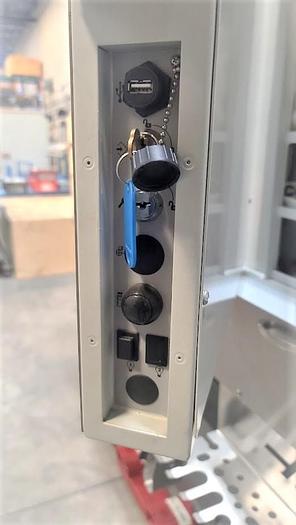

USB Port Interface
Networking
RS 232 Port Interface

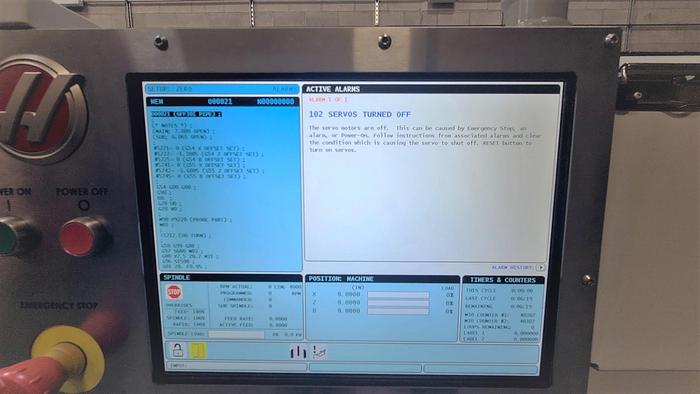

15" Color LCD Monitor
Miscellaneous Tooling
Wired 220V Electrics

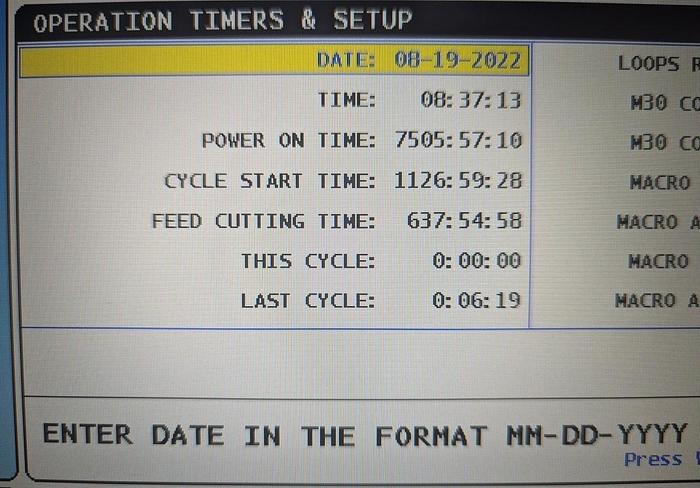

7,505 Power On Hours
1,126 Cycle Start Hours
637 Feed Cutting Hours
Specifications
| Manufacturer | Haas |
| Model | DS-30 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 118287 |
| Chuck Sizes Main / Subspindle | 8.3" Hydraulic / 8.3" Hydraulic |
| Maximum Swing over Bed | 31.75" |
| Maximum Swing Over Cross Slide | 20.75 |
| Swing Over Subspindle | 21.73" |
| Maximum Cutting Diameter | 18" |
| Maximum Cutting Length | 26" |
| X-Axis Travel | 12.5" |
| Z-Axis Travel | 23" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 2" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Bore / Bar Capcity | A2-5" / 2.43" / 2" |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 20 HP |
| Turret Type | 12 Positions |
| Rapid Traverse Rates | 944 IPM |
| Machine Dimensions LxWxH | 178" x 120" x 83" |
| Machine Weight | 14,600 lbs |
