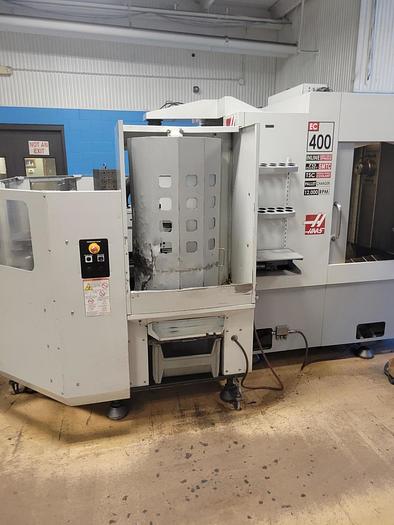

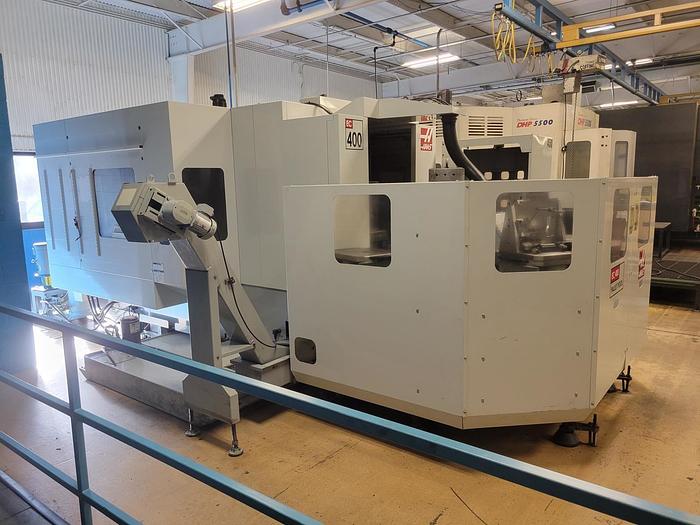

2008 Haas EC-400 6-Pallet Pool

2008 Haas EC-400 6-Pallet Pool

Contact us for price

Minnesota

orCall (863) 439-6066

Description

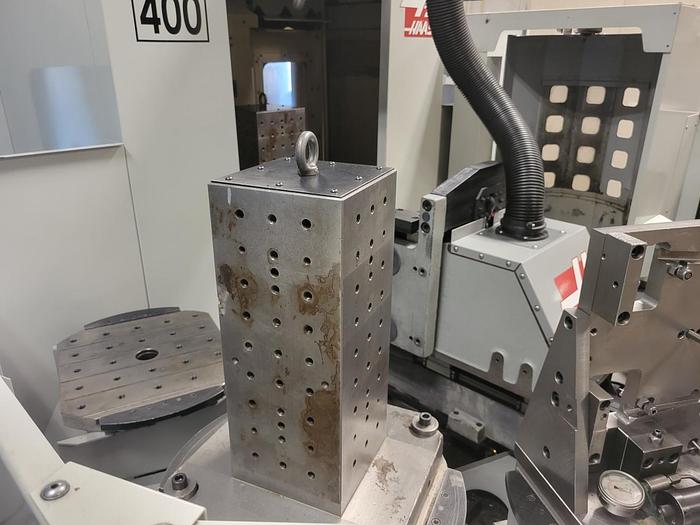

6 Pallet Pool Configuation with 6 Drilled and Tapped Pallets

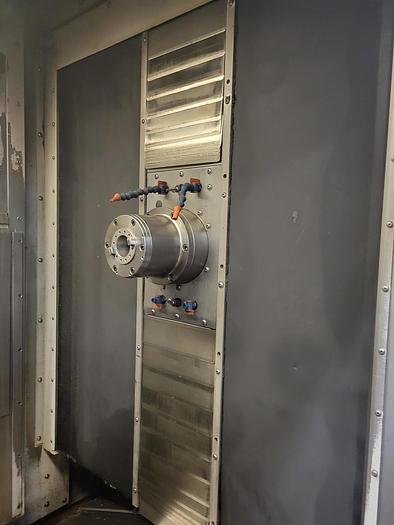

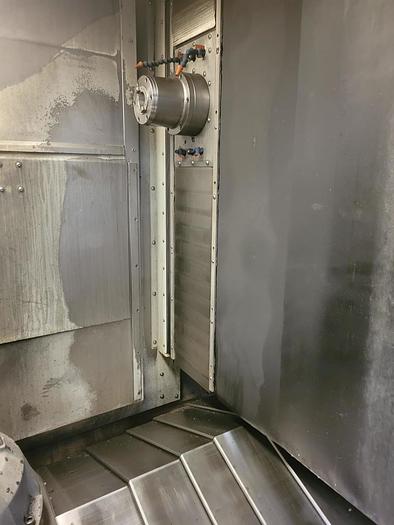

Inline Spindle

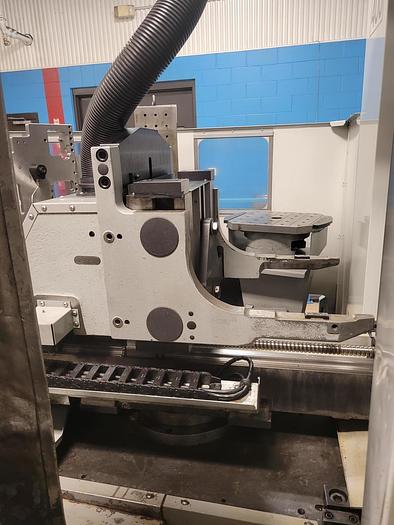

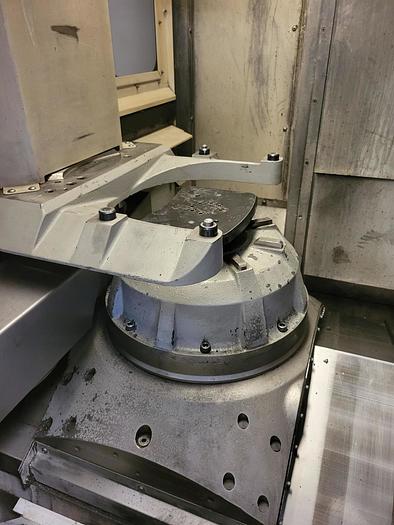

Full 4th Axis Rotary Table

70 Station Tool Changer

Coolant Thru the Spindle - 1000 PSI

Through the Tool Air Blast

16 mb Expanded Programming Memory

Spindle Orientation

User Definable Macros

Coordinate Rotation & Scaling

Visual Part Program Storage

Rigid Tapping

Chip Conveyor

Ethernet Interface

USB Port Interface

All Available Manuals

*Price new as equipped at $331,355

Show All

Specifications

ManufacturerHaas
ModelEC-400 6-Pallet Pool
Year2008
ConditionUsed
Stock Number118282

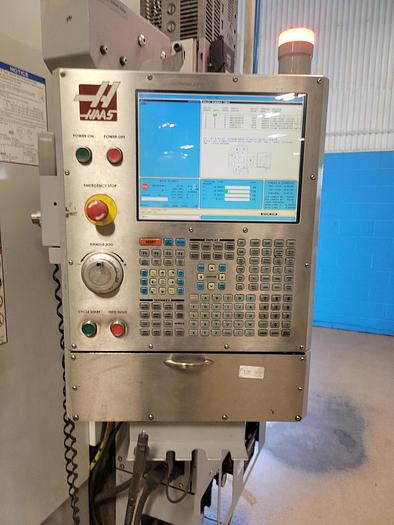

Machine ControlHaas
Table Size / Number of Pallets15.75" x 15.75" / 6 Pallet Changer
Maximum Table Load880 lbs
Pallet Indexing.001 Degrees Full 4th
X-Axis Travel22"
Y-Axis Travel25"
Z-Axis Travel22"
Spindle Speed12,000 RPM
Spindle TaperCAT 40
Spindle Motor30 HP Vector Direct Drive
Tool Magazine Capacity70 Station Tool Changer
Maximum Tool Diameter / Length / Weight5" / 12" / 12 lbs
Rapid Traverse Rates1,400 IPM
Cutting Feedrates833 IPM
Machine Dimensions LxWxH202" x 102" x 113"
Pallet Pool Dimensions127" x 91" x 85"
Machine Weight31,200 lbs all together
