1998 Kitamura Mycenter 3X
No longer available
1998 Kitamura Mycenter 3X
$6,900 (USD)
Location:New York, NY
Description
Chip Conveyor
RS 232 Port Interface
Boxed Ways
Coolant System
All Available Manuals

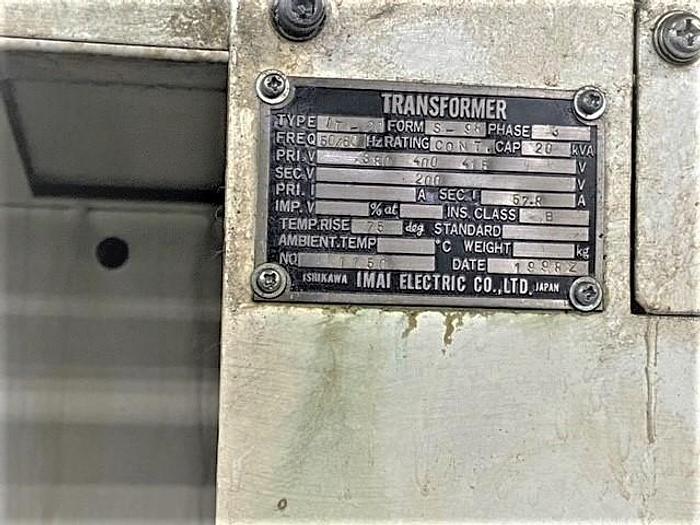

Transformer
Wired 200/220V Electrics
Specifications
| Manufacturer | Kitamura |
| Model | Mycenter 3X |
| Year | 1998 |
| Condition | Used |
| Stock Number | 118281 |

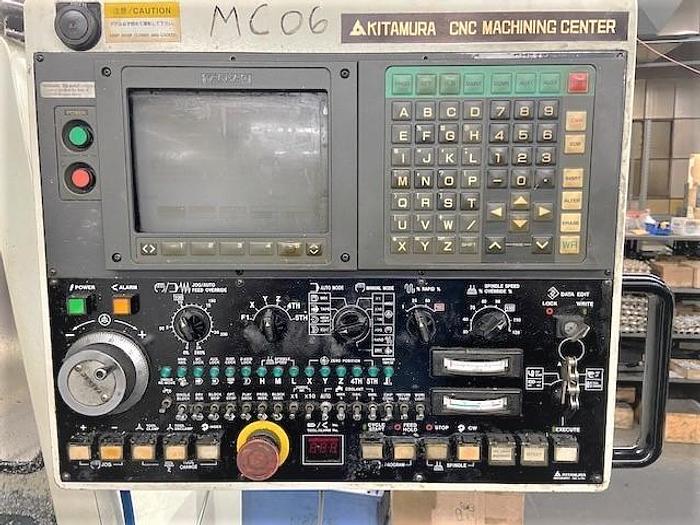

| Machine Control | Yasnac i-80 Control |
| Table Size | 35.4" x 16.1" |
| Maximum Table Load | 1,102 lbs. |
| X-Axis Travel | 30" |
| Y-Axis Travel | 17.9" |
| Z-Axis Travel | 18.1" |
| Distance Spindle Nose to Table Top | 4.9" - 23" |
| Subspindle Speed | 10,000 rpm |
| Spindle Taper | BT #40 |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 20 Position Side Mounted ATC |
| Maximum Tool Diameter / Length / Weight | 4.9" / 11.8" / 17.6 lbs. |
| Rapid Traverse Rates X, Y / Z | 1181 IPM / 945 IPM |
| Machine Dimensions LxWxH | 114" x 98" x 104" |
| Machine Weight | 12,000 lbs. |
