2000 Bridgeport Romi EZ Path SD

No longer available
2000 Bridgeport Romi EZ Path SD
$19,950 (USD)
Michigan
Description

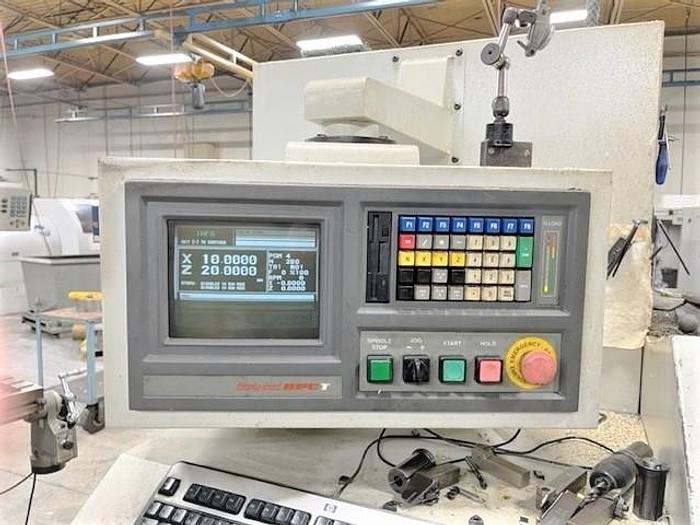

Bridgeport BPCT Teach Type Control
8" 3 Jaw Chuck
8 Station Turret

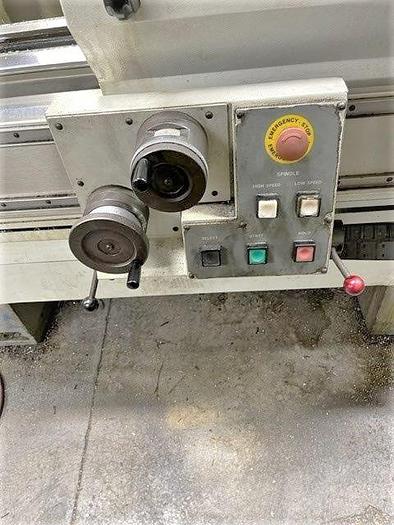

Electronic Hand Wheels
Tailstock
Geared Headstock
Inch/Metric Threading
3.5" Floppy Disk Interface
RS 232 Port Interface
Automatic Lubrication System

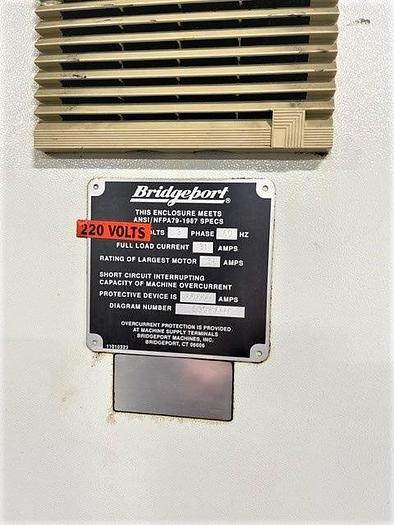

Wired 220V Electrics
All Available Tooling
All Available Manuals
**Owner has a 2nd unit that is not running that he would sell for a parts machine**
Specifications
Manufacturer | Bridgeport Romi |
Model | EZ Path SD |
Year | 2000 |
Condition | Used |
Stock Number | 118267 |
Chuck Size | 8" 3 Jaw Chuck |
Maximum Swing | 17" |
Maximum Swing Over Cross Slide | 8.0" |
Distance Between Centers | 40" |
X-axis travel | 8.6" |
Z-Axis Travel | 40" |
Spindle Nose / Spindle Bore | A2-5" / 2.08" |
Spindle Speeds | 25 - 4,000 RPM - Geared Head |
Spindle Motor | 7.5 HP |
Turret Type | 8 Station Turret |
Rapid Traverse Rates X/Z | 295 IPM / 394 IPM |
Tailstock Quill Travel | 6.3" |
Tailstock Bore Taper | #4 MT |
Machine Dimensions LxWxH | 100" x 49" x 77" |

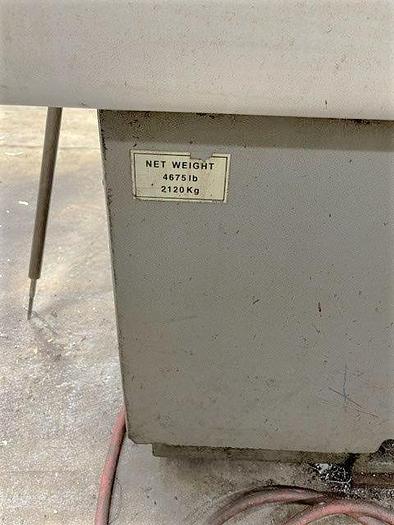

Machine Weight | 4,675 lbs |
