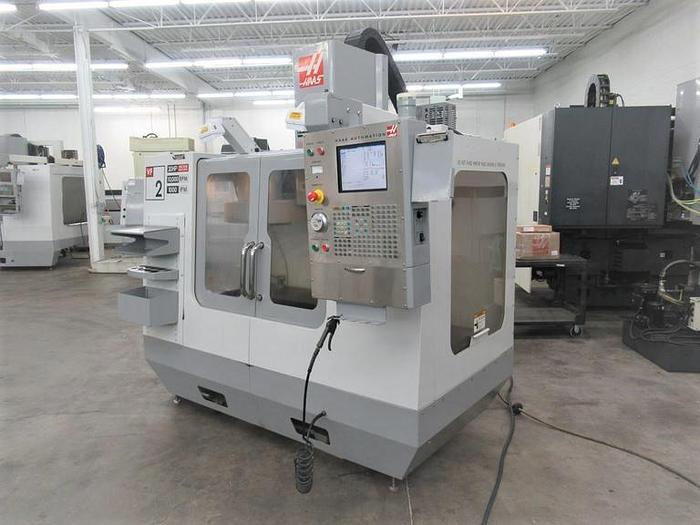

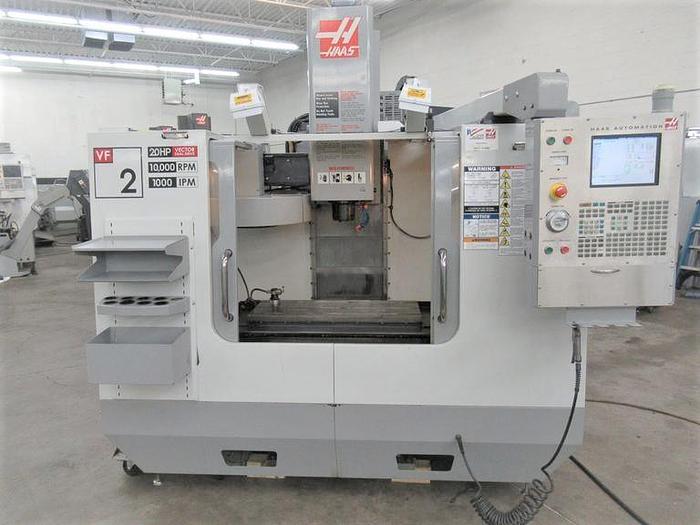

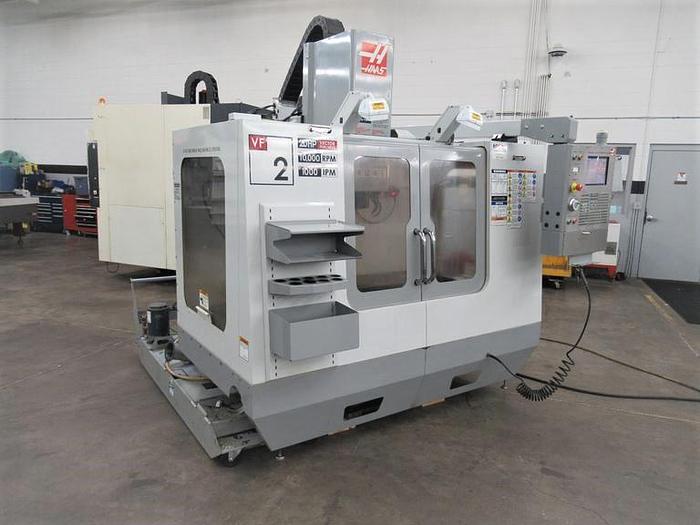

2006 Haas VF2D
No longer available
2006 Haas VF2D
$29,500 (USD)
Location:Minnesota
Description
10,000 RPM Spindle

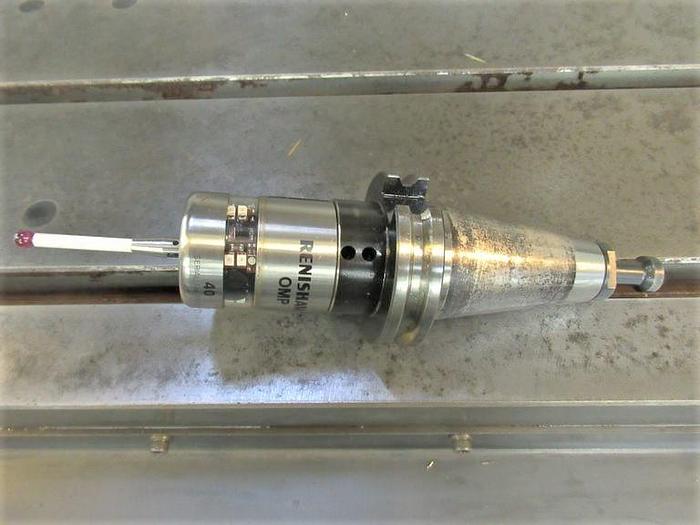

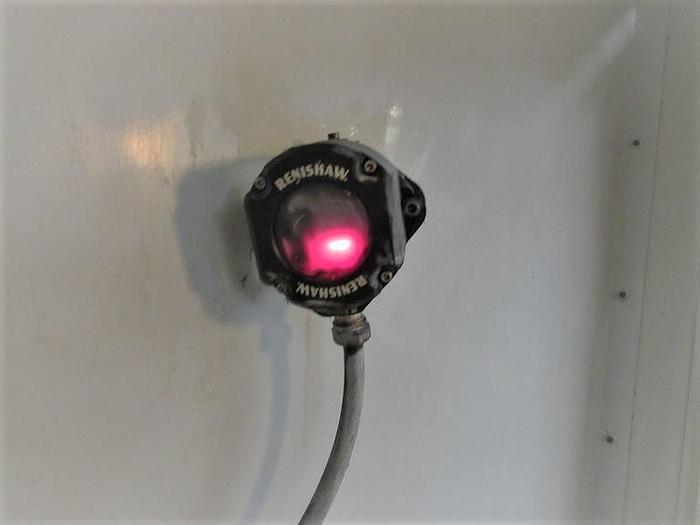

Haas Probing System with Tool and Part Probes
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
High Speed Machining
Auger Style Chip Conveyor
Rigid Tapping
16MB Program Memory Expansion
Direct Drive Spindle
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Wired 208/230V Electrics
Direct Drive Transmission Complete Coolant System with Tank & Pump
Coldfire Processor Wired 208/230V Electrics

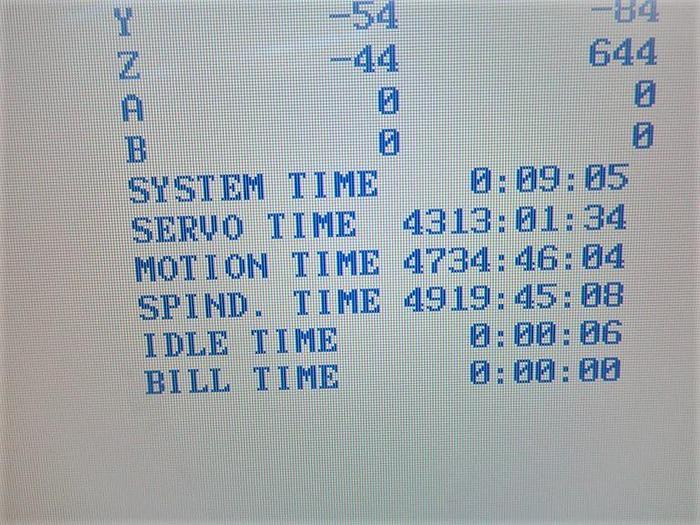

4,734 Motion Hours
4,919 Spindle Hours
Specifications
| Manufacturer | Haas |
| Model | VF2D |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118263 |
| Control | Haas Control with Coldfire Processor |

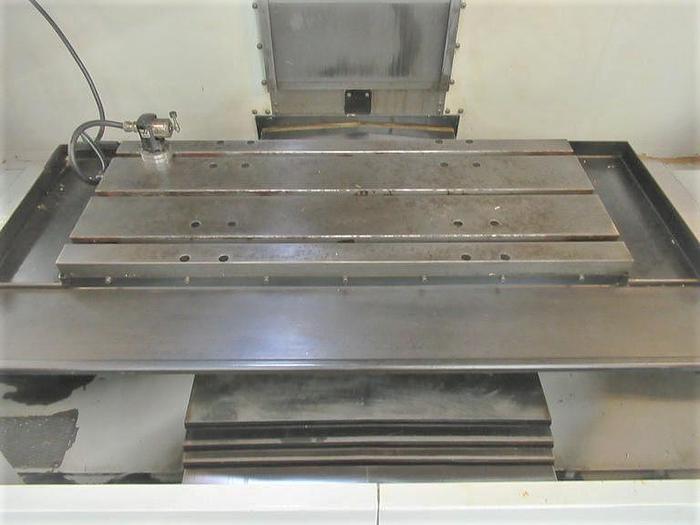

| Table Size | 36" x 14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 20 Station Umbrella Type ATC |
| Rapid Traverse Rates | 1,000 IPM |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 110" x 93" x 10405" |
| Machine Weight | 8,000 lbs |
