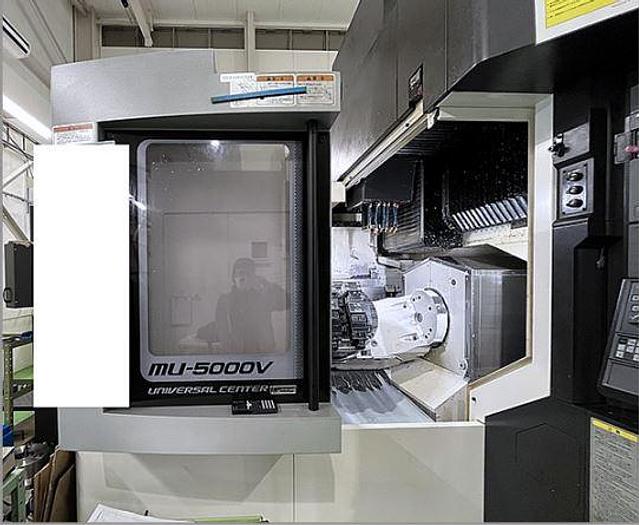

2016 Okuma MU-5000V 5 Axis Machine with 6 Pallet Changer
No longer available
2016 Okuma MU-5000V 5 Axis Machine with 6 Pallet Changer
$399,500 (USD)
Location:Illinois
Description

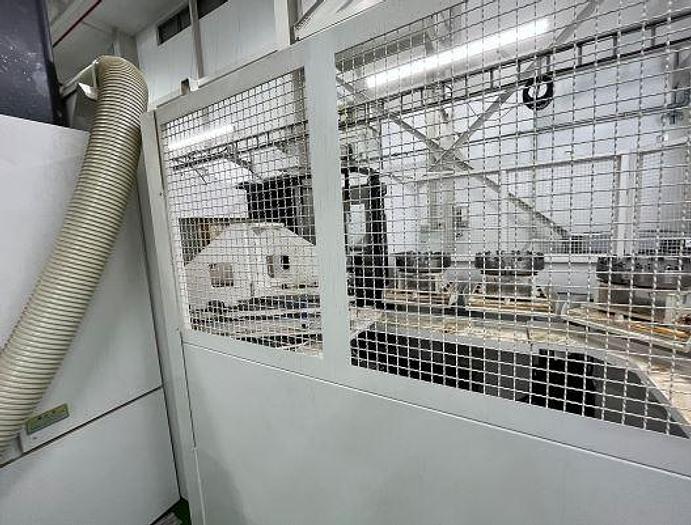

6 Pallet Pool System (19.69" x 19.69" pallets)

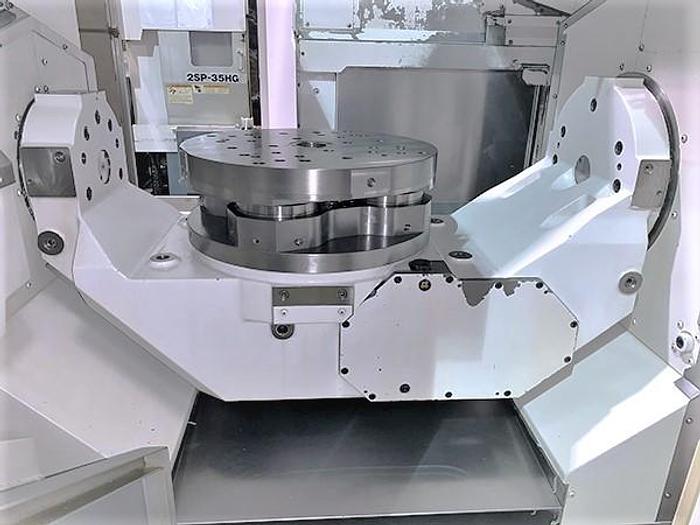

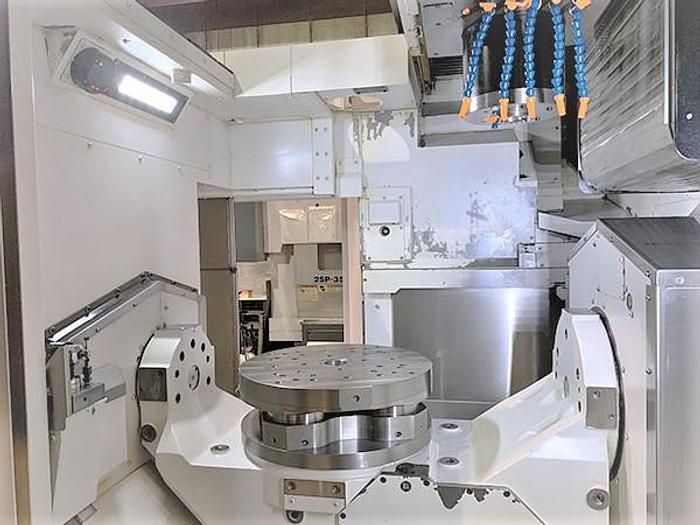

5 Axis Trunnion Table
Synchronized 5 Axis Machining

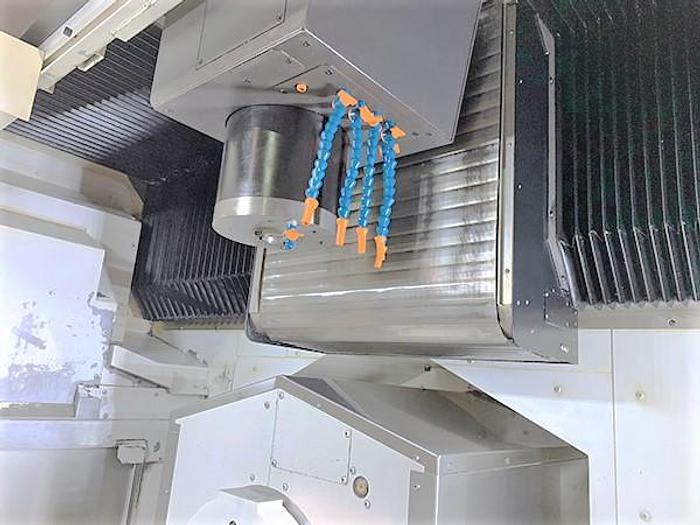

1,000 PSI Coolant Thru the Spindle

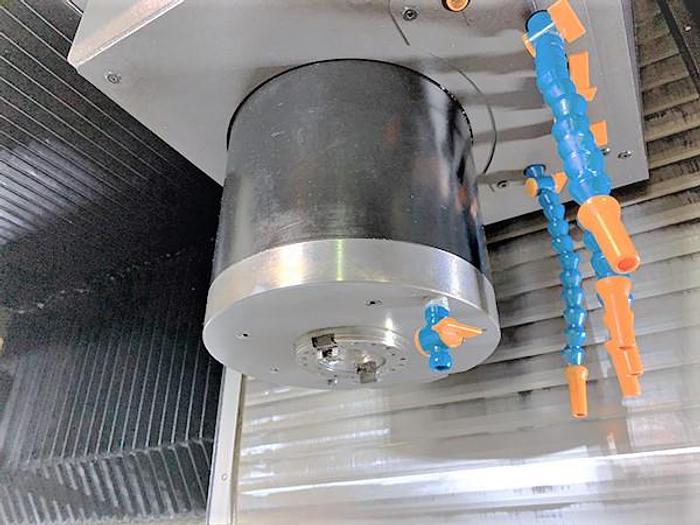

Upgraded 15,000 RPM Spindle
Absolute Scales on X, Y and Z Axis'
Renishaw RMP 60 Tool Probe

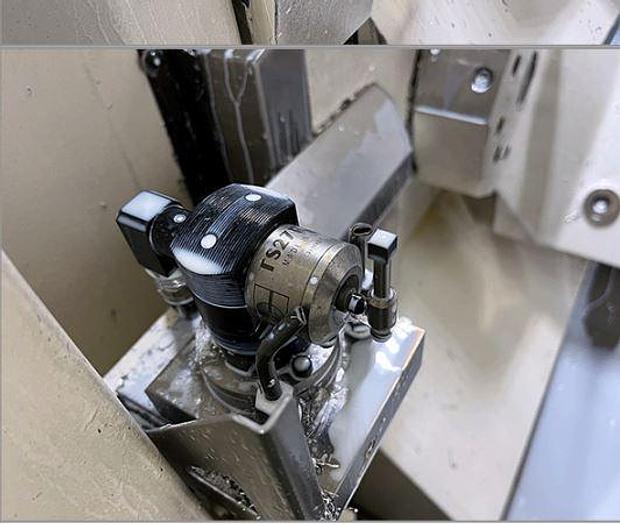

Renishaw TS27RT Tool Measurement System
Renishaw Tool Breakage Detection System

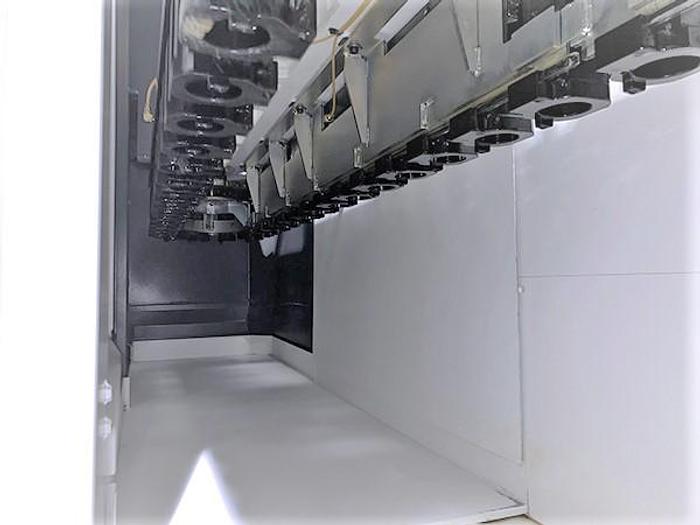

64 Position Tool Changer
Coolant Tanks w/ Drum Filtration System

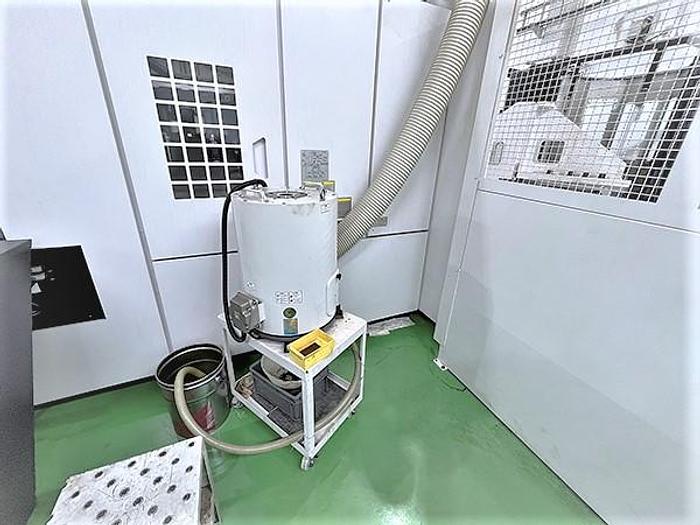

Mist Collector Unit
Through the Spindle Air Blow
Collision Prevention System
Upgrade 30/25 HP Spindle Motor

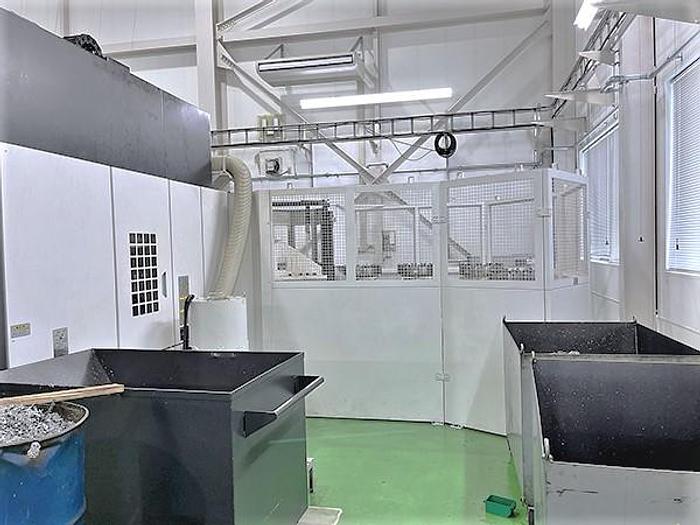

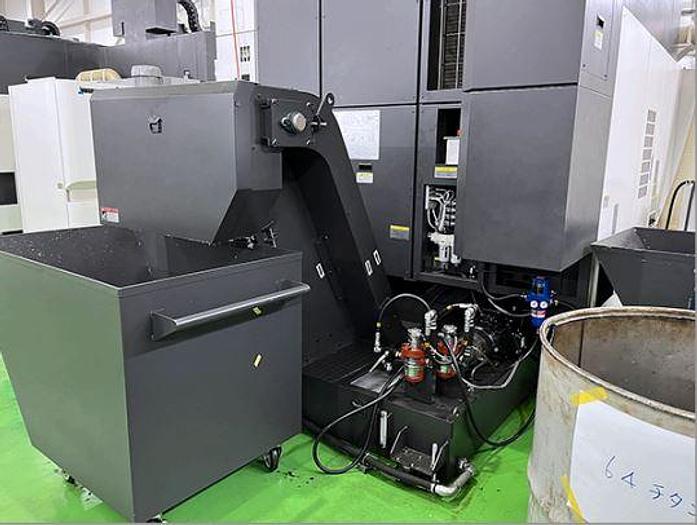

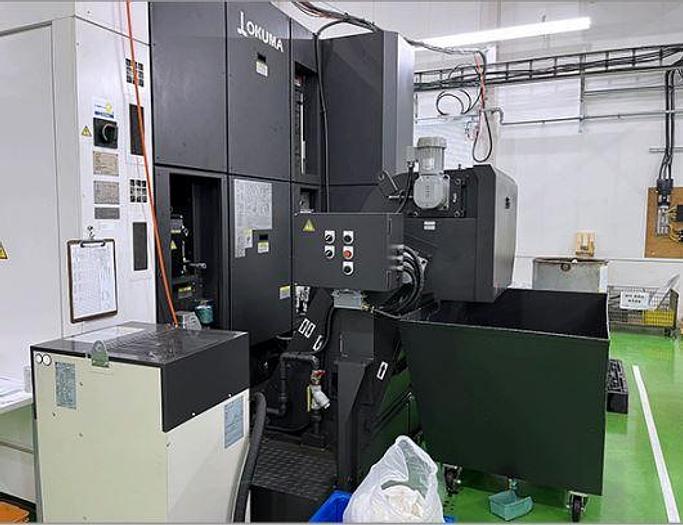

Chip Conveyor

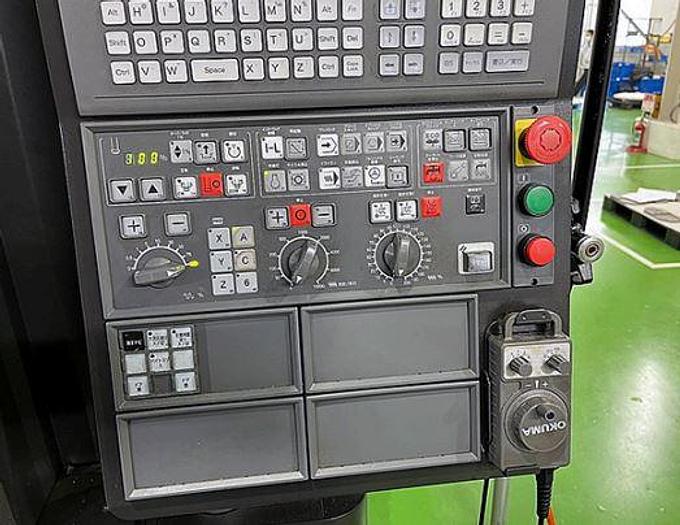

Remote Jog Handle
Super NURBS X/Y/Z/A&C
USB Port Interface
RS 232 Port Interface
Specifications
| Manufacturer | Okuma |
| Model | MU-5000V 6 Pallets |
| Year | 2016 |
| Condition | Used |
| Stock Number | 118250 |

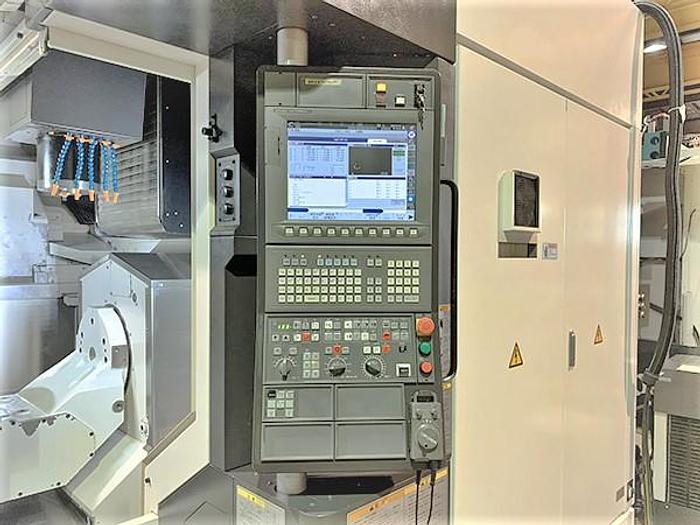

| Machine Control | OSP-300MA Control |
| Pallet Size / Number of Pallets | 19.69" Diameter / 6 Pallet Changer |
| Maximum Workpiece Size | 27.56" Diameter x 19.69" High |
| Maximum Table Load | 1,100 lbs |
| X-Axis Travel | 31.5" |
| Y-Axis Travel | 41.34" |
| Z-Axis Travel | 23.62" |
| A-Axis Travel | +90 Degrees to -120 Degrees (Trunnion Swivel) |
| C-Axis Rotation | 360 Degrees |
| Spindle Taper | BT 40 |
| Spindle Speed | 15,000 RPM |
| Spindle motor | 30HP / 25 HP |
| Tool Magazine Capacity | 64 Position Tool Changer |
| Machine Dimensions LxWxH | 210"x226"x136" |
| Machine Weight | 33,900 lbs |
