2016 Citizen A32
No longer available
2016 Citizen A32
$129,900 (USD)
Location:Wisconsin
Description
Rotary Guide Bushing with Adjustable Clamping
Synchronous Rotary Guide Bushing
High Pressure Coolant System

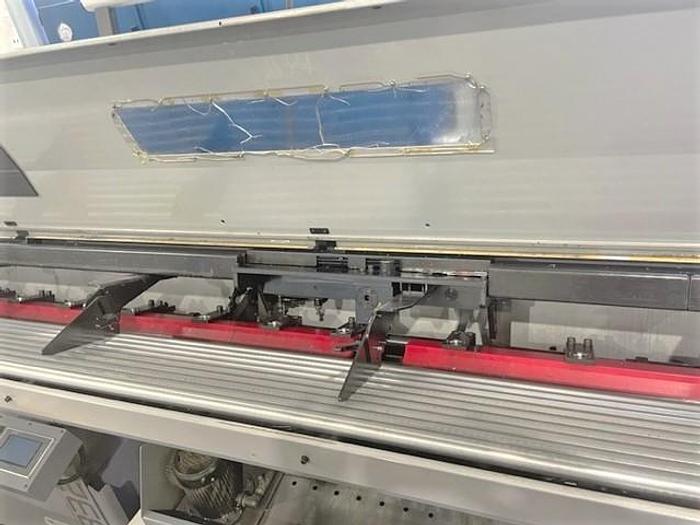

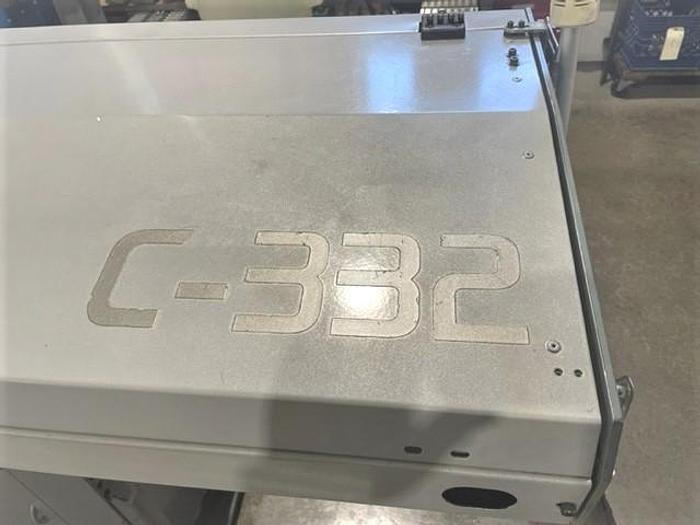

Citizen CAV C-332 Full Length Magazine Style Barfeed
Mist Collection Unit
Chip Conveyor
Ethernet Port Interface
RS 232 Port Interface
Specifications
| Manufacturer | Citizen |
| Model | A32 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 118242 |
| Machine Control | Mitsubishi Meldas M70 Control |
| Machining Diameter | 1.25" Both Spindles |
| Maximum Turning Length | 12.5" |
| Main Spindle Travel | 12.7" |
| Main & Subspindle Speeds | 8,000 RPM / 8,000 RPM |
| Main Spindle / Sub Spindle Motor | 10 HP / 5 HP |
| Subspindle X Axis Travel | 14.5" |
| Subspindle Z Axis Travel | 11.4" |
| Guide Bushing Holder / Positions | 1 / 10 Positions |
| Live Tool Positions / Speeds | 4 Positions / 5,000 RPM |
| End Attachment Positions | 4 Positions |
| Second Operation Positions | 5 Positions |
| Second Operation Live Positions / Speeds | 4 Positions / 5,000 RPM |
| Machine Dimensions LxWxH | 100" x 55" x 90" |
| Machine Weight | 7,700 lbs |
