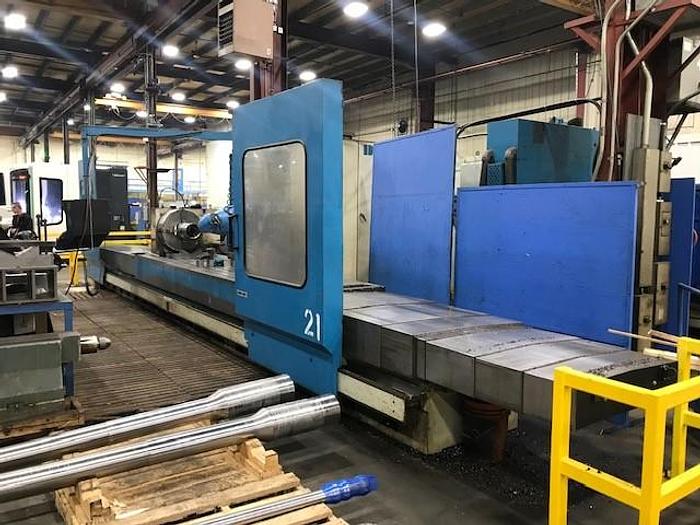

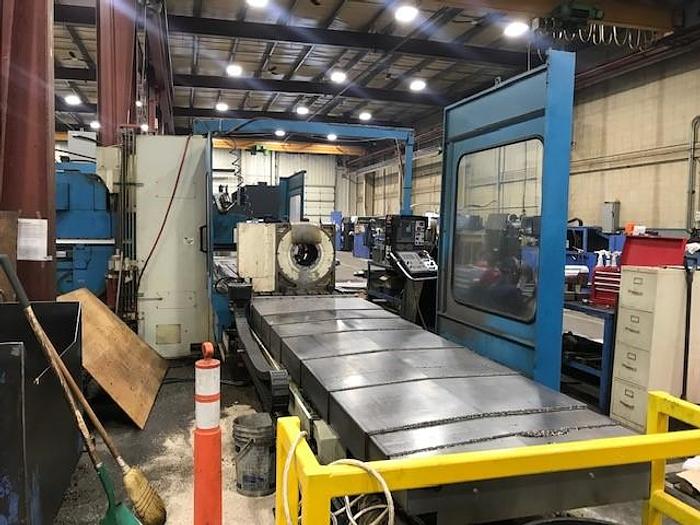

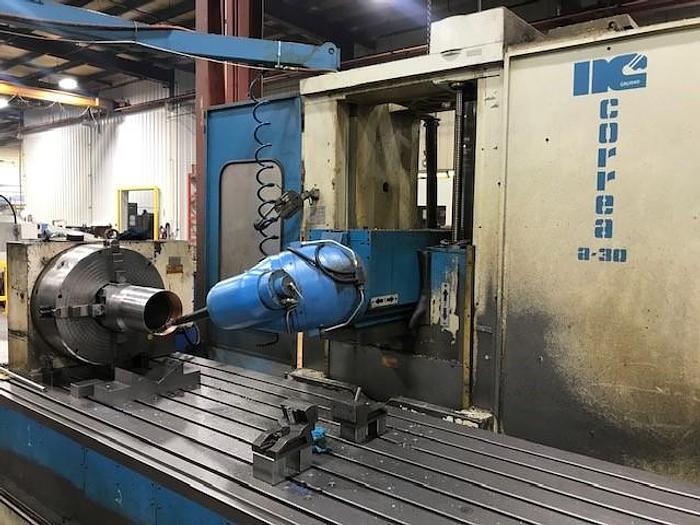

1997 Nicolas Correa A-30/50

No longer available

1997 Nicolas Correa A-30/50

$119,900 (USD)

Location:Canada

Description

25" 4th Axis w/ 9.5" Bore

Tailstock for 4th Axis with MT#6

Electronic Hand Wheel HR-330

Hydraulic Tool Clamping System

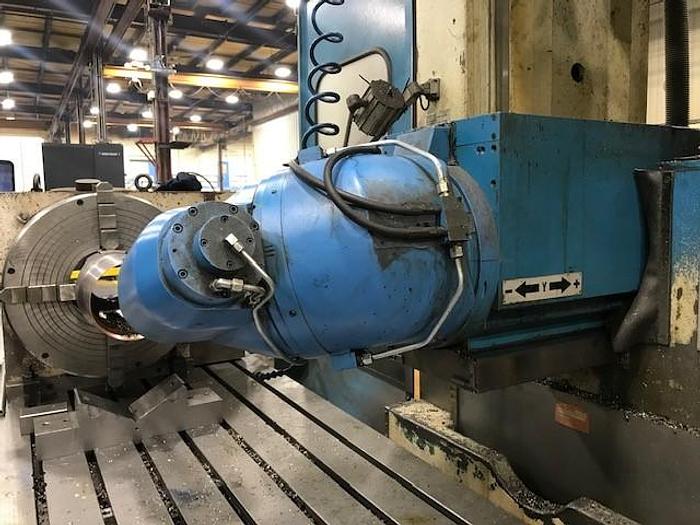

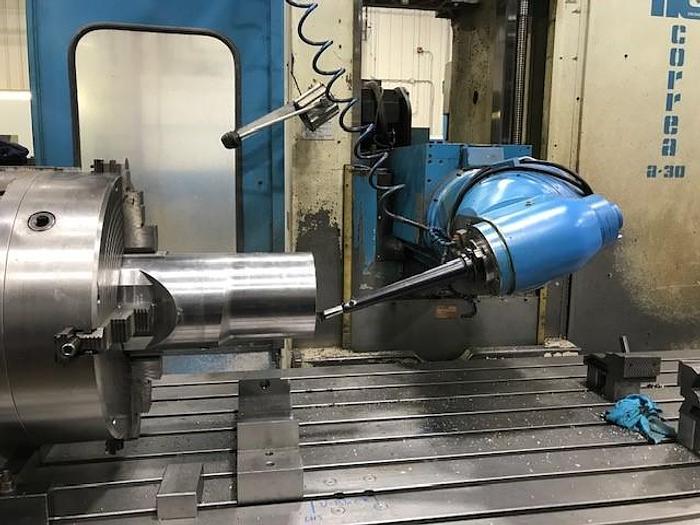

Universal Auto Indexing Milling Head 2.5 Degree Indexing

Automatic Static Tool Changer AES-8 Tools

Guarding

8-T-Slots on Table

RS 232 Port Interface

All Available Manuals

Specifications

ManufacturerNicolas Correa
ModelA-30/50
Year1997
ConditionUsed
Stock Number118235
Machine ControlHeidenhain TNC-426
Table Size198" x 44"
Maximum Table Load22,000 lbs
X-Axis Travel197"
Y-Axis Travel47"
Z-Axis Travel59"
Spindle TaperISO 50
Spindle Speeds20 - 3,000 rpm
Spindle Motor60 HP
Tool Magazine Capacity8 Position ATC
Rapid Traverse Rates X, Y / Z591 IPM / 591 IPM / 394 IPM
Cutting Feedrates197 IPM
Machine Dimensions LxWxH460"x190"x135"
Machine Weight56,217 lbs
