1996 Mori Seiki SL-35B/750
No longer available
1996 Mori Seiki SL-35B/750
$34,500 (USD)
Location:Alberta, Canada
Description
12" 3 Jaw Hydraulic Chuck
Geared Head Spindle
Hydraulic Tailstock
Tool Presetter
Chip Conveyor
Coolant System
Automatic Lubrication System
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mori Seiki |
| Model | SL-35B/750 |
| Year | 1996 |
| Condition | Used |
| Stock Number | 118227 |

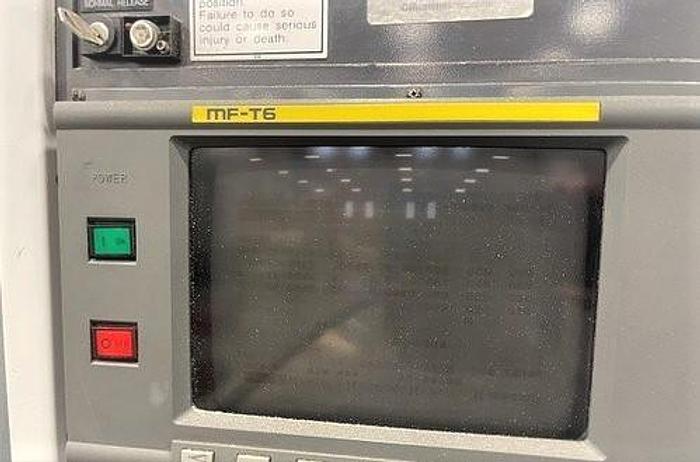

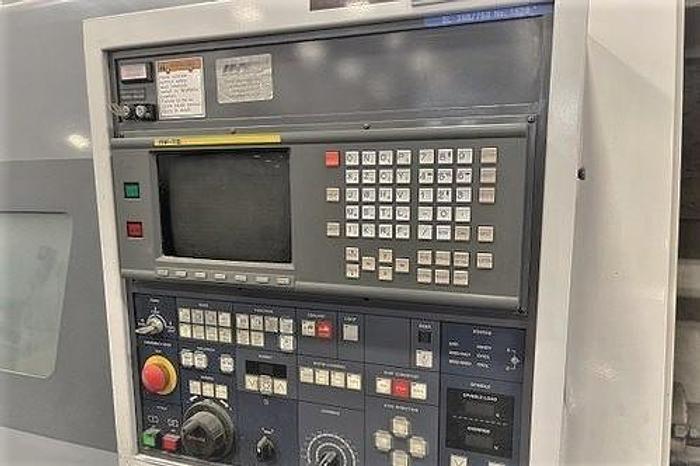

| Machine Control | Mori-Fanuc MF-T6 (FANUC 16T) CNC Control |
| Chuck size | 12" 3 Jaw Hydraulic Chuck |
| Swing over bed | 23.6" |
| Maximum machining diameter | 16.5" |
| Maximum Turning Length | 30.7" |
| Center distance | 36" |
| X-axis travel | 9.4" |
| Z-axis travel | 33.7" |
| Spindle Nose / Spindle Bore | A2-8" / 4.1" |
| Spindle speed | 25 ~ 2,500 RPM |
| Spindle motor | 22 HP |
| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates X / Z | 472 IPM / 591 IPM |
| Tailstock Body Travel / Quill Travel | 29.29" / 4.72" |
| Tailstock Quill Diameter / Center | 3.34" / MT #5 |
| Machine dimensions | 143" x 72" x 94" |
| Machine weight | 18,000 lbs. |
