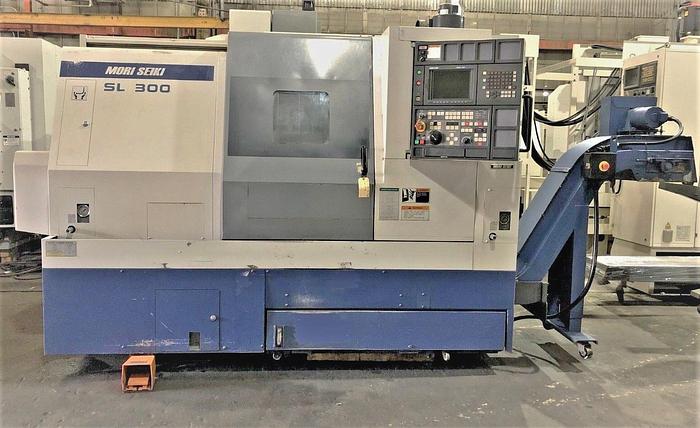

1992 Mori Seiki SL-300A/750
No longer available
1992 Mori Seiki SL-300A/750
$34,500 (USD)
Texas
Description
10" 3-Jaw Kitagawa Hydraulic Chuck (12" Capable)
2 Step gear spindle for powerful torque
Hydraulic Tailstock with Power Quill
Tool Presetter
Chip Conveyor
Coolant System
Automatic Lubrication System
Foot Operated Control
Wired 220V Electrics
Specifications
| Manufacturer | Mori Seiki |
| Model | SL-300A/750 |
| Year | 1992 |
| Condition | Used |
| Stock Number | 118226 |
| Machine Control | Fanuc MSC-501 |
| Chuck size | 10" 3 Jaw Hydraulic Chuck |
| Swing over bed | 28" |
| Maximum machining diameter | 16.5" |
| Maximum Turning Length | 27.9" |
| Center distance | 31.5" |
| X-axis travel | 9.84" |
| Z-axis travel | 31.49" |
| Spindle Nose / Spindle Bore | A2-8" / 3.1" |
| Spindle speed | 35 ~ 3500 RPM |
| Spindle motor | 20 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X / Z | 790 IPM / 940 IPM |
| Tailstock Body Travel / Quill Travel | 29.29" / 4.72" |
| Tailstock Quill Diameter / Center | 3.34" / MT #5 |
| Machine dimensions | 137" x 84" x 94" |
| Machine weight | 15,000 lbs. |
