2018 Haas ST-15 Chucker (no tailstock)
No longer available
2018 Haas ST-15 Chucker (no tailstock)
$42,950 (USD)
New York, NY
Description
8.3" 3 Jaw Hydraulic Chuck
Rigid Tapping
Coolant System with Tank & Pump
1 GB Program Memory
Early Power Failure Detection Module
Memory Lock Key Switch
Ethernet Interface
USB Port Interface
RS 232 Port Interface
All Available Manuals
All Available Tooling

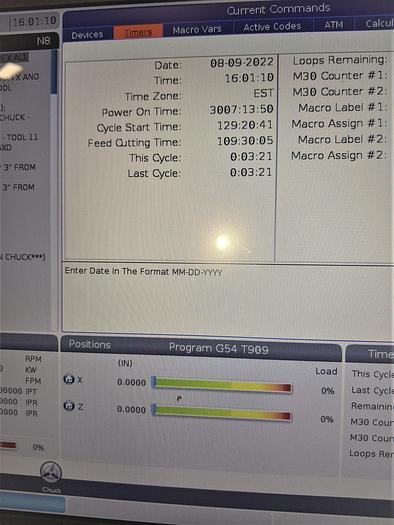

Power On Hours 3007
Cycle Start Hours 129
Feed Cutting Hours 109
** Very Low Hours, being replaced with larger machine
** Same Client Has both a 2019 Haas ST-10 Chucker for sale **
Specifications
| Manufacturer | Haas |
| Model | ST-15 Chucker |
| Year | 2018 |
| Condition | Used |
| Stock Number | 118224 |
| Machine Control | Haas NexGen Control |
| Chuck Size | 8.3" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 25.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 16" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 16" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Maximum Spindle Torque | 150 ft./lbs. @ 500 RPM |

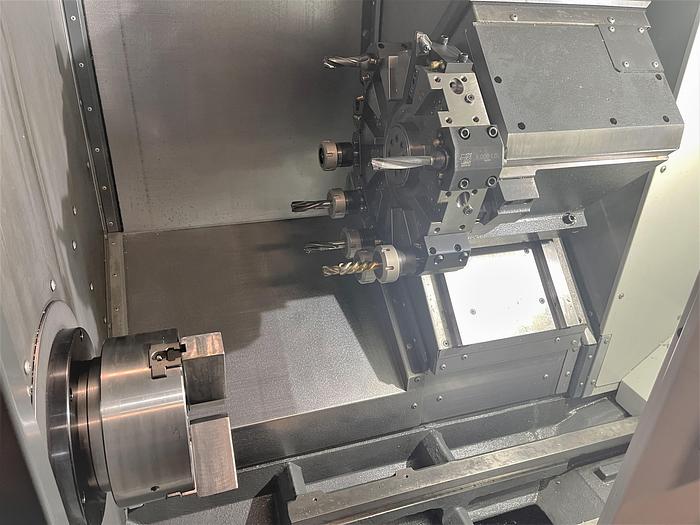

| Number of Turret Positions | 12 Bolt on Style |
| Rapid Traverse Rates | 1200 IPM |
| Machine Dimensions LxWxH | 123" x 73" x 80" |
| Machine Weight | 7,900 lbs. |
