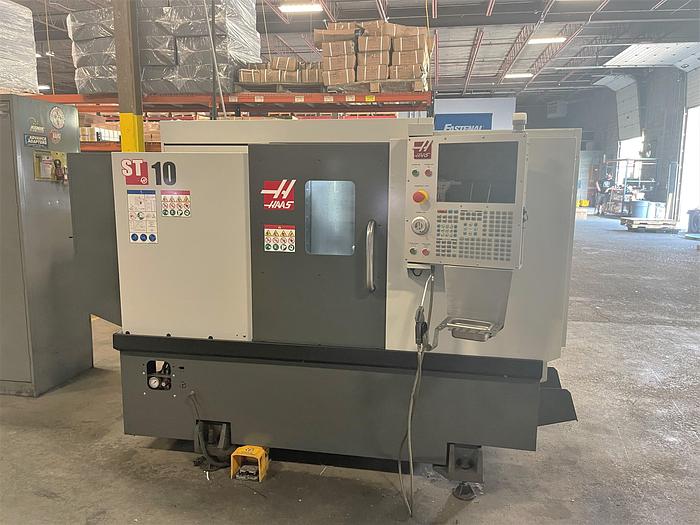

2019 Haas ST-10 Chucker (no tailstock)
No longer available
2019 Haas ST-10 Chucker (no tailstock)
$38,950 (USD)
New York, NY
Description
6.5" 3 Jaw Hydraulic Chuck
High Speed Brushless Servos
Rigid Tapping
Haas Connect Remote Monitoring
Media Display Mcode M130
Early Power Failure Detection
Ethernet Interface
USB Port Interface
RS 232 Port Interface
1 GB Program Memory
15" Color LCD Monitor
All Available Manuals
All Available Tooling
Power On Hours 3644
Cycle Start Hours 302
Feed Cutting Hours 246
**Very Low Hours, used to make small shafts**
**Located in shop that also has a 2018 Haas ST-15 chucker available**
Specifications
| Manufacturer | Haas |
| Model | ST-10 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118223 |
| Machine Control | Haas CNC Control |
| Chuck Size | 6.5" Hydraulic Chuck |
| Maximum Swing | 25.25" |
| Maximum Swing Over Cross Slide | 16.25" |
| Maximum Machining Diameter | 14" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 2.31" / 1.75" |
| Spindle Motor | 15 HP |
| Spindle Speeds | 6,000 RPM |
| Number of Turret Positions | 12 Bolt on Style |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 92" x 55" x 69" |
| Machine Weight | 6,420 lbs |
