1999 FPT Sirio-M Ram Type Traveling Column
No longer available
1999 FPT Sirio-M Ram Type Traveling Column
Location:Michigan
Description

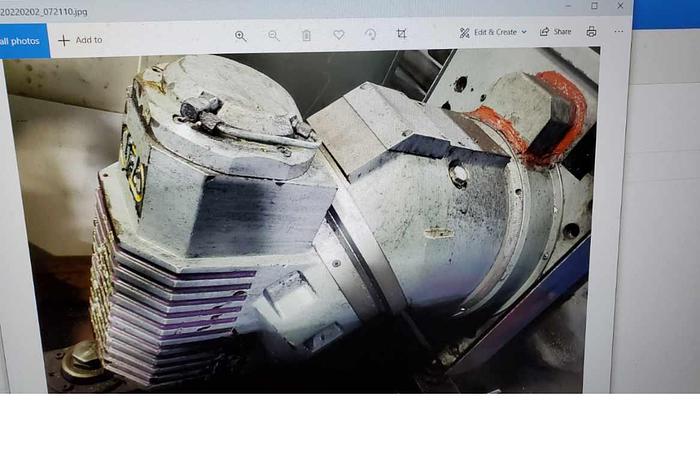

Changeable 3+2 Indexing Head 4,000 RPM

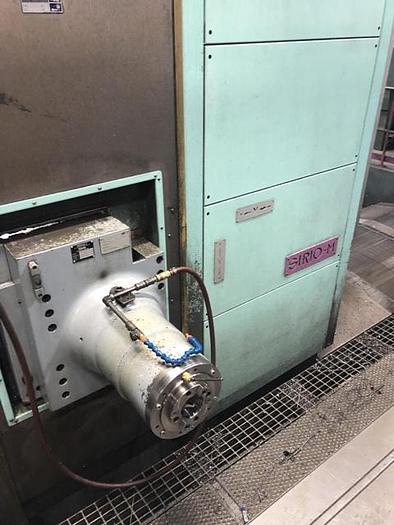

18,000 RPM Straight Head Attachment Rebuilt in 2021
**The 3+2 Head needs to be re-built**
They use the 18k rpm straight head
Specifications
| Manufacturer | FPT |
| Model | Sirio-M Ram Type Traveling Column |
| Year | 1999 |
| Condition | Used |
| Stock Number | 118222 |

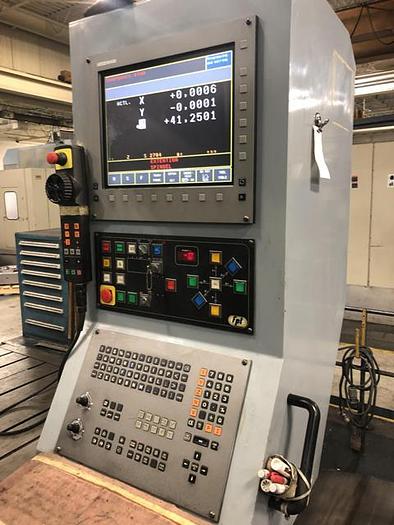

| Machine Control | Heidenhain 426 |

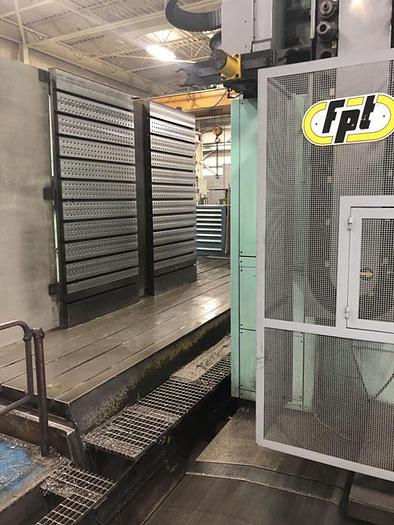

| Table Size | 236"x99" |
| Maximum Table Load | 80,000 lbs |
| X-Axis Travel | 157" |
| Y-Axis Travel | 78" |
| Z-Axis Travel | 42" |
| Spindle Speed | 4,000 rpm |
| Spindle Motor | 36 hp |
| Spindle Taper | #50 |
| Rapid Traverse Rates | 590 ipm |
| Tool Magazine Capacity | 40 atc |
