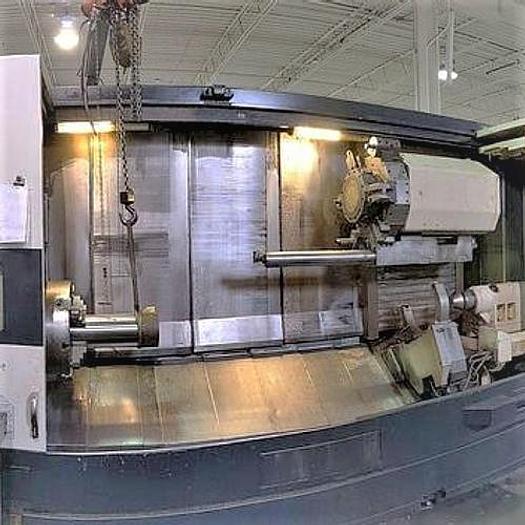

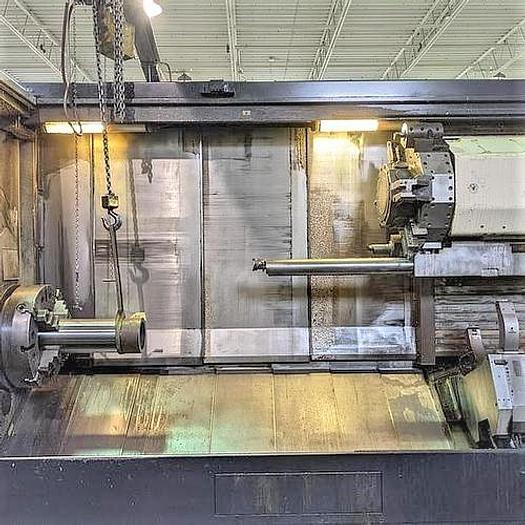

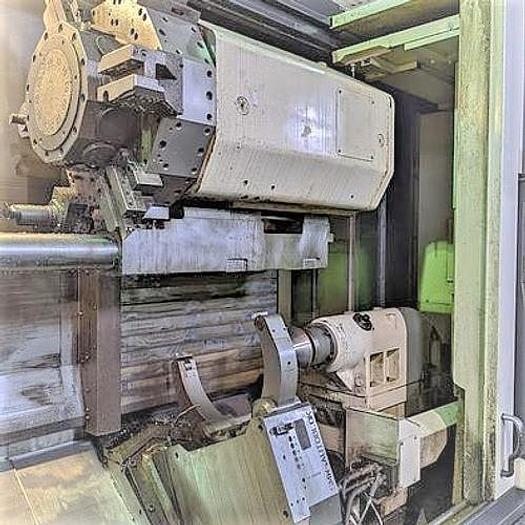

2006 Mazak Cybertech Turn 4500M/3000 Big Bore
2006 Mazak Cybertech Turn 4500M/3000 Big Bore
Contact us for price
Ontario, Canada
orCall (863) 439-6066
Description
Full "C" Axis Spindle Rotation Live Milling Capability
Optional 7.28" Big Bore Spindle Chip Conveyor
SMW K5.1 Single Auto Steady Rest Prep w/Bracket
LNS Autoblok K5.1 Steady Rest 3.94" to 16.1"

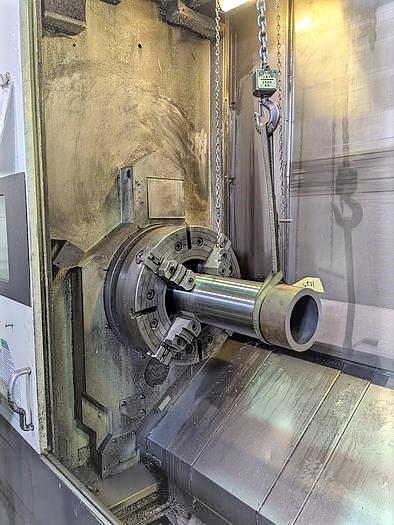

24" Diameter 4 Jaw Chuck Tool Presetter Fully Programmable Tailstock 120" Center Distance
213 PSI High Power Coolant
Long Boring Bar Stocker

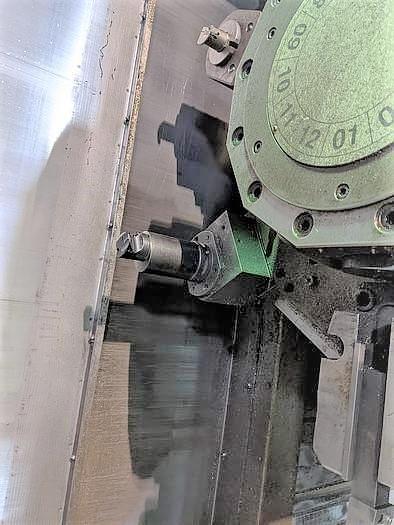

Long Boring Bar Holder Mill Tool Synchronous Tapping Thread Start Compensation Absolute Positioning System Prep for Rear Chuck Re-Threading Function
Multi Tap Transformer
3.5" Floppy Disk Interface
RS 232 Port Interface
Specifications
| Manufacturer | Mazak |
| Model | Cybertech Turn 4500M/3000 Big Bore |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118221 |
| Control | Mazatrol Fusion 640HT Pro |

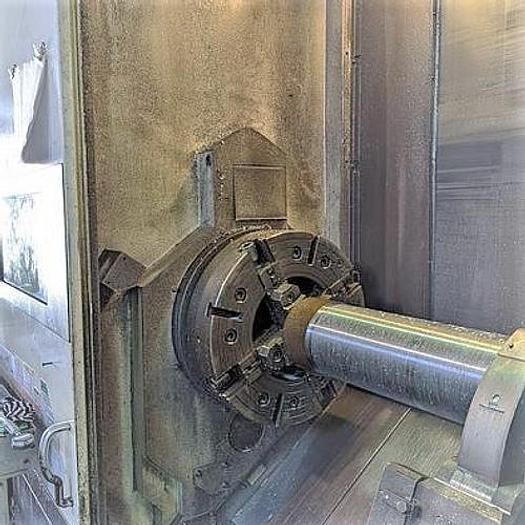

| Chuck Size | 24" |
| Maximum Swing | 33.86" |
| Maximum Machining Diameter | 31.89" |
| Maximum Swing Over Cross Slide | 27.5" |
| Maximum Machining Length | 120" |
| X-Axis Travel | 21.26" |
| Z-Axis Travel | 120" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-15" / 7.23" / 6.5" |
| Spindle Speeds | 0 - 2,400 RPM |
| Spindle Motor | 50 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 15 HP |

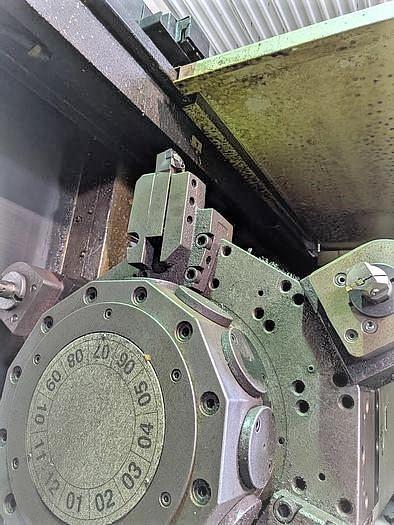

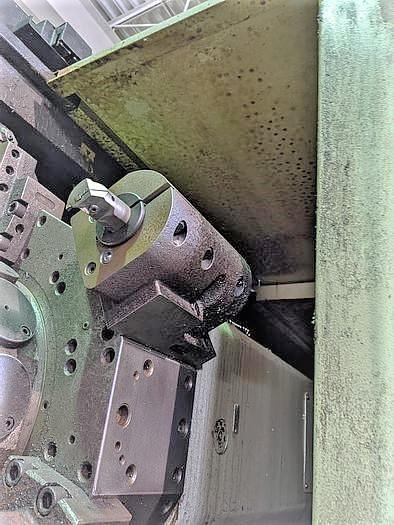

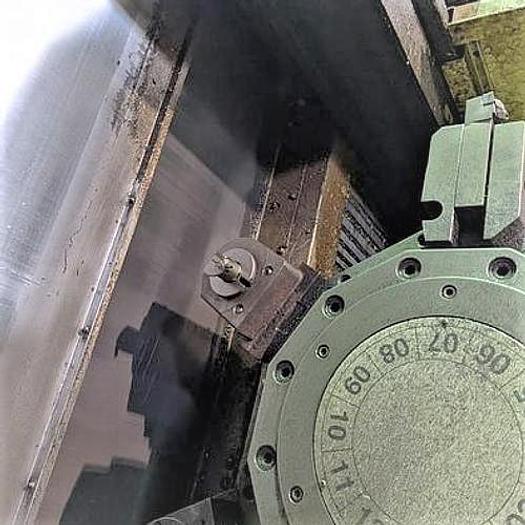

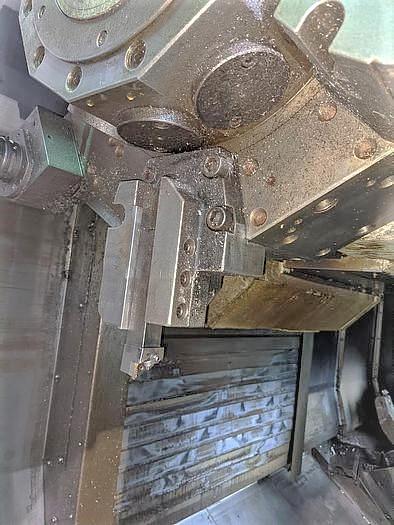

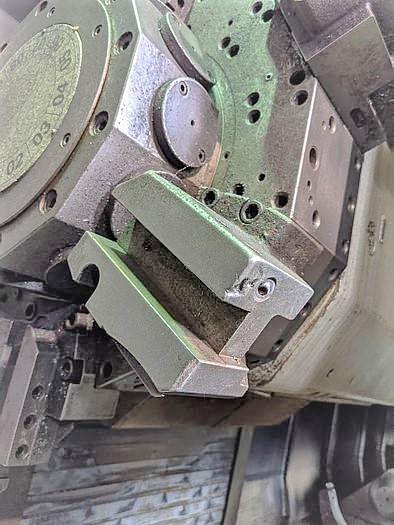

| Number of Turret Positions | 12 Station Turret |
| Tailstock Body Travel / Center | 120.08" / MT #5 |
| Rapid Traverse Rates X / Z | 945 IPM / 1181 IPM |
| Machine Dimensions | 24' x 9' 6" x 8' 4" |
| Machine Weight | 46,600 lbs. |
