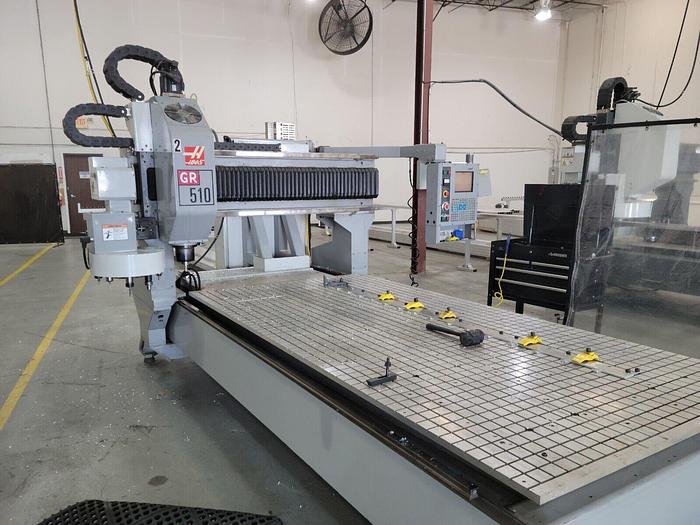

2003 Haas GR-510
No longer available
2003 Haas GR-510
$64,500 (USD)
Texas
Description
10 Station Tool Changer - BT40
15,000 RPM Spindle
Vacuum Table
Auto Air Gun
Rigid Tapping
RS232 Port Interface
Coolant System w/Tank & Pump
All Available Manuals
Wired 208/230 Volts
Full Load 40 Amps
Specifications
Manufacturer | Haas |
Model | GR-510 |
Year | 2003 |
Condition | Used |
Stock Number | 118219 |
Table Size | 122" x 59" |
Maximum Table Load | 6,000 lbs |
Distance Between Columns | 62" |
X-Axis Travel | 121" |
Y-Axis Travel | 61" |
Z-Axis Travel | 10" |
Spindle Speeds | 15,000 RPM |
Spindle Taper | BT 40 |
Spindle motor | 15 HP |
Tool Magazine Capacity | 10 Position Tool Changer |
Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
Maximum Cutting Rate | 800 IPM |
Rapid Traverse Rates (X, Y, Z) | 800 ipm, 2100 ipm, 1100 ipm |
Air Required | 4 CFM @ 100PSI |
Machine Dimensions LxWxH | 198" x 102" x 113" |
Machine Weight | 16,500 lbs |
