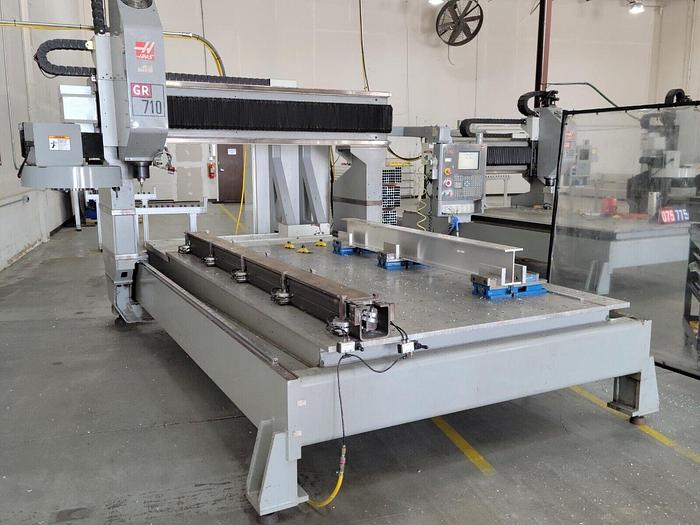

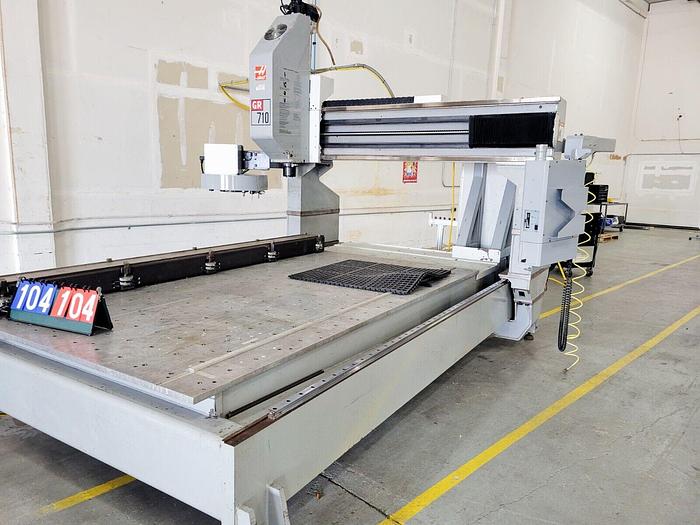

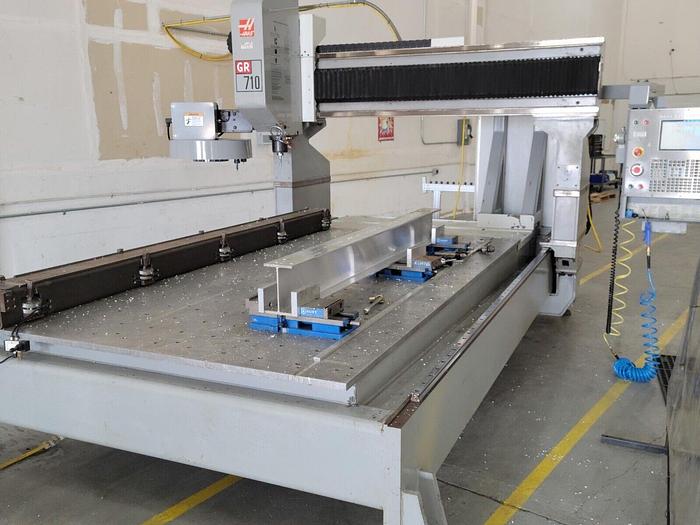

2005 Haas GR-710
No longer available
2005 Haas GR-710
$84,500 (USD)
Texas
Description
12" Riser for Extended 24" Z-Axis Travel
15,000 RPM Spindle
20 Station Tool Changer Option
Coolant Thru the Spindle
Auxiliary Coolant Filter
Programmable Coolant Nozzle (Gantry)
Remote Jog Handle
Rigid Tapping
3.5" Floppy Disk Drive
RS232 Port Interface
Coolant System w/ 80 Gallon Tank & 3/4 HP Pump
All Available Manuals
Wired 208/230 Volts
Full Load 40 Amps
Specifications
| Manufacturer | Haas |
| Model | GR-710 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118218 |
| Table Size | 122" x 72" |
| Maximum Table Load | NA |
| Distance Between Columns | 86" |
| X-Axis Travel | 121" |
| Y-Axis Travel | 85" |
| Z-Axis Travel | 24" (Extended) |
| Spindle Speeds | 15,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle motor | 15 HP |
| Tool Magazine Capacity | 20 Position ATC |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Maximum Cutting Rate | 800 IPM |
| Rapid Traverse Rates (X, Y, Z) | 800 IPM / 2100 IPM / 1100 IPM |
| Machine Dimensions LxWxH | 253" x 164" x 99" |
| Machine Weight | 19,500 lbs |
