2000 Okuma ES-L10
No longer available
2000 Okuma ES-L10
$23,500 (USD)
Location:California
Description

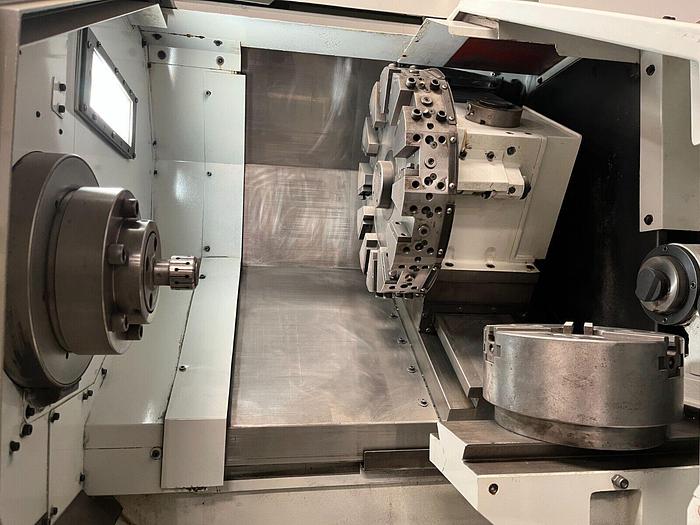

10" 3 Jaw Hydraulic Chuck
12 Station Turret
Hydraulic Tailstock

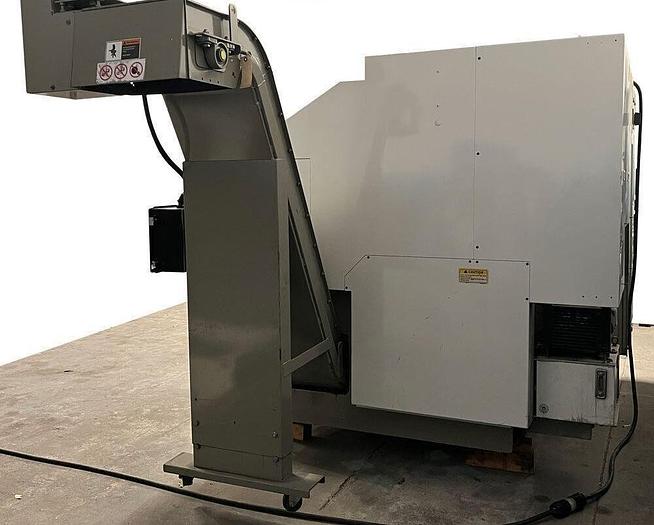

Chip Conveyor
One Tough IGF Conversational Style Programming
Floppy Disk Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Foot Pedal for Chuck & Tailstock
All Available Manuals

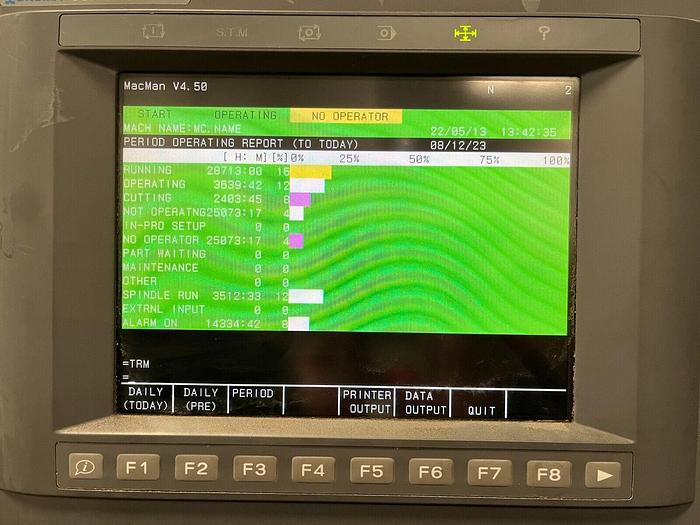

Operation Hours 3,639
Cutting Hours 2,403
Spindle Run Hours 3,512
Specifications
| Manufacturer | Okuma |
| Model | ES-L10 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 118217 |

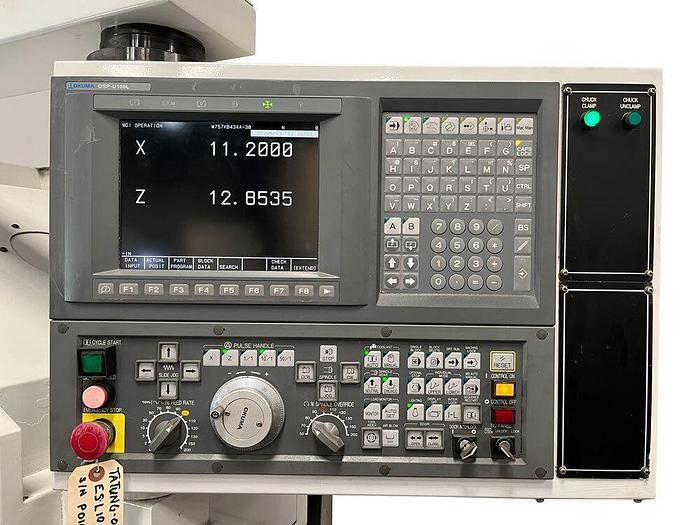

| Machine Control | Okuma OSP U100L |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 21.65" |
| Maximum Swing Over Cross Slide | 12.2" |
| Maximum Machining Length | 19.68" |
| X-Axis Travel | 8.1" |
| Z-Axis Travel | 20.47" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.15" / 2.75" |
| Spindle Speed | 3,000 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 787 IPM / 984 IPM |
| Machine Dimensions LxWxH | 140" x 68" x 80" |
| Machine Weight | 8,500 lbs |
