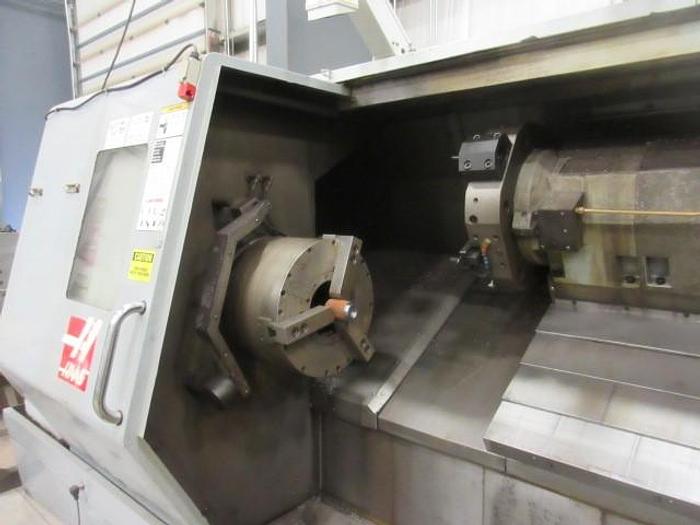

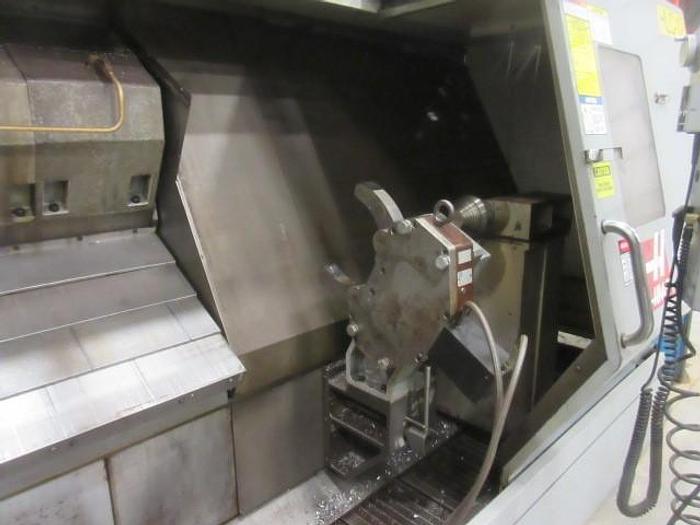

2007 Haas SL-40LB

2007 Haas SL-40LB

$79,500 (USD)


orCall (863) 439-6066


Big Bore Spindle with 6.5" Bar Capacity Tool Presetter Chip Conveyor - Belt Style Extra Performance Package with 55 HP Spindle Motor

Fully Programmable Tailstock

Hydraulic Steady Rest

High Pressure Coolant System

Remote Jog Handle

Spindle Orientation

Visual Quick Code Programming

High Intensity Lighting

Early Power Failure Detection Module 2 Speed Geared Headstock

Ethernet Interface RS 232 Port Interface Rigid Tapping All Available Manuals

All Available Tool Blocks


Stock Number118216

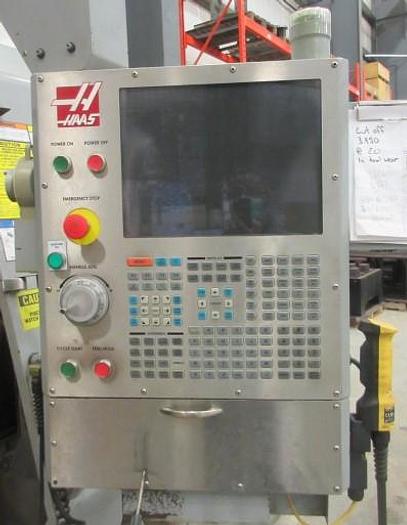

ControlHaas 32 BIT
Maximum Swing40"
Maximum Swing Over Cross Slide25"
Maximum Cutting Diameter25.5"
Maximum Cutting Length80"
Maximum Distance Between Centers81"
Maximum Bar Capacity6.5"
X-Axis Travel17"
Z-Axis Travel80"
Spindle Nose / Spindle BoreA2-11" / 7.0"
Spindle Speeds1,400 RPM
Spindle Motor55 HP
Number of Turret Positions12 Station Turret
Rapid Traverse Rates710 IPM
Tailstock Body Travel / Tailstock Taper74" / MT #5
Machine Dimensions195" x 102" x 89"
Machine Weight27,000 lbs.
