2002 Daewoo Puma 300LB
No longer available
2002 Daewoo Puma 300LB
$39,500 (USD)
Location:Illinois
Description

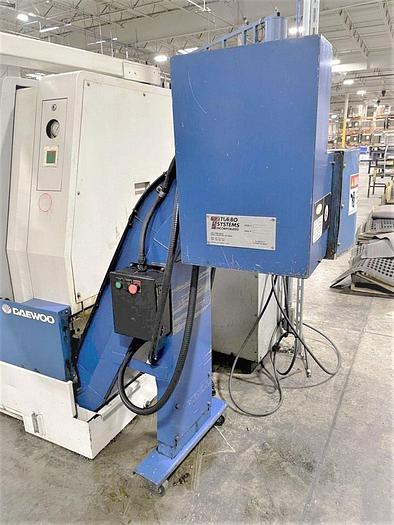

10" 3 Jaw Hydraulic Chuck Programmable Tailstock Chip Conveyor
Tool Presetter Coolant Tank with Pump
Card Interface RS 232 Port Interface All Available Tooling All Available Manuals

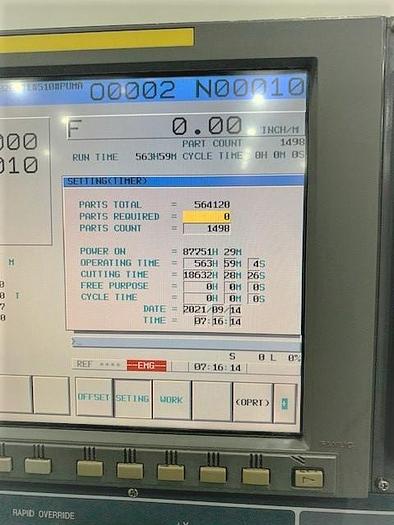

18,632 Cutting Hours
Specifications
| Manufacturer | Daewoo |
| Model | Puma 300LB |
| Year | 2002 |
| Condition | Used |
| Stock Number | 118212 |

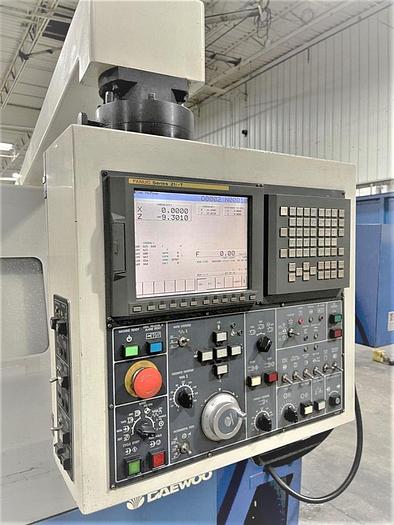

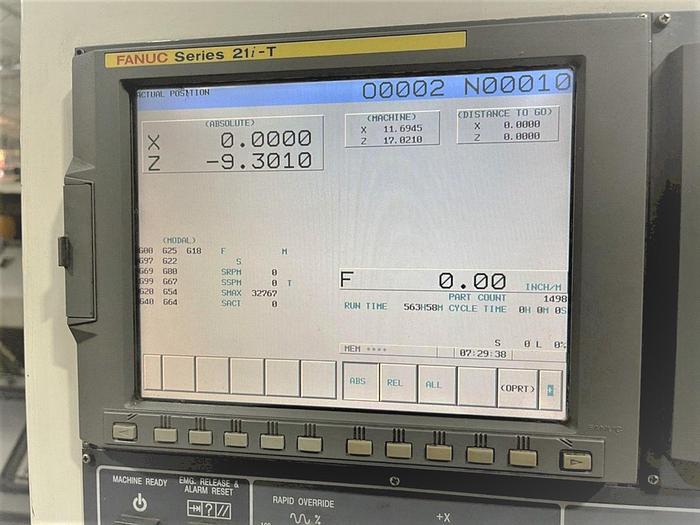

| Control | Fanuc 21i-T |

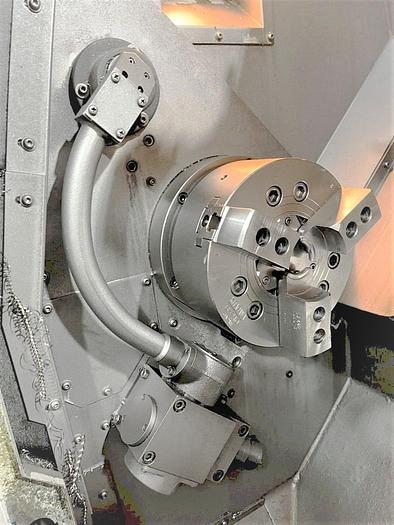

| Chuck Size | 10" 3 Jaw Chuck |
| Maximum Swing over Bed | 23.2" |
| Maximum Turning Diameter | 15.7" |
| Maximum Turning Length | 51.1" |
| Maximum Bar Capacity | 3.03" |
| X-Axis Travel | 11.1" |
| Z-Axis Travel | 52.4" |
| Spindle Nose / Spindle Bore | A2-8" / 3.54" |
| Spindle Speeds | 30 - 3,500 RPM |
| Spindle Motor | 30 HP |
| Transmission | 2 Speed Gearbox |

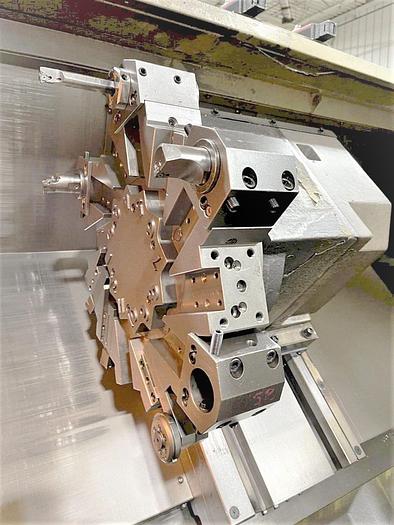

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 945 IPM |
| Tailstock Quill Diameter / Travel | 3.94" / 3.94" |
| Machine Dimensions | 162" x 75" x 80" |
| Machine Weight | 15,500 lbs. |
