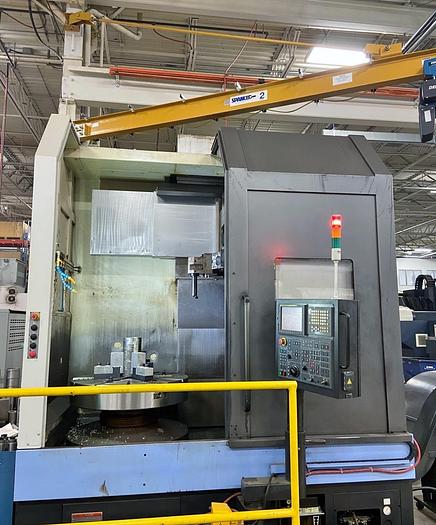

2009 Doosan Puma VT1100M
No longer available
2009 Doosan Puma VT1100M
$149,950 (USD)
Ontario, Canada
Description
C Axis Table Rotation
Live Milling/Drilling Capability

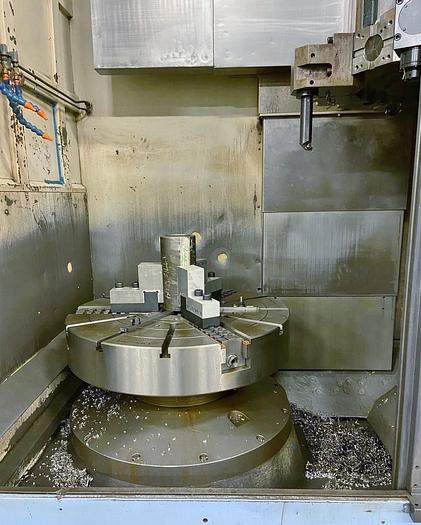

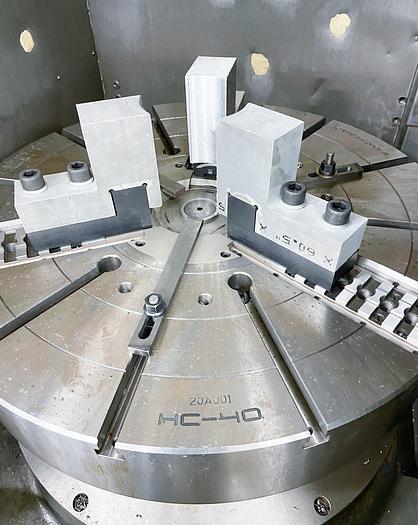

40" Samchully 3 Jaw Hydraulic Chuck
40" 3 Jaw Manual Chuck

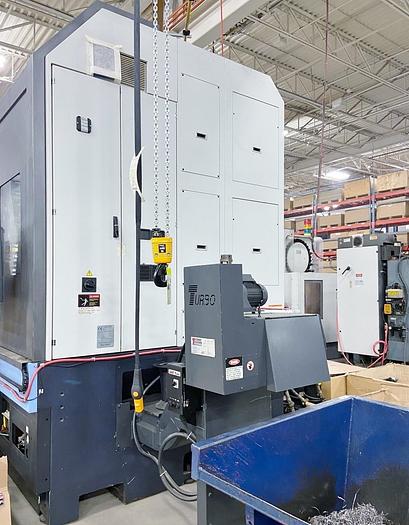

Chip Conveyor
Auto Door
Gearbox
Solid Boxed Ways
145 PSI Coolant
RS 232 Port Interface
(2) Radial Live Tool Holders
(2) Axial Live Tool Holders
7020 Cutting Hours as of July 2022
*New Y Axis Bearings Installed in 2020
*Machine has Primarily Cut 4140 and 4130 Steel
*Compare to Full Replacement Cost of $525,000
*In Plant Under Power, Available Immediately
Specifications
| Manufacturer | Doosan |
| Model | Puma VT1100M |
| Year | 2009 |
| Condition | Used |
| Stock Number | 118210 |
| Chuck size | 40" Samchully Hydraulic Chuck |
| Maximum weight on table | 4,400 lbs. |
| Maximum swing | 50" |
| Maximum turning diameter | 43.3" |
| Maximum cutting height | 39.37" |
| X axis travel | 22.8" |
| Z axis travel | 39.37" |
| Spindle speed | 850 RPM - 2 Ranges |
| Spindle motor | 75 HP |
| Milling Spindle Speed | 3,000 RPM |
| Milling Spindle Motor | 15 HP |

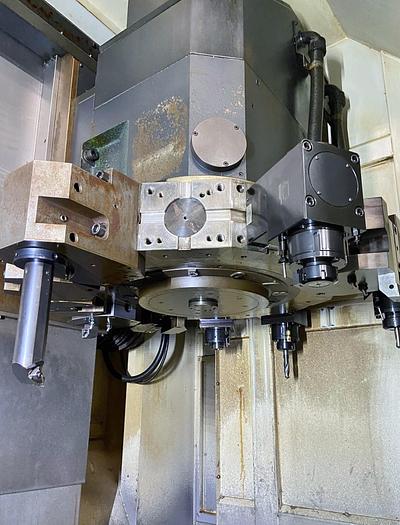

| Number of turret positions | 12 Station Drum |
| Rapid Traverse Rates | 787 IPM |
| Machine dimensions | 76" x 121" x 125" |
| Machine weight | 20,800 lbs. |
