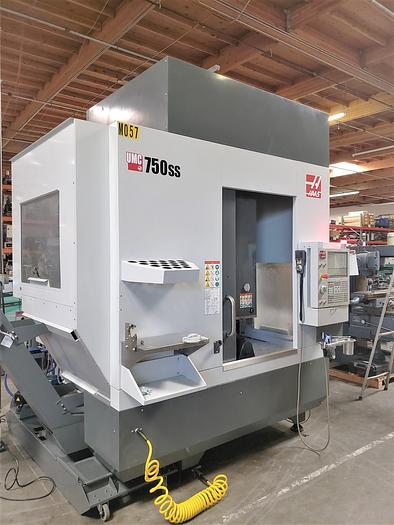

2019 Haas UMC-750SS
No longer available
2019 Haas UMC-750SS
$184,500 (USD)
California
Description

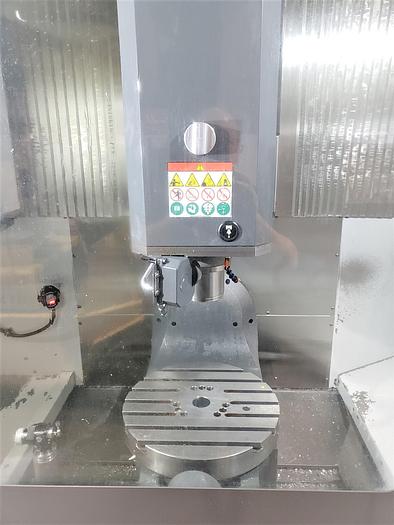

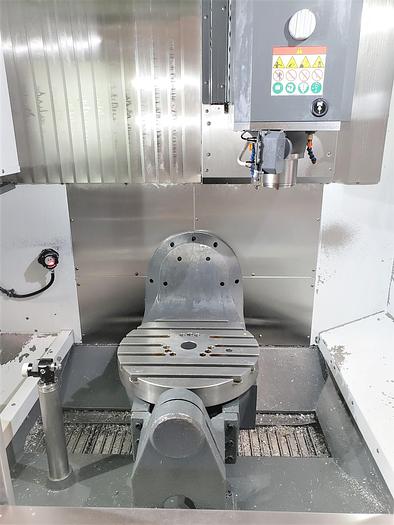

Trunnion Style 5th Axis Table
Coolant Through the Spindle

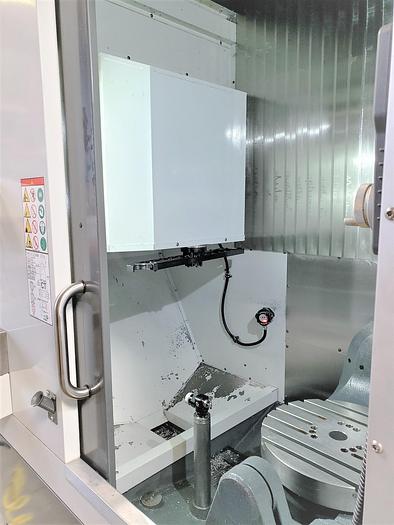

Renishaw Probing

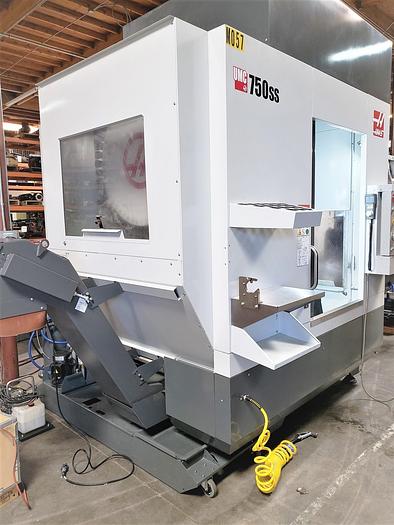

Chip Conveyor

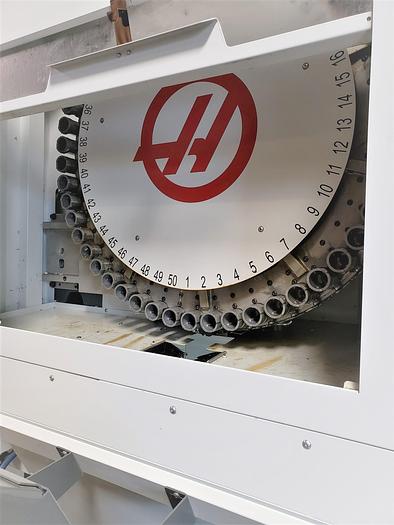

50 Station Tool Changer
12,000 RPM Spindle
Through the Tool Air Blast
Programmable Coolant Nozzle
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
High Speed Machining
Dynamic Work Offsets
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Machine Has Been Provisioned For An Air Vise
All Available Manuals
Wired 220V 3 Phase Power

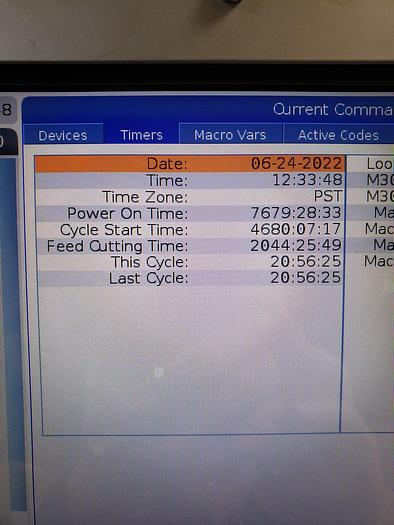

Approximately 2700 Spindle Run Hours
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118209 |
| Table size | 24.8" Long x 19.7" Wide |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 50 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
