2008 Mazak Nexus QTN 250-II MY
No longer available
2008 Mazak Nexus QTN 250-II MY
$89,950 (USD)
Oregon
Description
Y Axis Capability (Off Center)
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
10" 3 Jaw Hydraulic Chuck
Automatic Tool Eye
Chip Conveyor
Parts Catcher
Programmable Tailstock
Mill Spindle Synchronous Tapping
USB Port Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Chuck Air Blast - Second Spindle
EIA/ISO Input Function for G Code Programming
Multi Tap Transformer
Wired 208V 3 Phase Currently
Various Soft Jaws
(1) Set Hard Jaws
(1) Riten Live Tailstock Center
(5) Live Tool Holders
(5) Turning Blocks
(3) Boring Bar Holders
All Available Manuals
Auto Operation Hours - 1,564 hrs
Auto Cut Hours - 840 hrs
Total Cut Hours - 595 hrs
*Machine New in December of 2008
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 250-II MY |
| Year | 2008 |
| Condition | Used |
| Stock Number | 118208 |

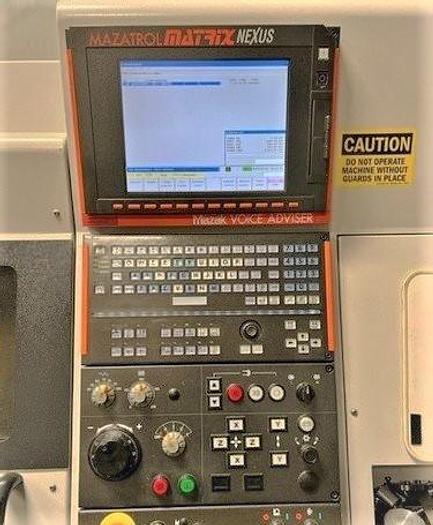

| Control | Mazatrol Matrix Nexus |
| Chuck Sizes | 10" 3 Jaw Hydraulic |
| Maximum Swing/Over Carriage | 26.5" / 14" |
| Maximum Cutting Diameter | 14.75" |
| Maximum Cutting Length | 21.28" |
| Distance Between Centers | 27.231" |
| X-Axis Travel | 9.055" |
| Y-Axis Travel | 4" (+/- 2.0") |
| Z-Axis Travel | 22.75" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Spindle Speed | 35 - 4,000 RPM |
| Spindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Tailstock Taper | 21.75" / MT #5 |
| Machine Dimensions | 116" x 74" x 73" |
| Machine Weight | 12,500 lbs. |
