1997 Haas VF2B
No longer available
1997 Haas VF2B
$13,500 (USD)
Location:New York, NY
Description
2 Speed Geared Transmission Auger Style Chip Conveyor Programmable Coolant Nozzle
Remote Jog Handle RS 232 Port Interface Complete Coolant System with Tank & Pump Wired 208/230 Voltage Electrics All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF2B |
| Year | 1997 |
| Condition | Used |
| Stock Number | 118203 |

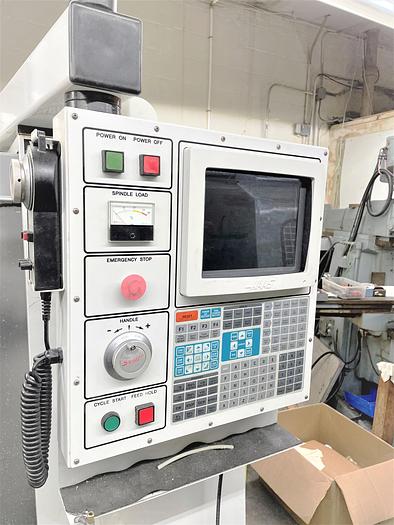

| Control | Haas CNC Control |
| Table Size | 36"x14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Speed | 7,500 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 20 Station Umbrella ATC |
| Rapid Traverse Rates | 710 IPM |
| Distance Spindle Nose to Table Top | 4" to 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x92.5"x104" |
| Machine Weight | 8,000 lbs |
