2020 Haas ST-15 w/Subspindle
No longer available
2020 Haas ST-15 w/Subspindle
$97,500 (USD)
Illinois
Description
Royal Collet Chuck on Main Spindle
3-Jaw Chuck on Subspindle

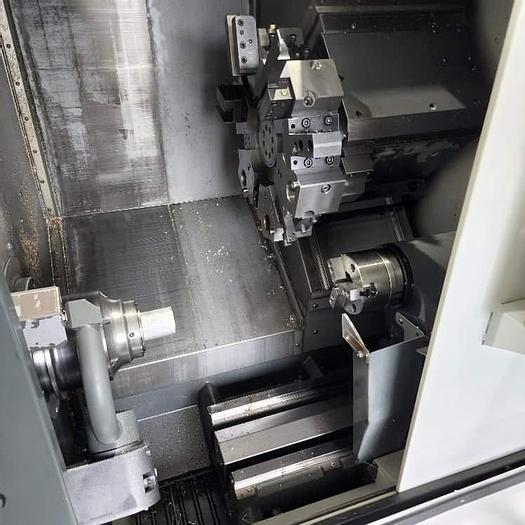

12 Station VDI/BOT Hybrid Turret
Tool Presetter
Subspindle

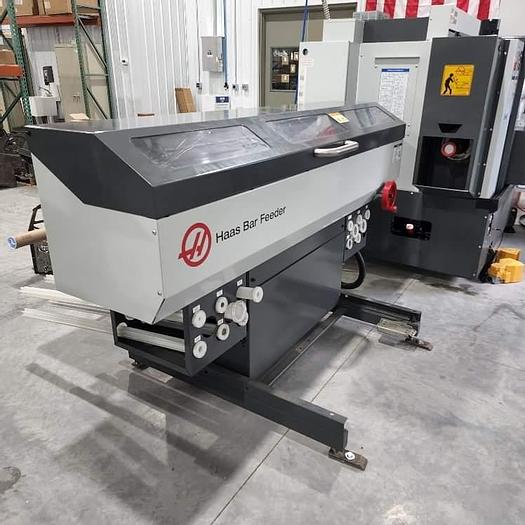

Barfeeder w/liners
Parts Catcher
Chip Conveyor
Auto Door
Rigid Tapping
User Definable Macros
Cabinet Cooler
Visual Part Programming System
Ethernet Interface
1GB Memory
WiFi
Haas Connect
Wired 220V
30 Gallon Coolant Tank
All Available Manuals
2,060 Spindle Hours
*Price as new today at over $120,000
*Rigging is the responsibility of the buyer
*New Rota Rack at an additional cost
*Mist Away Coolant Mist Collector available at an additional cost
Specifications
| Manufacturer | Haas |
| Model | ST-15 w/Subspindle |
| Year | 2020 |
| Condition | Used |
| Stock Number | 118199 |
| Machine Control | Haas NextGen Control |
| Chuck Sizes Main / Subspindle | Royal Collet Chuck / 5" 3-Jaw |
| Maximum Swing | 25.25" |
| Maximum Machining Diameter | 16.5" |
| Maximum Machining Length | 14" |
| X-Axis Travel | 7.9" |
| Z-Axis Travel | 16" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 2.5" |
| Subspindle Nose / Bore / Bar Capacity | A2-5" / 2.4" / 2" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Subspindle Speed | 4,000 RPM |
| Subspindle Motor | 10 HP |
| Number of Turret Positions | VDI/BOT 12 Station |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 126"x70"x81" |
| Machine Weight | 7,900 lbs. |
