2010 Doosan Puma 2000SY
No longer available
2010 Doosan Puma 2000SY
$99,500 (USD)
Illinois
Description
C Axis Spindle Rotation-Both
Live Milling/Drilling Capabiltiy
Y-Axis Capabilty
Subspindle

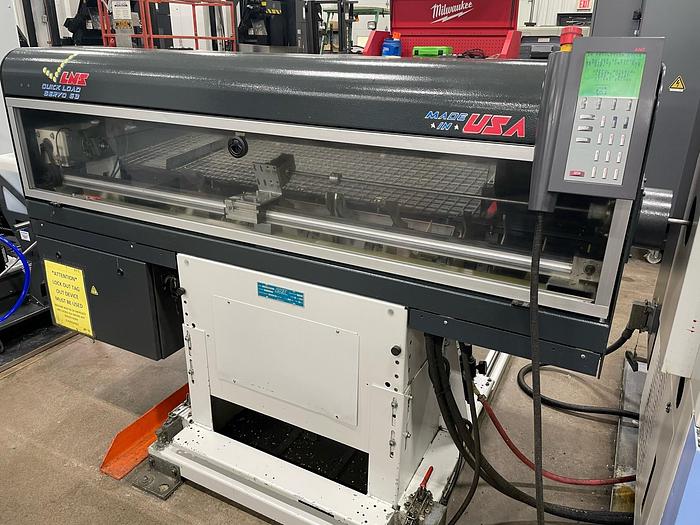

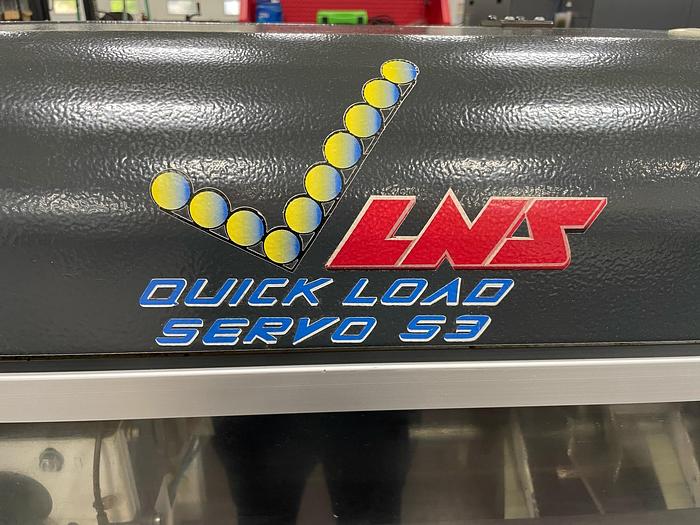

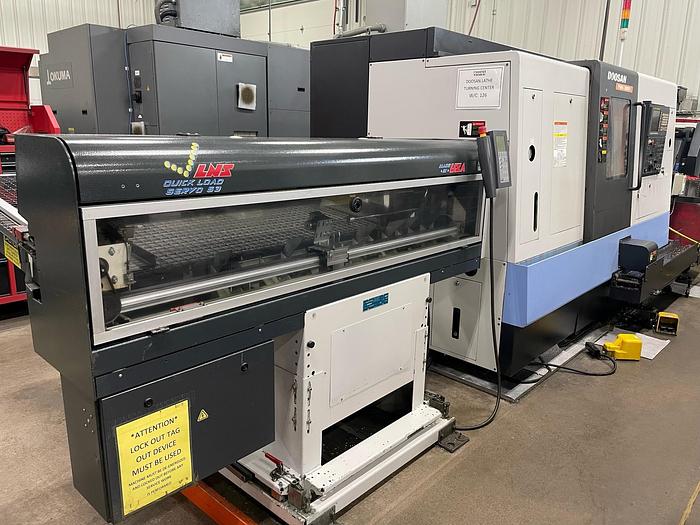

LNS Quick Load Servo S3 Short Bar Loader
Collet Chucks on Both Spindles
Chip Conveyor
Tool Eye
Parts Catcher
Parts Conveyor
Boxed Way Construction
Coolant System with Tank & Pump
RS 232 Port Interface
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Doosan |
| Model | Puma 2000SY |
| Year | 2010 |
| Condition | Used |
| Stock Number | 118196 |
| Machine Control | Fanuc 31i Control |
| Chuck Size | Collet Chuck / Collet Chuck |
| Maximum Swing | 23.6" |
| Maximum Cutting Diameter | 13" |
| Distance Between Spindles | 33.8" |
| X-Axis Travel | 9.84" |
| Y-Axis Travel | 3.94" |
| Z-Axis Travel | 22.8" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3" / 2.6" |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 20 HP |
| Subspindle Nose / Bore / Bar Capacity | A2-5" / 1.77" / 1.5" |
| Subspindle Speed | 6,000 RPM |
| Subspindle Motor | 10 HP |
| Milling Spindle Speed | 6,000 RPM |
| Milling Spindle Motor | 5 HP |

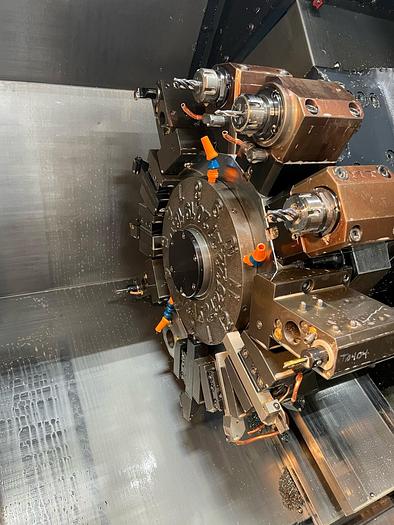

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates (X, Y, Z) | 788 IPM / 296 IPM / 945 IPM |
| Machine Dimensions LxWxH | 123" x 77" x 84" |
| Machine Weight | 11,000 lbs |
