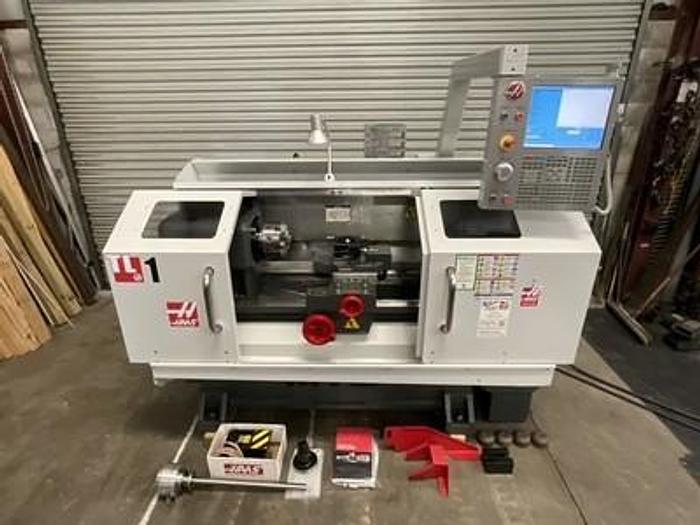

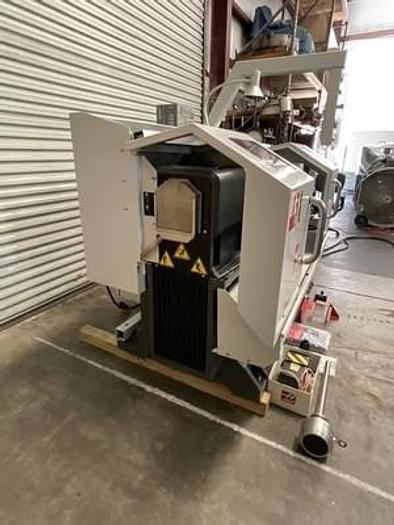

2011 Haas TL-1
No longer available
2011 Haas TL-1
$37,500 (USD)
Location:Florida
Description

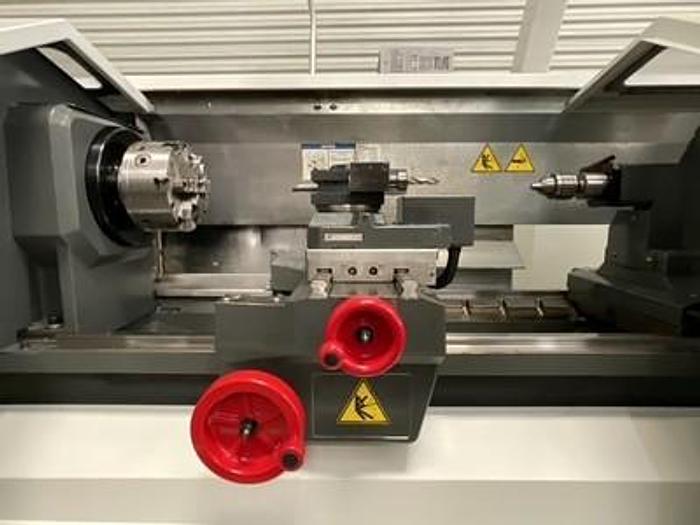

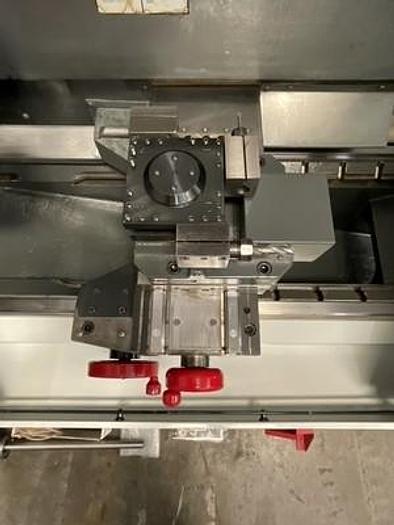

4 Way Indexable Turret 8" 3 Jaw Manual Chuck

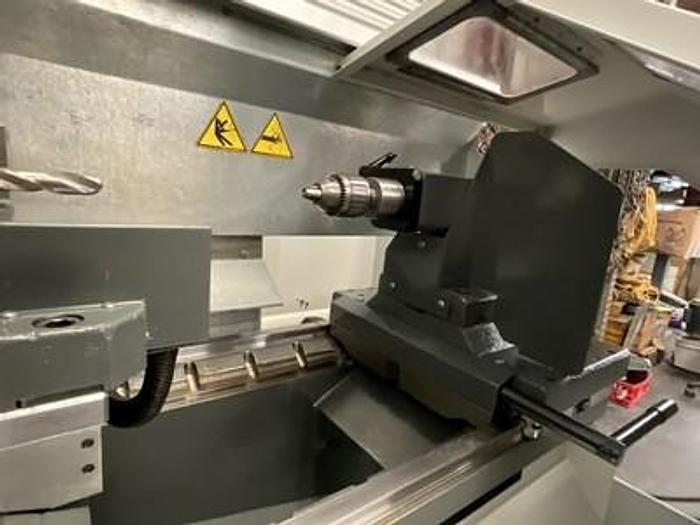

Tailstock
Visual Quick Code Programming
Haas Intuitive Programming System

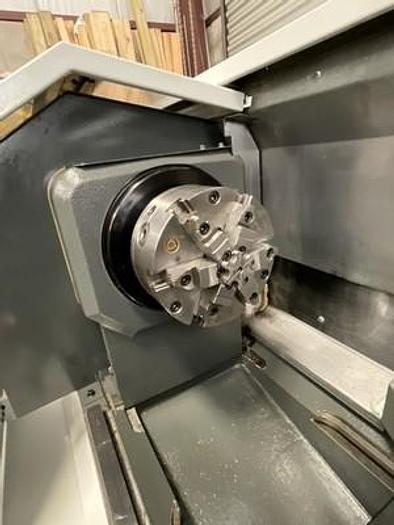

Bison 8” 6 Jaw Chuck “SET-TRU”

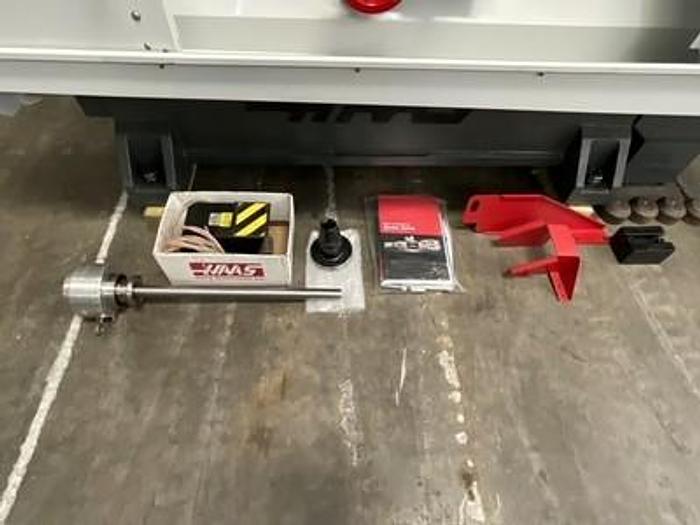

New Royal 5C Collet Nose
Royal Drawbar & Foot Pedal
Barfeed Interface Coolant Pump System with Pump Integral Chip-Flow Channel Full Enclosure Doors 1 MB Program Memory Manual Handwheels

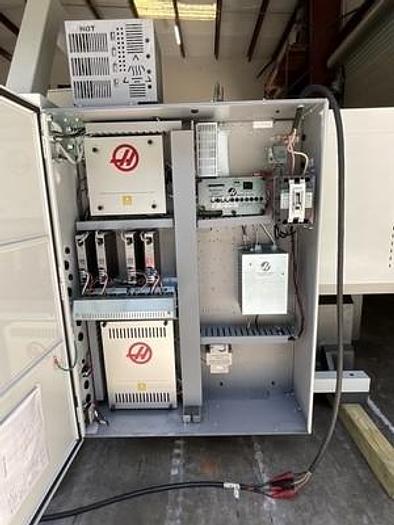

USB Port Interface RS 232 Port Interface Vector Drive Spindle Wired 208/240V 3 Phase Power
Shipping Brackets & Leveling Pads
Manufactured New in September of 2011
Run Hours 2,733
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118194 |
| Control | Haas 32 BIT |
| Chuck Size | 8" 6 Jaw Chuck |
| Maximum Swing over Bed | 20" |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Station Turret |
| Rapid Traverse Rates X/Z | 400 IPM / 400 IPM |
| Machine Dimensions | 92" x 69" x 83" |
| Machine Weight | 5,000 lbs. |
