2007 Romi M20
No longer available
2007 Romi M20
Location:Colorado
Description

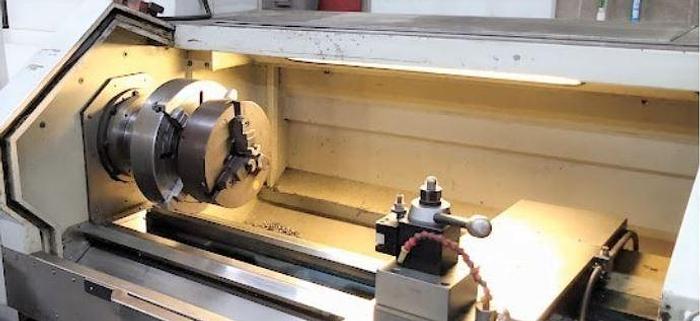

12" 3-Jaw Manual Chuck
Conversational Programming
Variable Speed Spindle Motor

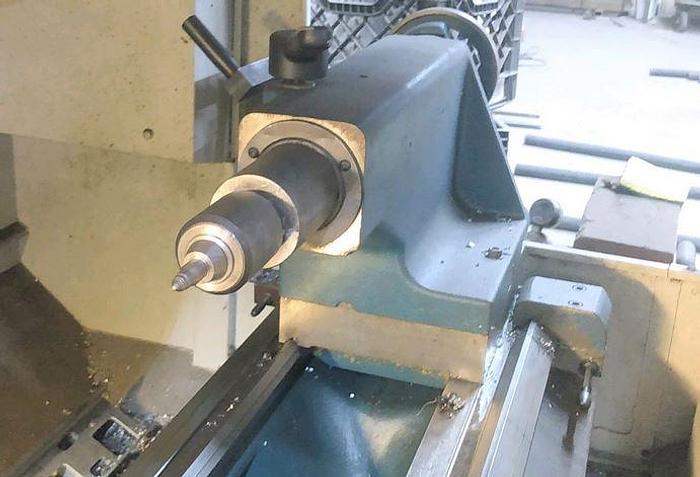

Tailstock
Coolant System

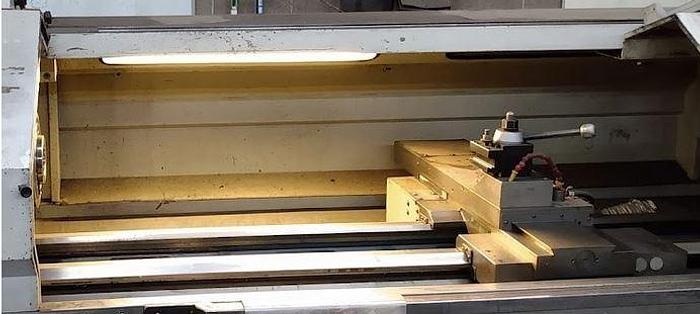

(8) OD Tool Holders
(4) ID Tool Holders
**Original Owner**
Cut Primarily 4130, 4140 and Aluminum
Specifications
| Manufacturer | Romi |
| Model | M20 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118193 |

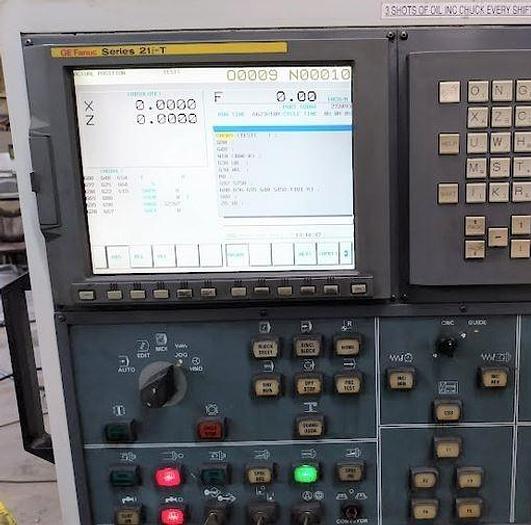

| Machine Control | Fanuc 21i-T |
| Chuck Size | 12" |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 10" |
| Distance Between Centers | 80" |
| X-Axis Travel | 11.02" |
| Z-Axis Travel | 80" |
| Number of Tool Positions | 4 Position Tool Post |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.15" / 3.15" |
| Spindle Speed | 2-2,200 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates X / Z | 394 IPM / 295 IPM |
| Machine Dimensions LxWxH | 136"x53"x80" |
| Machine Weight | 8,300 lbs |
