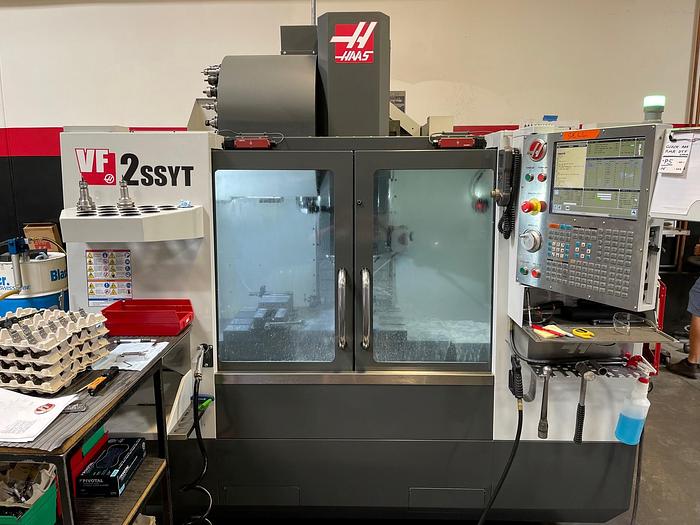

2015 Haas VF2SS YT
No longer available
2015 Haas VF2SS YT
California
Description
Haas TRT100 2 Axis Trunnion Rotary Table
4th Axis Drive
5th Axis Drive
Haas Wireless Probing Tool & Part Probing - Renishaw
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Part Programming System
24 Station Side Mounted Tool Changer
Auger Style Chip Conveyor
Remote Jog Handle
Programmable Coolant Nozzle
Rigid Tapping
Early Power Failure Detection Module
Coolant System with Tank & Pump
USB Port Interface
RS 232C Port Interface for DNC Operation
**Approximately 12,000 Spindle Run Hours
**Price equivalent today as equipped at $ 130,660 with lengthy delay in shipping
**2015 Haas VF2SS available from same facility equipped the same way
Specifications
Manufacturer | Haas |
Model | VF2SS YT |
Year | 2015 |
Condition | Used |
Stock Number | 118192 |
Pallet Size / Number of Pallets | 36" x 18" |
Max table load | 1,500 lbs |
X axis travel | 30" |
Y axis travel | 20" |
Z axis travel | 20" |
Spindle taper | CAT #40 |
Spindle speed | 12,000 RPM |
Spindle motor | 30 HP - Direct Drive |
Spindle nose to table top | 4" - 24" |
Number of tool positions | 24 + 1 Position Side Mount |
Max tool weight | 12 lbs. |
Rapid feed rate (x,y,z) | 1,400 IPM |
Cutting feed rate | 0.1 - 833 IPM |
Machine dimensions | 106" x 101" x 101 " |
Machine weight (approximately) | 9,500 lbs. |
