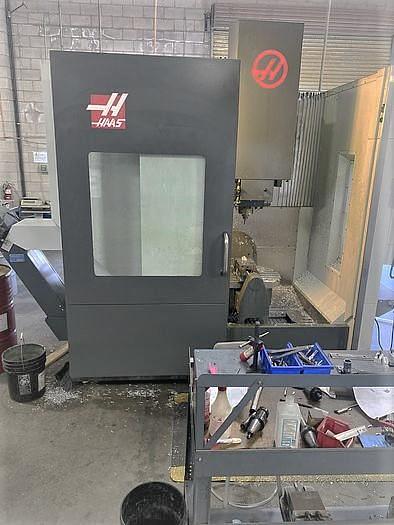

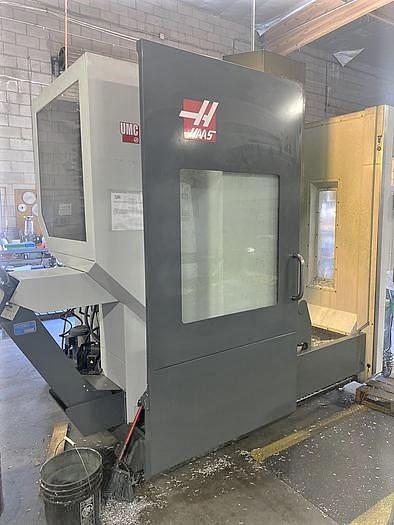

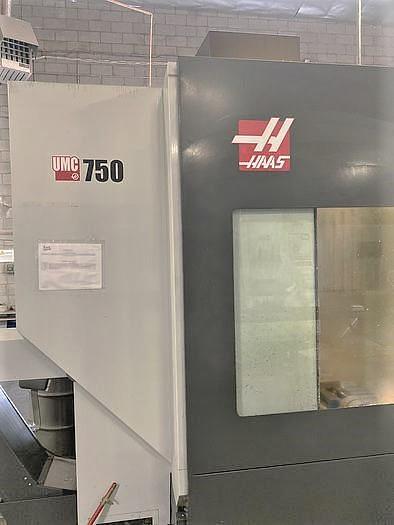

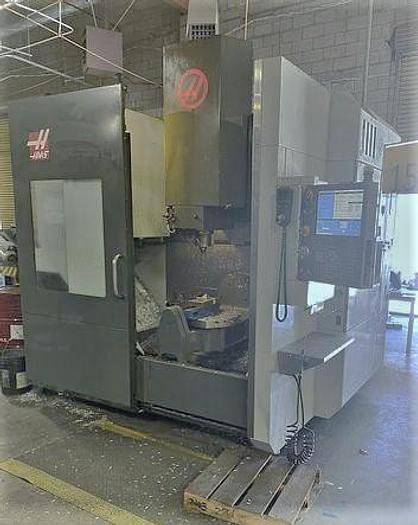

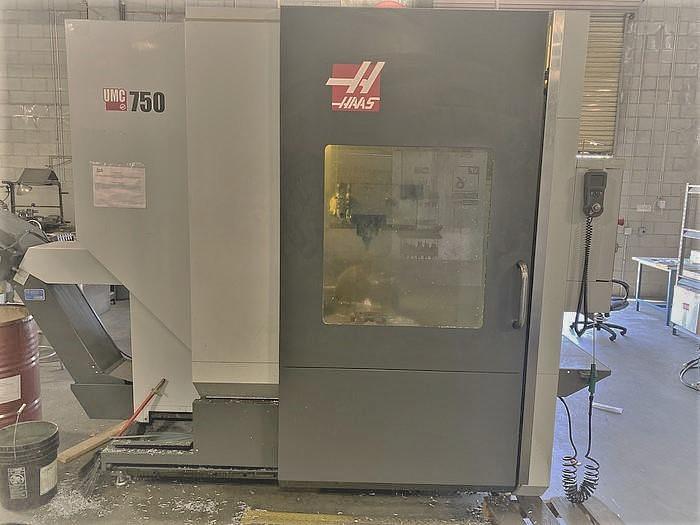

2014 Haas UMC-750
No longer available
2014 Haas UMC-750
$99,950 (USD)
California
Description
12,000 RPM Spindle Option
40 Station Tool Changer
Haas Wireless Intuitive Probing System
High Pressure Coolant Through the Spindle
Programmable Coolant Nozzle
Remote Jog Handle

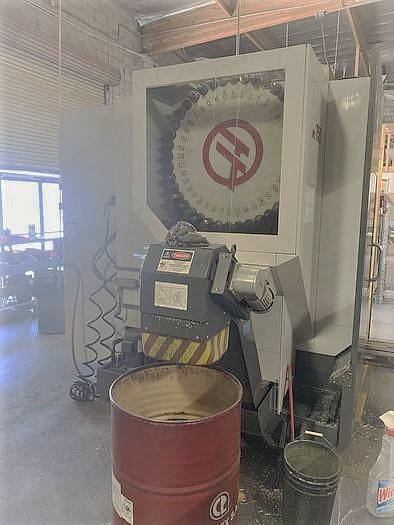

Chip Conveyor
High Speed Machining
Rigid Tapping
2nd Home Position
Expanded Programming Memory
Early Power Failure Detection Module

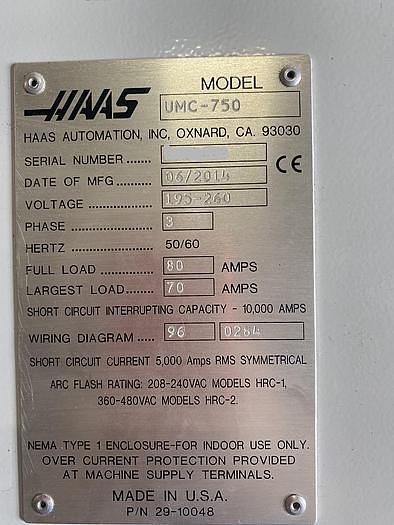

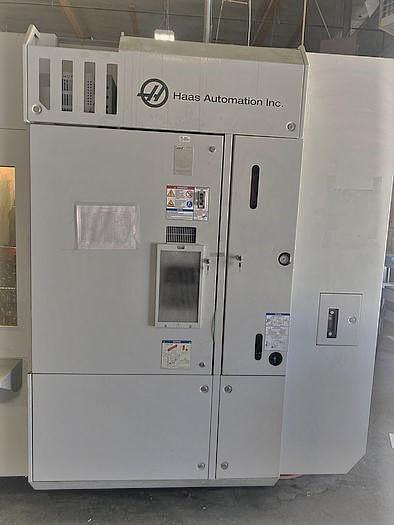

Wired 195-260V Electrics
New in June of 2014
Specifications
Manufacturer | Haas |
Model | UMC-750 |
Year | 2014 |
Condition | Used |
Stock Number | 118253 |
Table size | 19.7" Diameter |
Table load capacity | 660 lbs |
X axis travel | 30" |
Y axis travel | 20" |
Z axis travel | 20" |
B axis rotate of trunnion | 110 Deg to -35 Deg |
C axis table rotation | 360 Degrees |
Spindle taper | CAT #40 |
Spindle speed | 12,000 RPM Option |
Spindle motor | 30 HP |
Tool magazine | 40 +1 Position ATC |
Maximum feed rates | 650 IPM |
Rapid traverse rates | 1200 IPM |
Machine dimensions | 157"x94"x101" |
Machine weight | 19,100 lbs |
