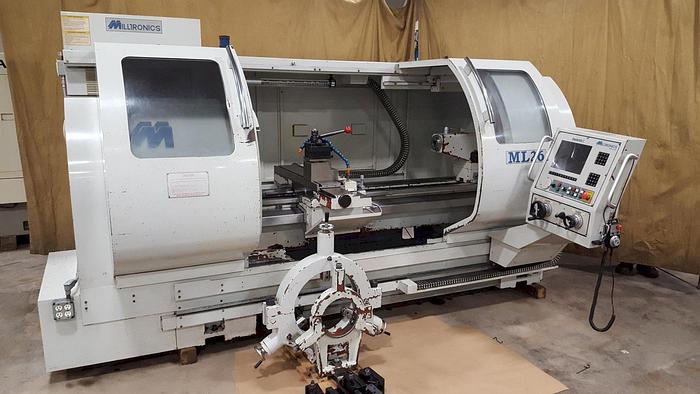

2006 Milltronics ML-26/60
No longer available
2006 Milltronics ML-26/60
$26,500 (USD)
Location:Illinois
Description

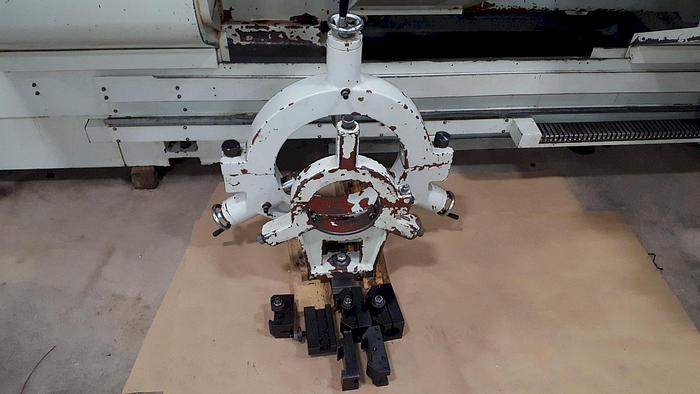

Two Steady Rest

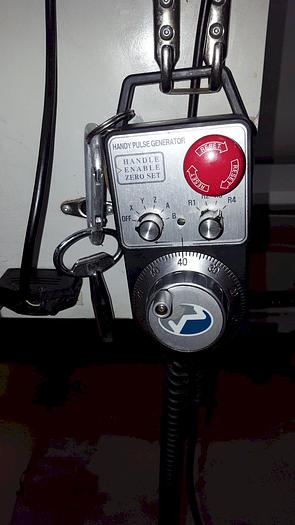

Jog Handle
Coolant System
All Available Manuals
Made in the USA
Specifications
| Manufacturer | Milltronics |
| Model | ML-26/60 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118190 |

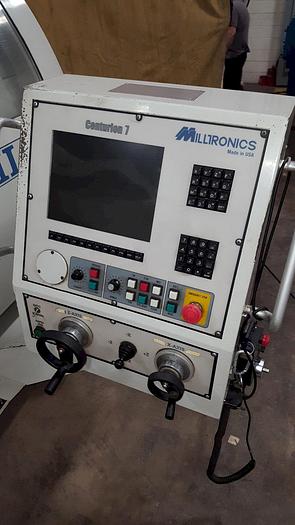

| Machine Control | Centurion 7 |
| Chuck Size | 15" 4-Jaw Manual |
| Maximum Swing over Bed | 27" |
| Swing over Gap | 35" |
| Maximum Swing Over Cross Slide | 16.1" |
| X-Axis Travel | 16" |
| Z-Axis Travel | 63" |
| Maximum cutting length | 59.5" |
| Number of Tool Positions | 4 Position Tool Post |
| Maximum Weight of Part with Chuck & Supported with the Center | 2,850 lbs |
| Maximum Weight of Part between Centers with Steady Rest | 4,850 lbs |
| Spindle Motor | 18/12 HP |

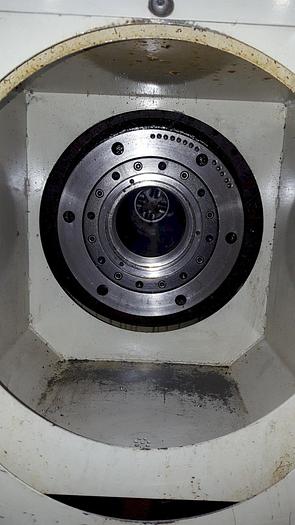

| Spindle Bore | 4.17" |
| Spindle Speeds | 30-1,600 rpm |

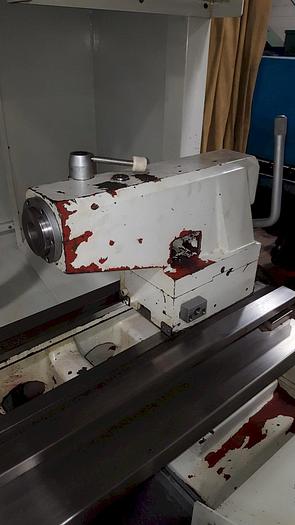

| Tailstock Quill Diameter / Quill Travel / Taper | 3.94" / 6" / #5MT |
| Machine Dimensions LxWxH | 158"x94"x60" |
| Machine Weight | Aprx 9,500 lbs |
