2013 DMG Mori NHX5500
No longer available
2013 DMG Mori NHX5500
$159,500 (USD)
Alberta, Canada
Description
2 Pallet Changer System Full 4th Axis Rotary Table Coolant Through the Spindle - High Pressure Flood Coolant Chip Conveyor Rigid Tapping
Robot Interface
USB Port Interface All Available Manuals

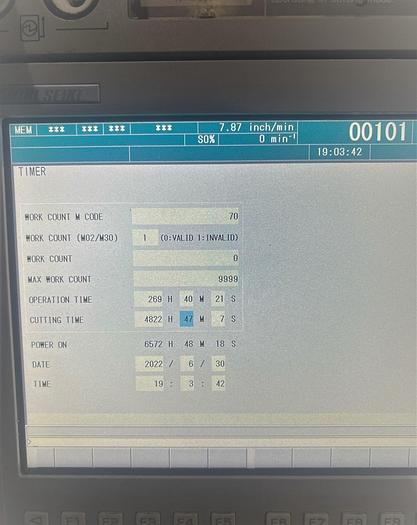

Power On Hours 6,572
Cutting Hours 4,822
*There is some noise in Y axis ballscrew
Specifications
| Manufacturer | DMG Mori |
| Model | NHX5500 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 118184 |

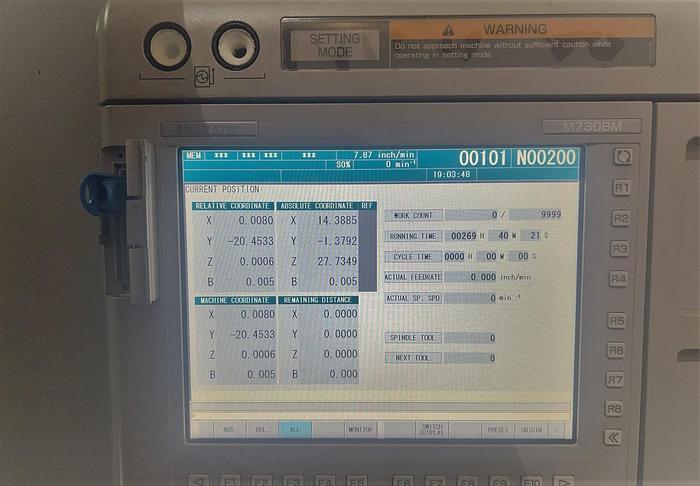

| Machine Control | Mitsubishi M730BM |
| Pallet Size / Number of Pallets | 19.7" x 19.7" / 2 Pallets |
| Pallet Indexing | .001 Degrees |
| Maximum Table Load | 2,204 lbs |
| X-Axis Travel | 31.5" |
| Y-Axis Travel | 31.5" |
| Z-Axis Travel | 34.6" |
| Spindle Nose | HSK-63 |
| Spindle Speed | 20,000 RPM |
| Spindle Motor | 40 HP |
| Tool Magazine Capacity | 60 Station Tool Changer |
| Rapid Traverse Rates | 2,362 IPM |
| Machine Dimensions LxWxH | 215" x 132" x 122" |
| Machine Weight | 33,000 lbs |
