2000 Haas VF-6/40
No longer available
2000 Haas VF-6/40
$29,500 (USD)
Texas
Description
Programmable Coolant Nozzle
1 MB Program Memory
Visual Quick Code Programming
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
4th Axis Drive/Wiring

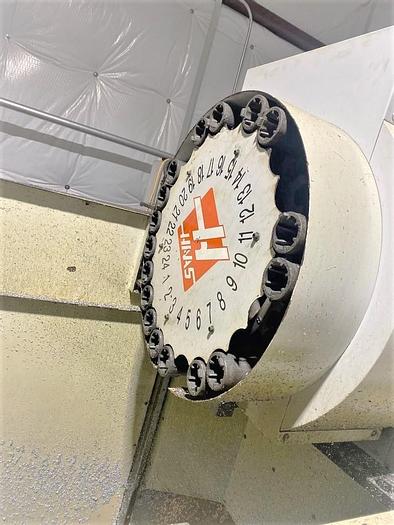

24 Station Side Mounted Tool Changer (needs 7 pods replaced)
Chip Auger Style Conveyor
Rigid Tapping
Remote Jog Handle
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
208/230V 3-Phase Power

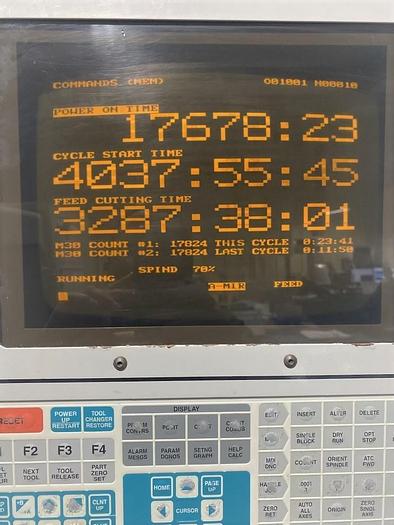

4037 Cycle Start Hours
3287 Feed Cutting Hours
*This machine has a number of tool pods in the ATC that are damaged and are in need of repair. Client is selling as is. Though ATC works, over the years from time to time it was damaging pods, so client has been changing tools manually in order to do no further damage.
Specifications
| Manufacturer | Haas |
| Model | VF-6/40 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 118181 |
| Machine Control | Haas CNC Control |
| Table size | 64" x 28" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 64" |
| Y-Axis Travel | 32" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 HP |
| Spindle Speeds | 7,500 RPM |
| Spindle Torque | 450 ft lbs |
| Distance Spindle Nose to Table Top | 5" - 35" |
| Tool Magazine Capacity | 24 Station ATC (needs 7 pods replaced) |
| Rapid Traverse Rates X, Y / Z | 540 IPM / 600 IPM |
| Machine Dimensions LxWxH | 156"x123"x129" |
| Machine Weight | 21,000 lbs |
