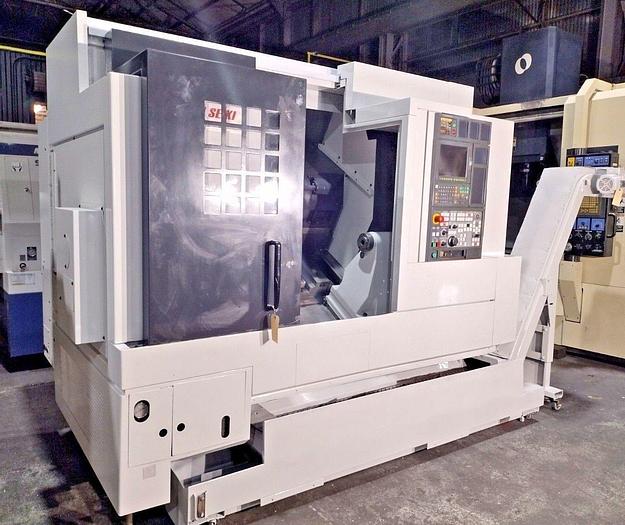

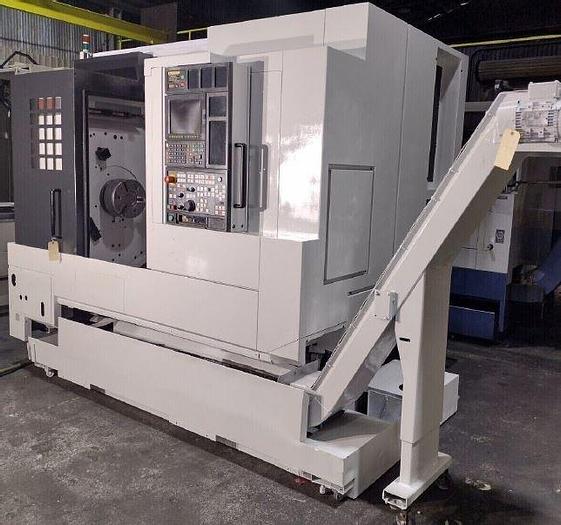

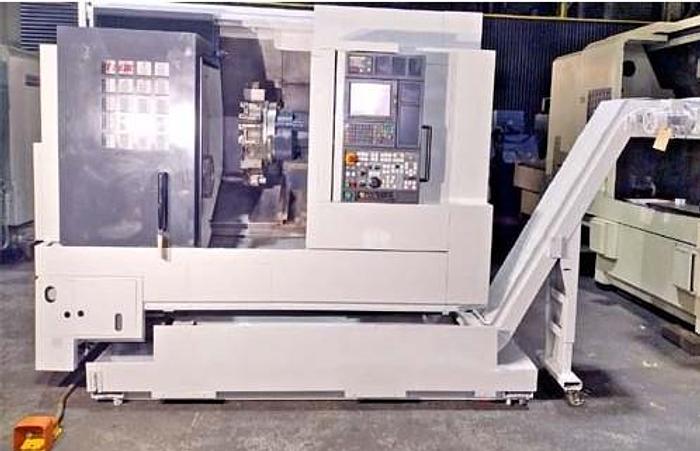

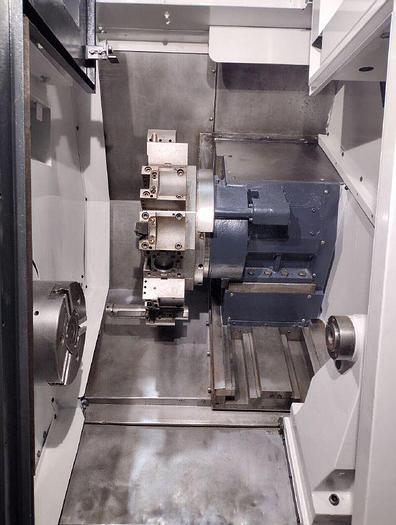

2006 Mori Seiki NL-2000/500
2006 Mori Seiki NL-2000/500
Contact us for price
Texas
orCall (863) 439-6066
Description

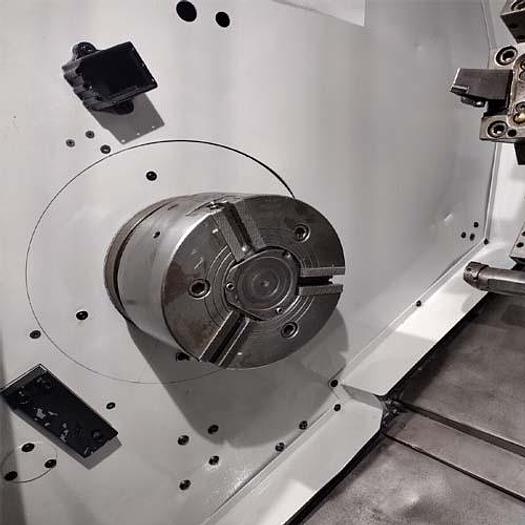

10" Hydraulic 3-Jaw
30 HP Gearbox
Rigid Tapping
PCMCIA Card Slot
RS-232 Port

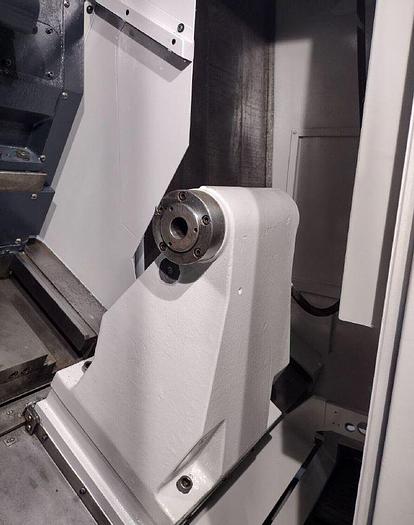

Programmable Tailstock
Chip Conveyor
220V
Mfg Date 11/2005
All Available Manuals
Specifications
| Manufacturer | Mori Seiki |
| Model | NL-2000/500 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118167 |
| Machine Control | Fanuc MSX-850 III |
| Chuck Size | 10" |
| Maximum Swing | 22.8" |
| Maximum Cutting Diameter | 14" |
| Maximum Turning Length | 20" |
| X-Axis Travel | 10.2" |
| Z-Axis Travel | 23.2" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6/ 2.9" / 2.5" |
| Spindle Speed | 5,000 rpm |
| Spindle Motor | 30 hp |
| Number of Turret Positions | 12 |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 7.5 hp |
| Rapid Traverse Rates | 1181 ipm |
| Tailstock Bore Taper | #3 MT |
| Machine Dimensions LxWxH | 107"x76"x84" |
| Machine Weight | 11,880 lbs |
