2012 Haas ST-40 with Live Milling Capability
No longer available
2012 Haas ST-40 with Live Milling Capability
$142,950 (USD)
Location:Michigan
Description
Full C Axis Spindle Rotation
High Torque Live Milling/Drilling Capability
Extended Tool Pocket

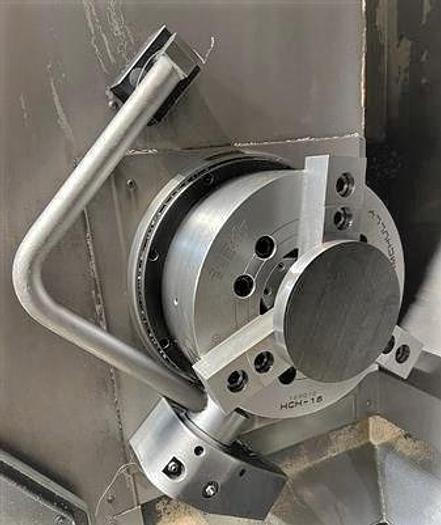

15" 3 Jaw Hydraulic Chuck

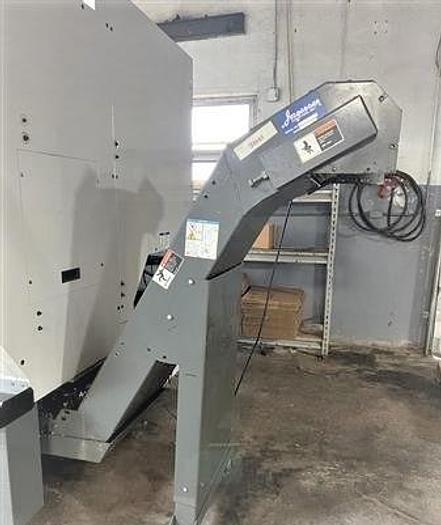

Chip Conveyor - Belt Style
Tool Presetter
Remote Jog Handle Extra Performance Package with 55 HP Spindle Motor
High Intensity Lighting Programmable Tailstock
300 PSI High Pressure Coolant

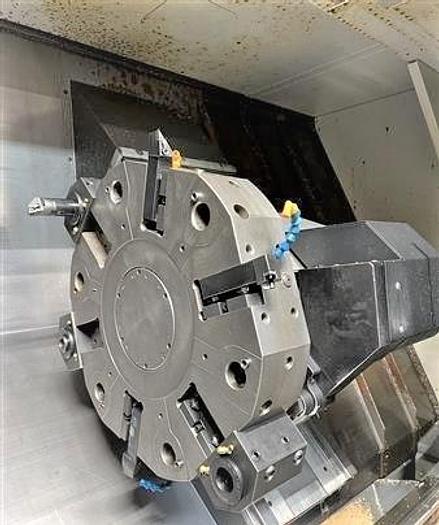

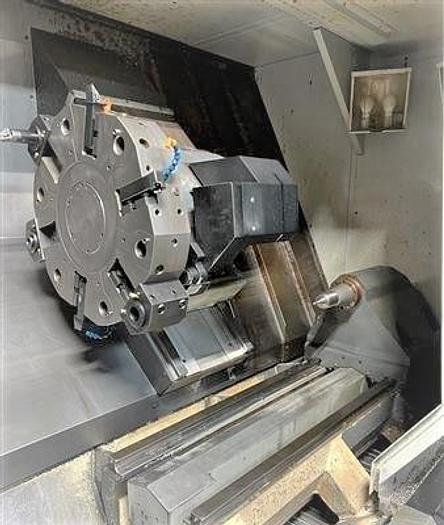

Hybrid VDI/BOT Turret 2 Speed Geared Headstock RS 232 Port Interface Rigid Tapping 15" Color LCD Monitor
(3) Straight Live Tool Holders
(2) Right Angle Live Tool Holders
All Available Static Tooling
Wired 195/260V Electric
Specifications
| Manufacturer | Haas |
| Model | ST-40 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 118164 |

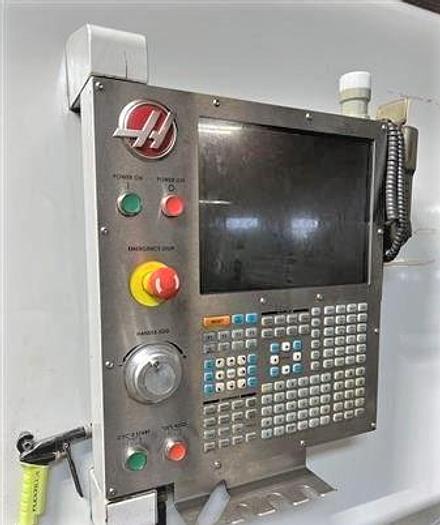

| Control | Haas 32 BIT |
| Chuck Size | 15" 3-Jaw |
| Maximum Swing | 34.5" |
| Maximum Swing Over Cross Slide | 25.5" |
| Distance Between Centers | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 4.62" / 4" |
| Spindle Speed | 2,400 RPM |
| Spindle Motor | 55 HP |
| Milling Spindle Speed | 6,000 RPM |
| Number of Turret Positions | 12 Position Hybrid Turret |
| Rapid Traverse Rates | 710 IPM |

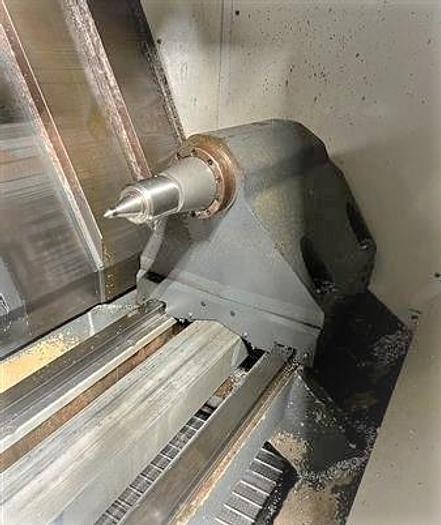

| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 217" x 94" x 105" |
| Machine Weight | 27,000 lbs |
