2018 YCM TC-16LA
No longer available
2018 YCM TC-16LA
$65,000 (USD)
North Carolina
Description

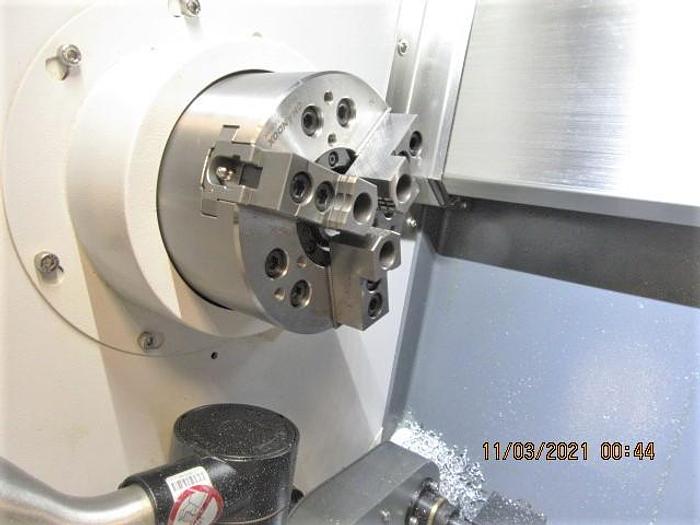

8" 3 Jaw Hydraulic Chuck

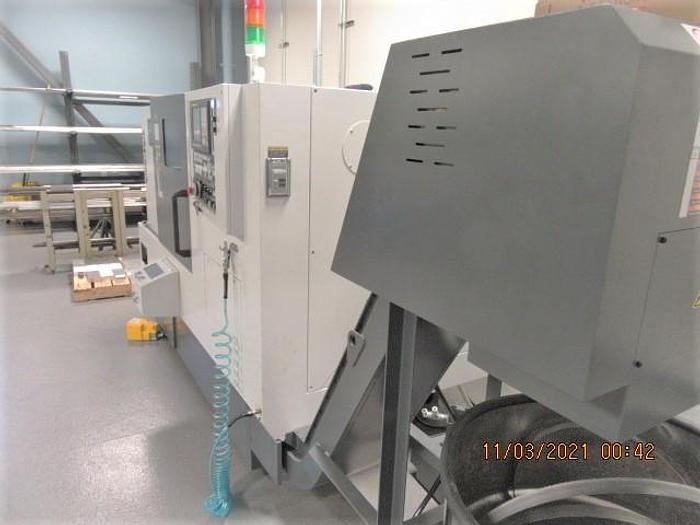

Chip Conveyor

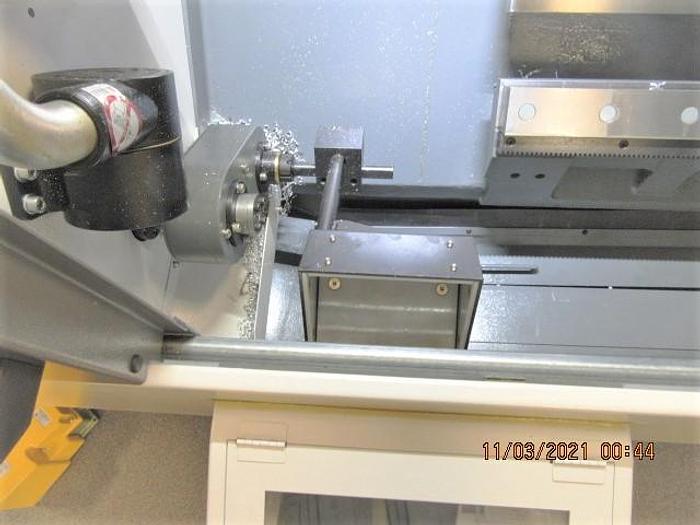

Parts Catcher
Tailstock
Tool Presetter

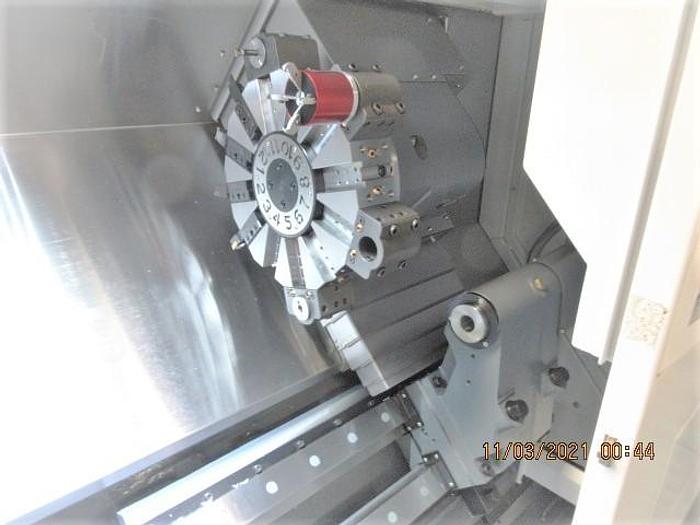

12 Position Turret
Foot Pedal
Coolant Tank with Pump
Servo Type Turret
Linear Guide Rail Design
One Piece 45 Degree Slant Bed
All Available Manuals
All Available Tool Blocks

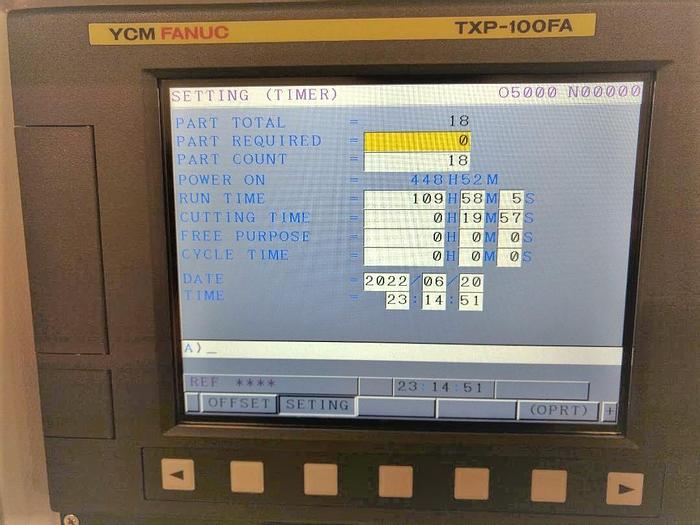

ONLY 448 Power On Hours
ONLY 109 Run Hours
ONLY 20 Minutes of Spindle Time
**Built New in August 2018, Installed at Tech School in 2019, Rarely Ever Used !!
Specifications
| Manufacturer | YCM |
| Model | TC-16LA |
| Year | 2018 |
| Condition | Used |
| Stock Number | 117958 |

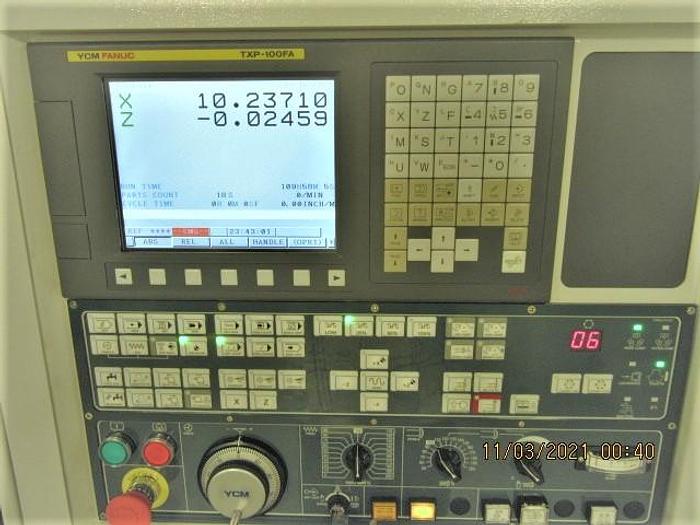

| Machine Control | Fanuc TXP-100FA Control |
| Chuck Size | 8" 3-Jaw Hydraulic |
| Maximum Swing Over Cross Slide | 19.3" |
| Maximum Cutting Diameter | 10.24" |
| Maximum Turning Length | 23.64" |
| Maximum Bar Capacity | 2.04" |
| X-Axis Travel | 5.91" |
| Z-Axis Travel | 23.64" |
| Spindle Nose / Spindle Bore | A2-5" / 2.44" |
| Spindle Speeds | 20 - 5,000 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X / Z | 945 IPM / 1182 IPM |
| Tailstock Quill Stroke / Tailstock Taper | 19.7" / MT #4 |
| Machine Dimensions LxWxH | N/A |
| Machine Weight | 8,140 lbs |
